Installation Procedure

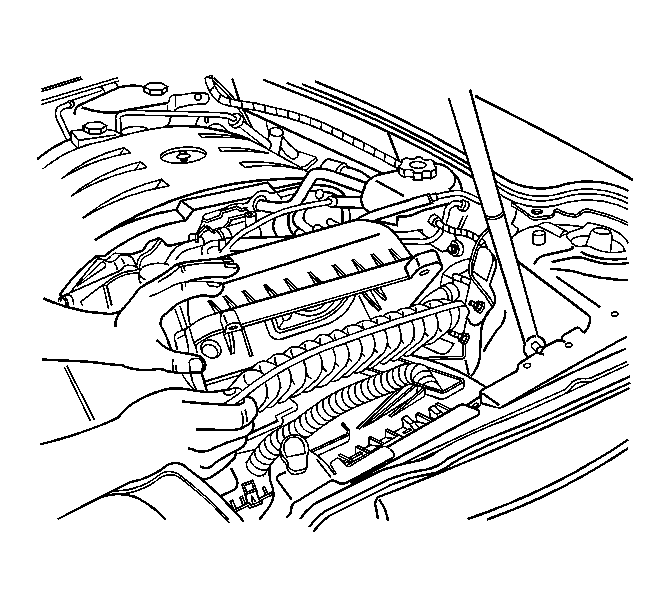

Fig 1: Air Cleaner Element

Courtesy of GENERAL MOTORS CORP.

Install the air filter to the air cleaner.
Close the air cleaner cover. Ensure that the inboard hinges are engaged prior to tightening the screws.

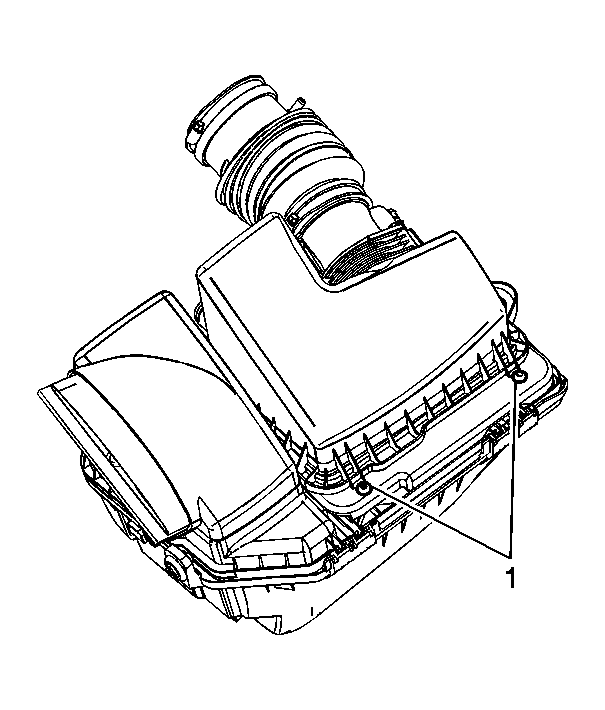

Fig 2: Identifying Air Cleaner Cover Screws

Courtesy of GENERAL MOTORS CORP.

CAUTION: Refer to Fastener Caution .

Tighten the air cleaner cover screws (1).
Tighten: Tighten the screws to 3 N.m (27 lb in).
