Installation Procedure

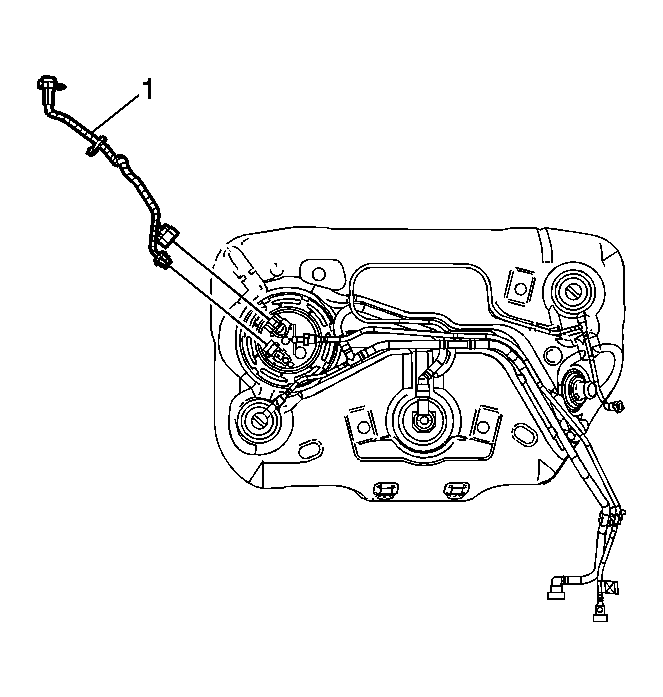

    Fig 1: Identifying Fuel Tank Electrical Harness Connectors
    GM1671759Courtesy of GENERAL MOTORS CORP.
  1. Install the fuel level sensor wiring harness (1).
  2. Connect the fuel level sensor wiring harness electrical connectors to the pressure sensor and module.
  3. Install the fuel tank. Refer to Fuel Tank Replacement .
