Installation Procedure

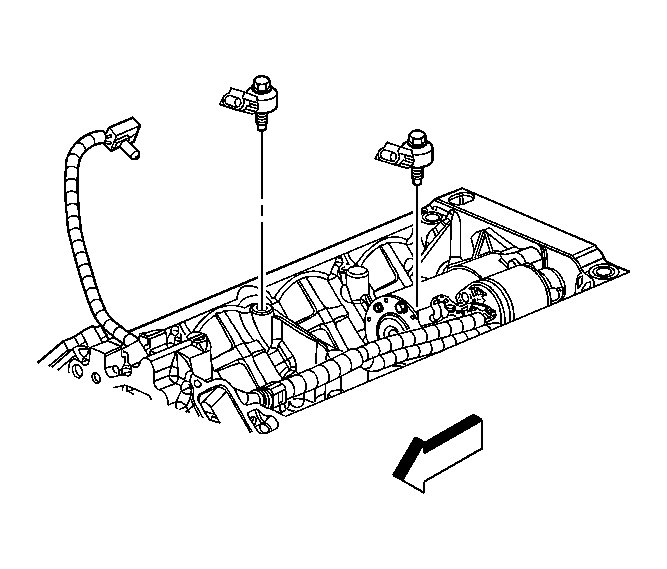

    Fig 1: Knock Sensors
    GM1672563Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  1. Install the appropriate knock sensor.

    Tighten:  Tighten the sensor to 25 N.m (18 lb ft).

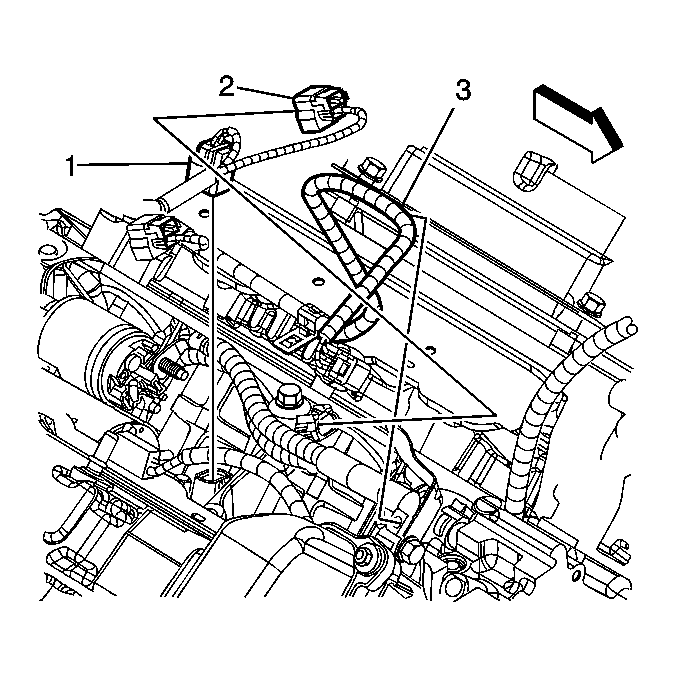

    2. Fig 2: Identifying CKP Sensor Wiring Harness Electrical Connector
    GM1672558Courtesy of GENERAL MOTORS CORP.
  2. Connect the electrical connector (2) to the left knock sensor, if required.

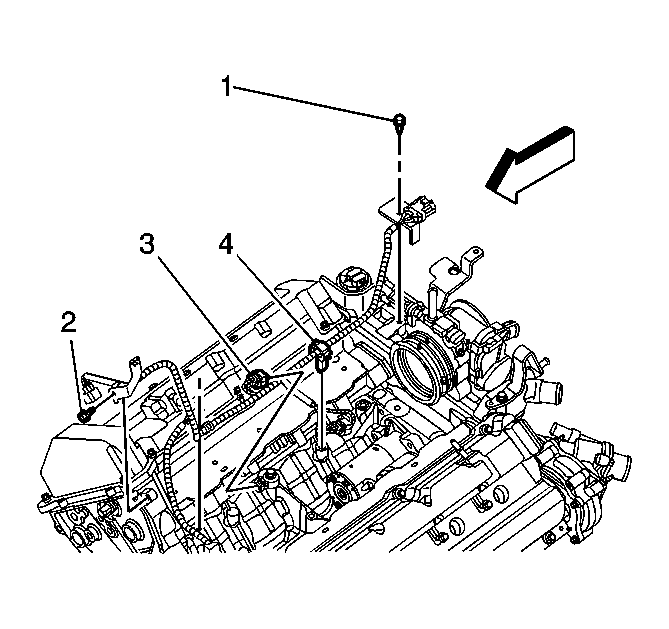

    3. Fig 3: Identifying Electrical Connector
    GM1672557Courtesy of GENERAL MOTORS CORP.
  3. Connect the electrical connector (3) to the right knock sensor, if required.
  4. Install the intake manifold. Refer to Intake Manifold Replacement .
