Installation Procedure

Fig 1: Lubricating Male Pipe End

Courtesy of GENERAL MOTORS CORP.

If servicing the fuel and/or EVAP quick connect fittings perform the following steps. If servicing the AIR pipe/hose quick connect fitting proceed to step 5.
Apply a few drops of clean engine oil to the male connection end.

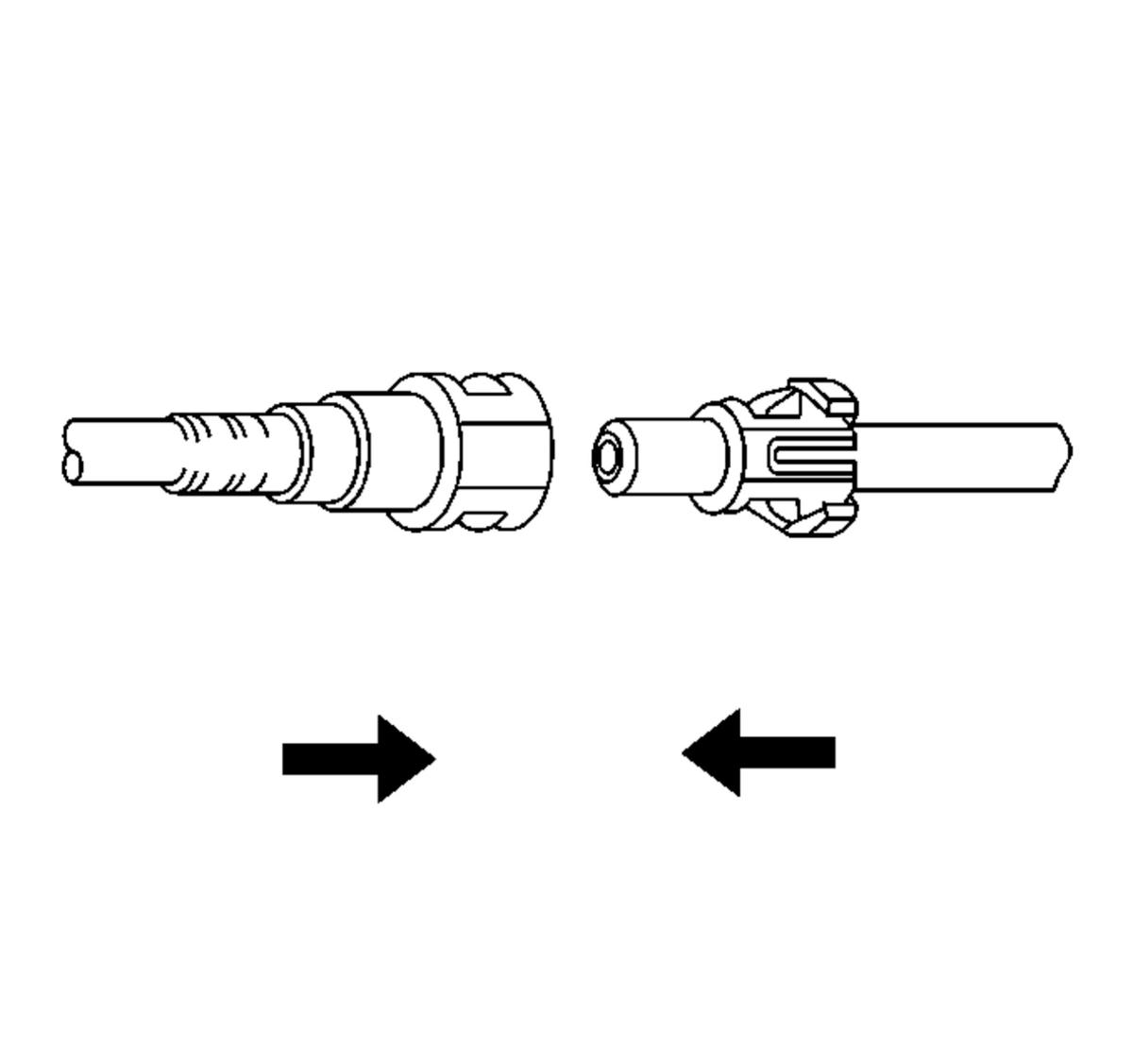

Fig 2: Connecting Fittings (Plastic Collar)

Courtesy of GENERAL MOTORS CORP.

Push both sides of the quick connect fitting together in order to cause the retaining feature to snap into place.

Fig 3: Ensuring Secure Connection (Plastic Collar)

Courtesy of GENERAL MOTORS CORP.

Once installed, pull on both sides of the quick connect fitting in order to make sure the connection is secure.

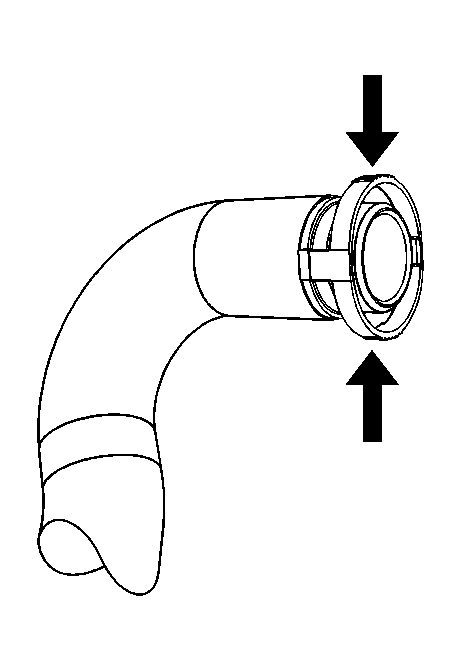

Fig 4: View Of AIR Hose/Pipe Quick Connect Fitting

Courtesy of GENERAL MOTORS CORP.

Push the quick connect fitting on until an audible click is hear, once installed, gently pull on the quick connect fitting in order to make sure the connection is secure.
