Front Park Assist (UFR)
WARNING:
This page is about a different car, the 2011 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

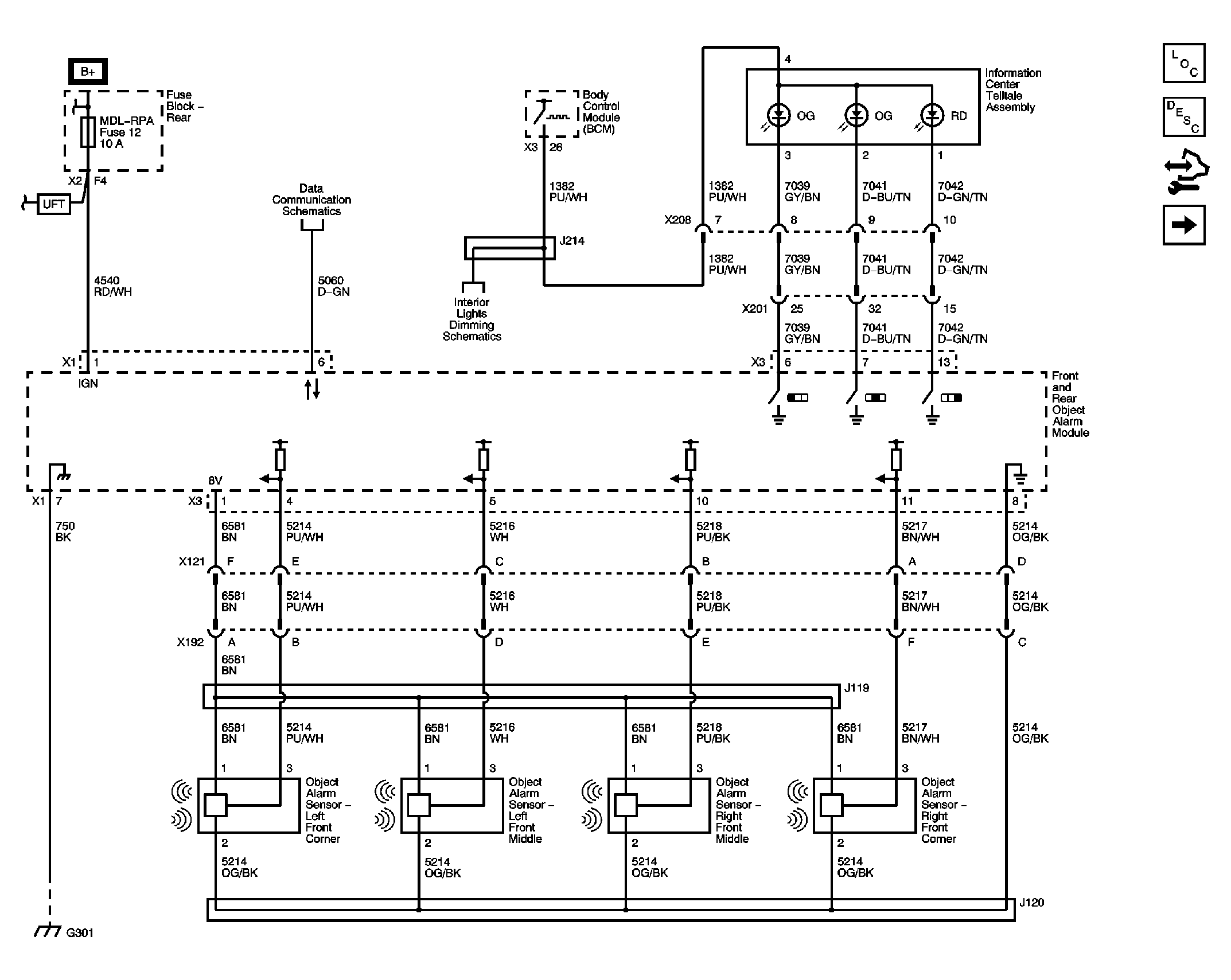

Fig 1: Front Park Assist (UFR) Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
