Antenna Control Module
Component Connector End Views

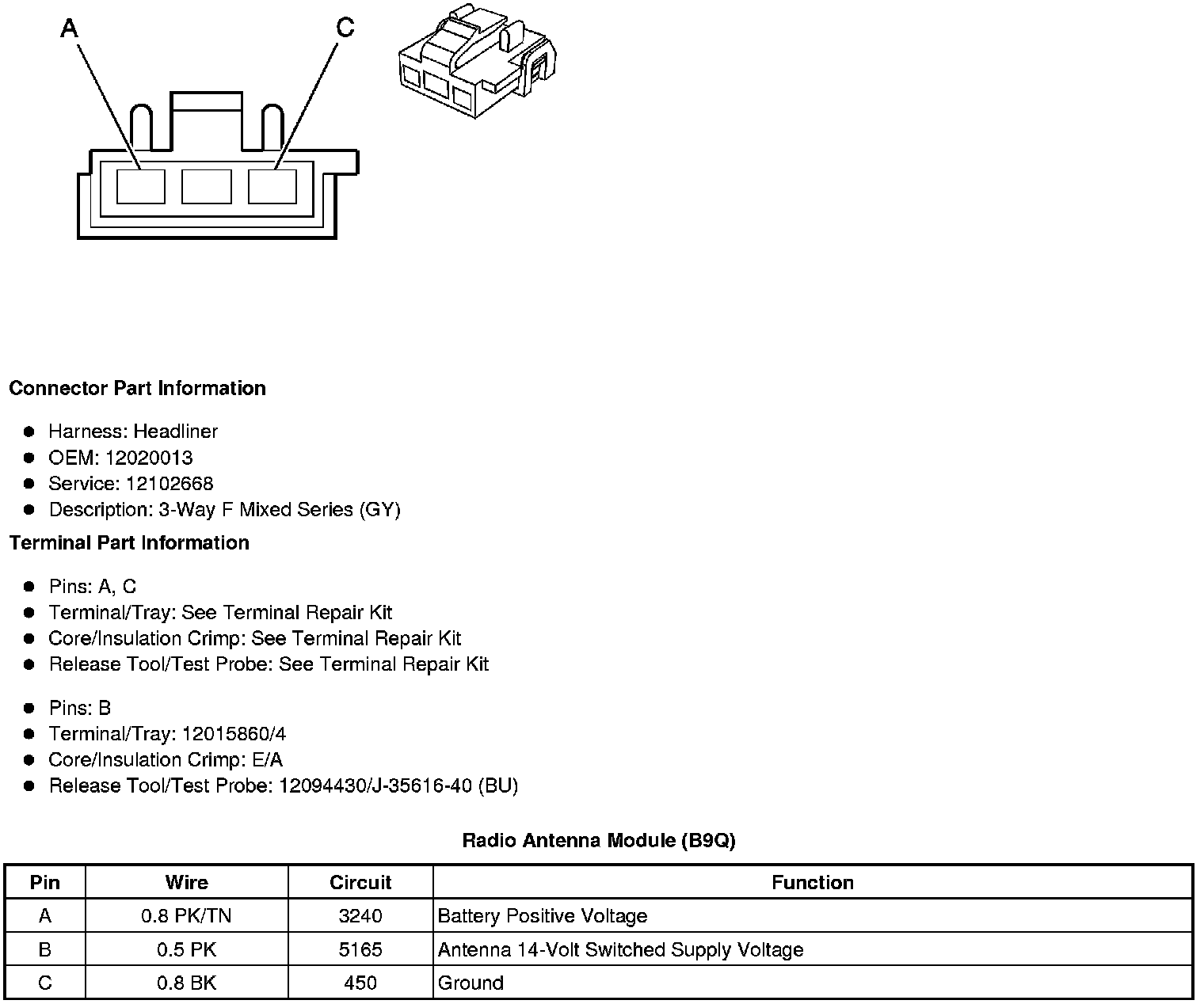

Radio Antenna Module (B9Q)

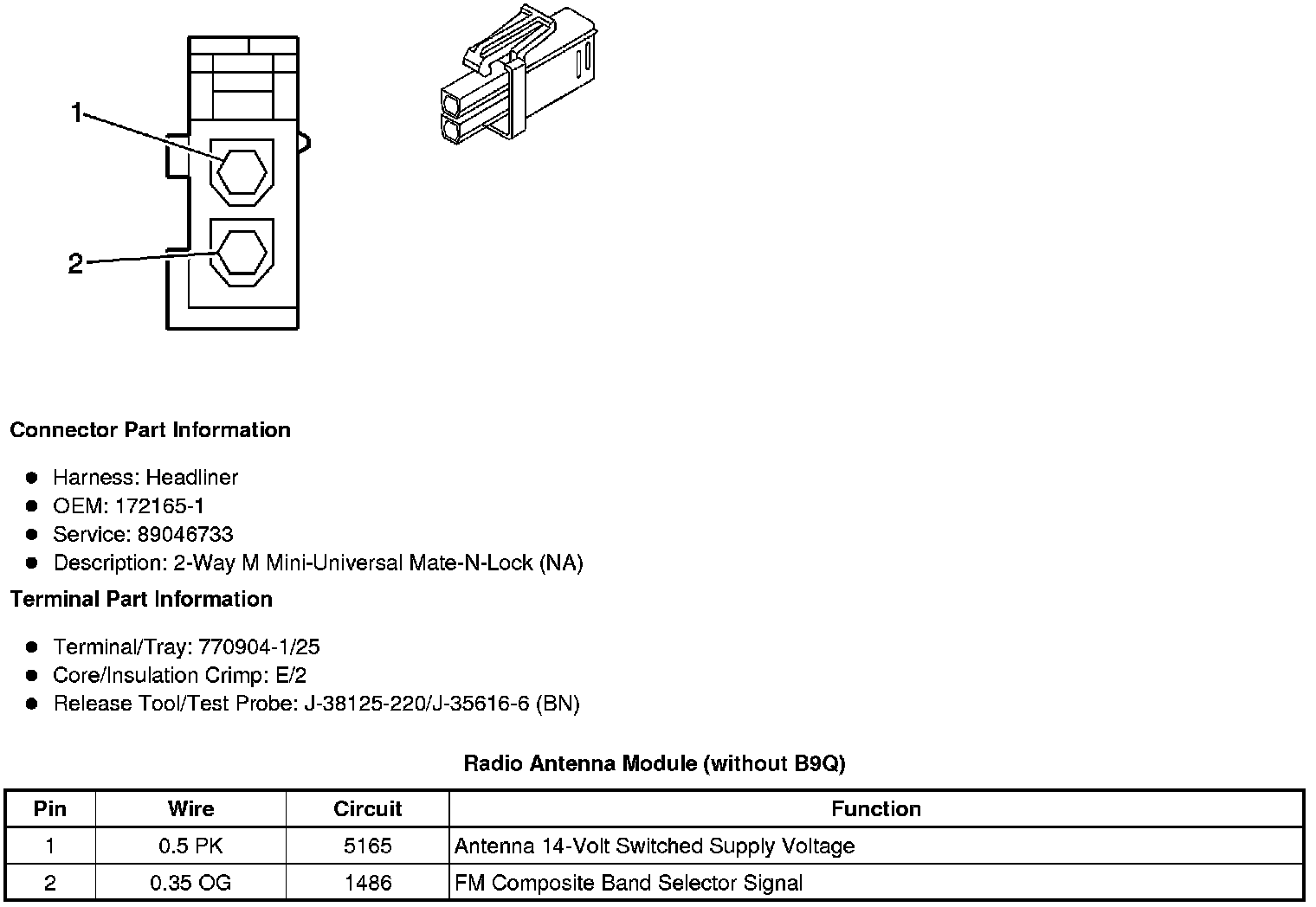

Radio Antenna Module (without B9Q)
