Object Alarm Sensor




Component Connector End Views

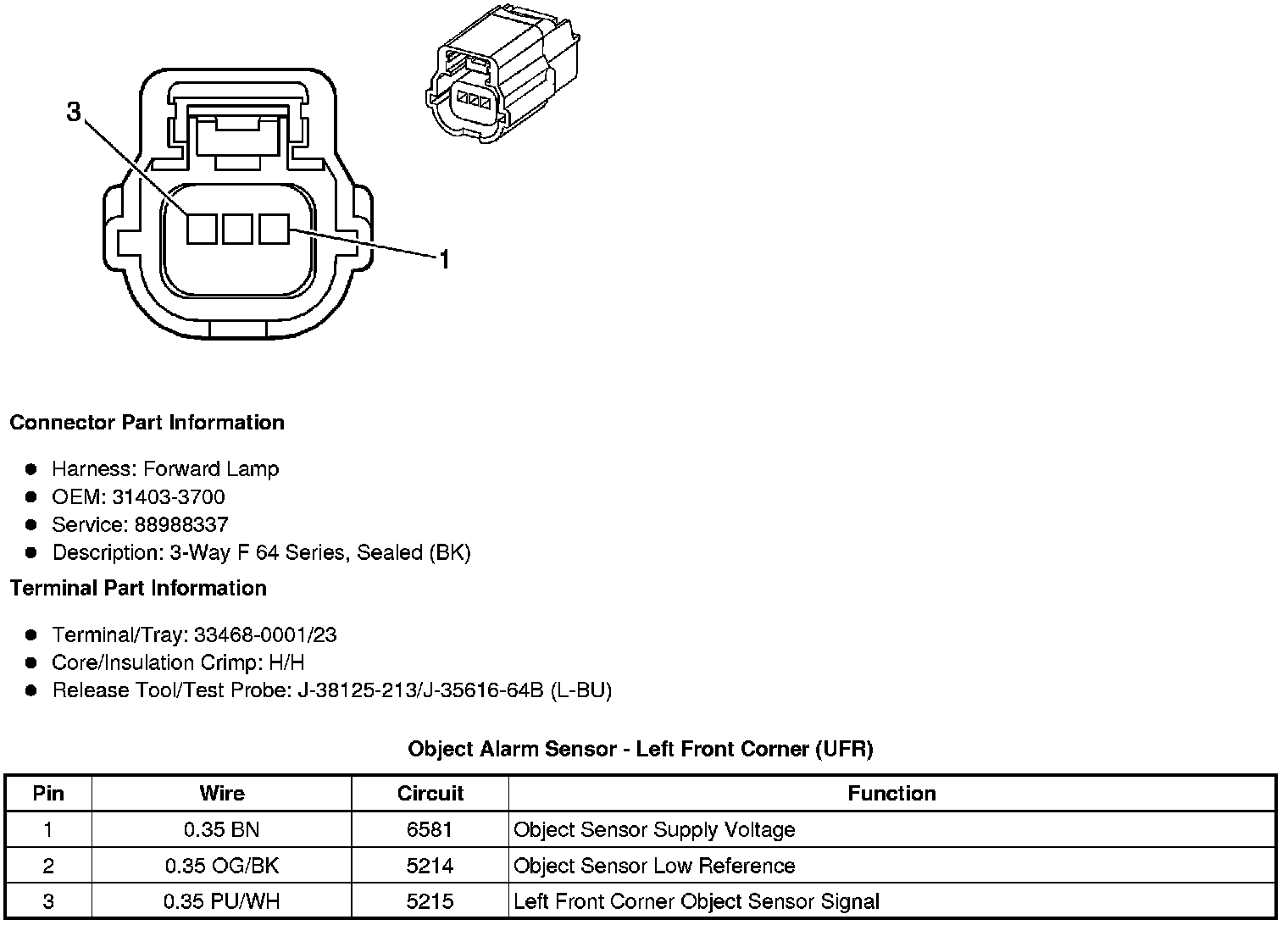

Object Alarm Sensor - Left Front Corner (UFR)

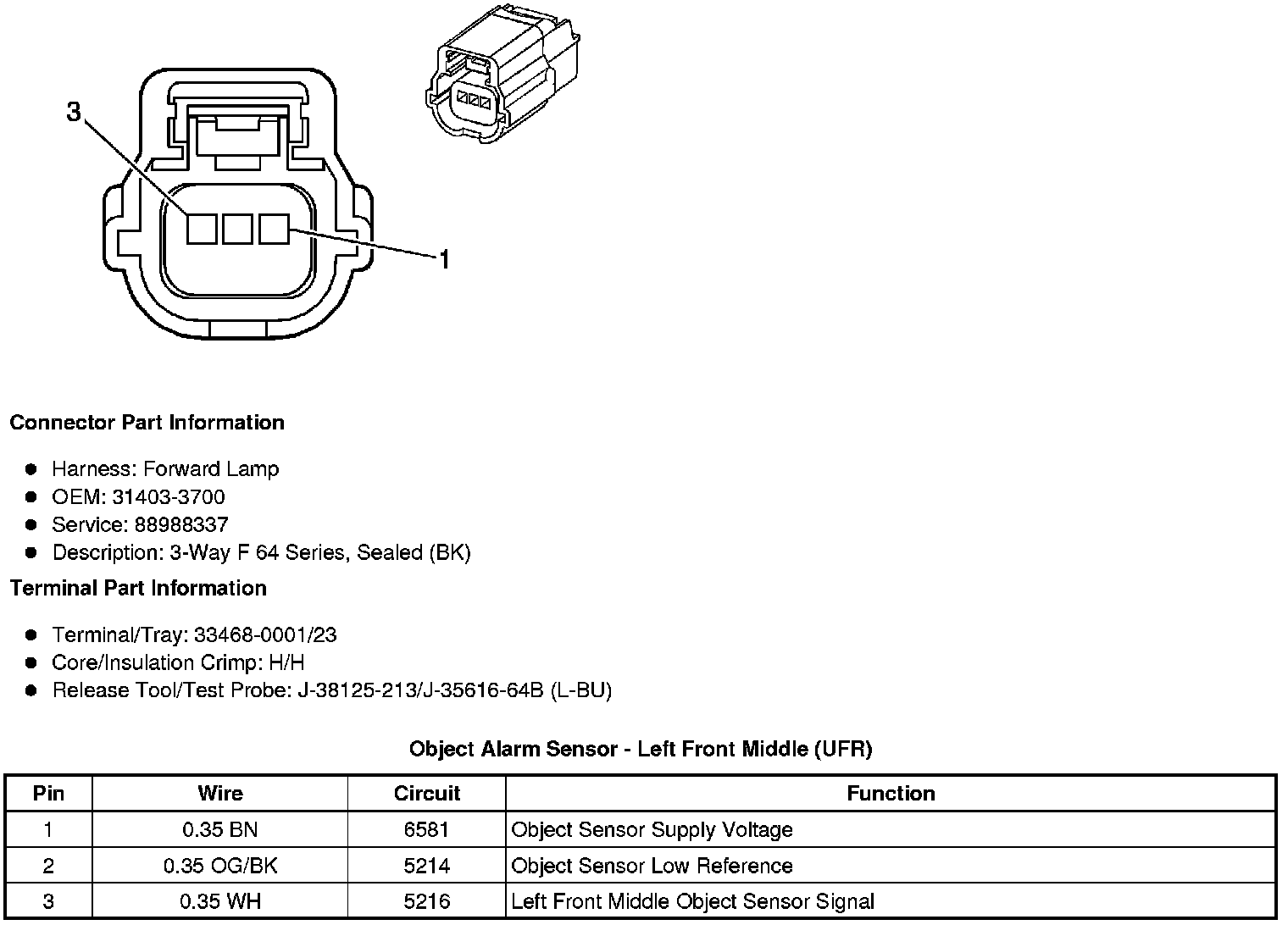

Object Alarm Sensor - Left Front Middle (UFR)

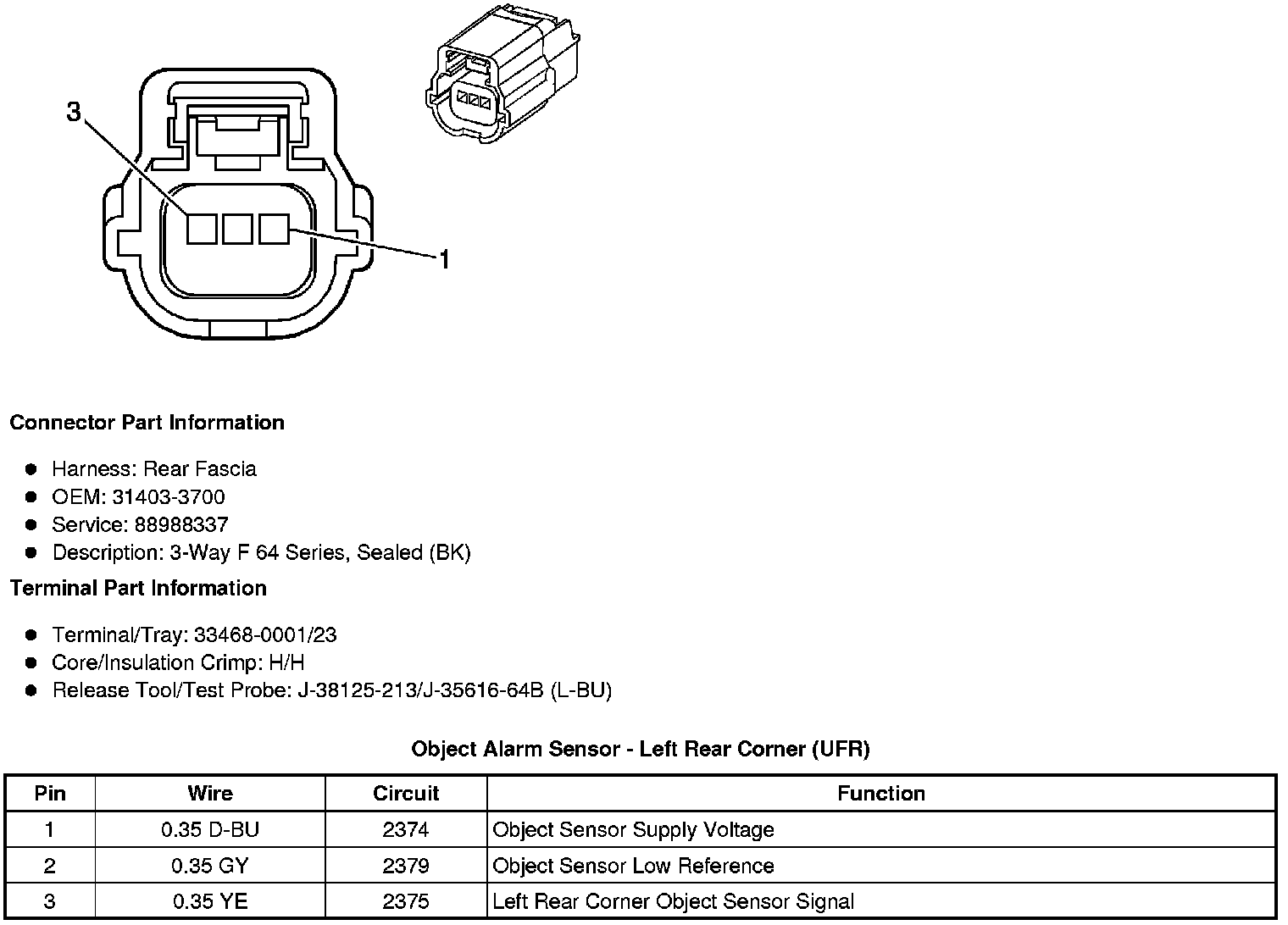

Object Alarm Sensor - Left Rear Corner (UFR)





Object Alarm Sensor - Left Rear Middle (UFR)





Object Alarm Sensor - Right Front Corner (UFR)





Object Alarm Sensor - Right Front Middle (UFR)





Object Alarm Sensor - Right Rear Corner (UFR)





Object Alarm Sensor - Right Rear Middle (UFR)
