Side Object Detection




Component Connector End Views

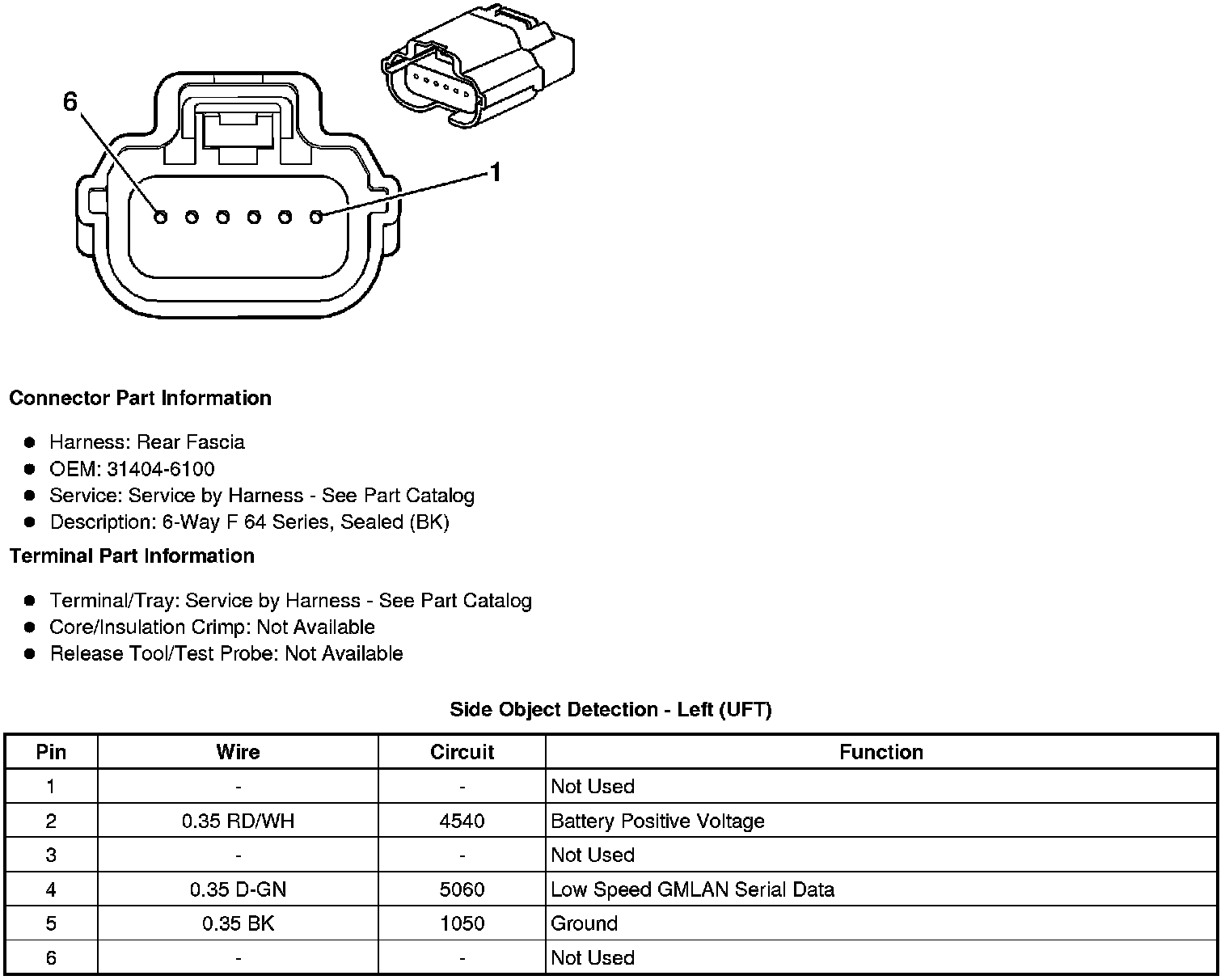

Side Object Detection - Left (UFT)

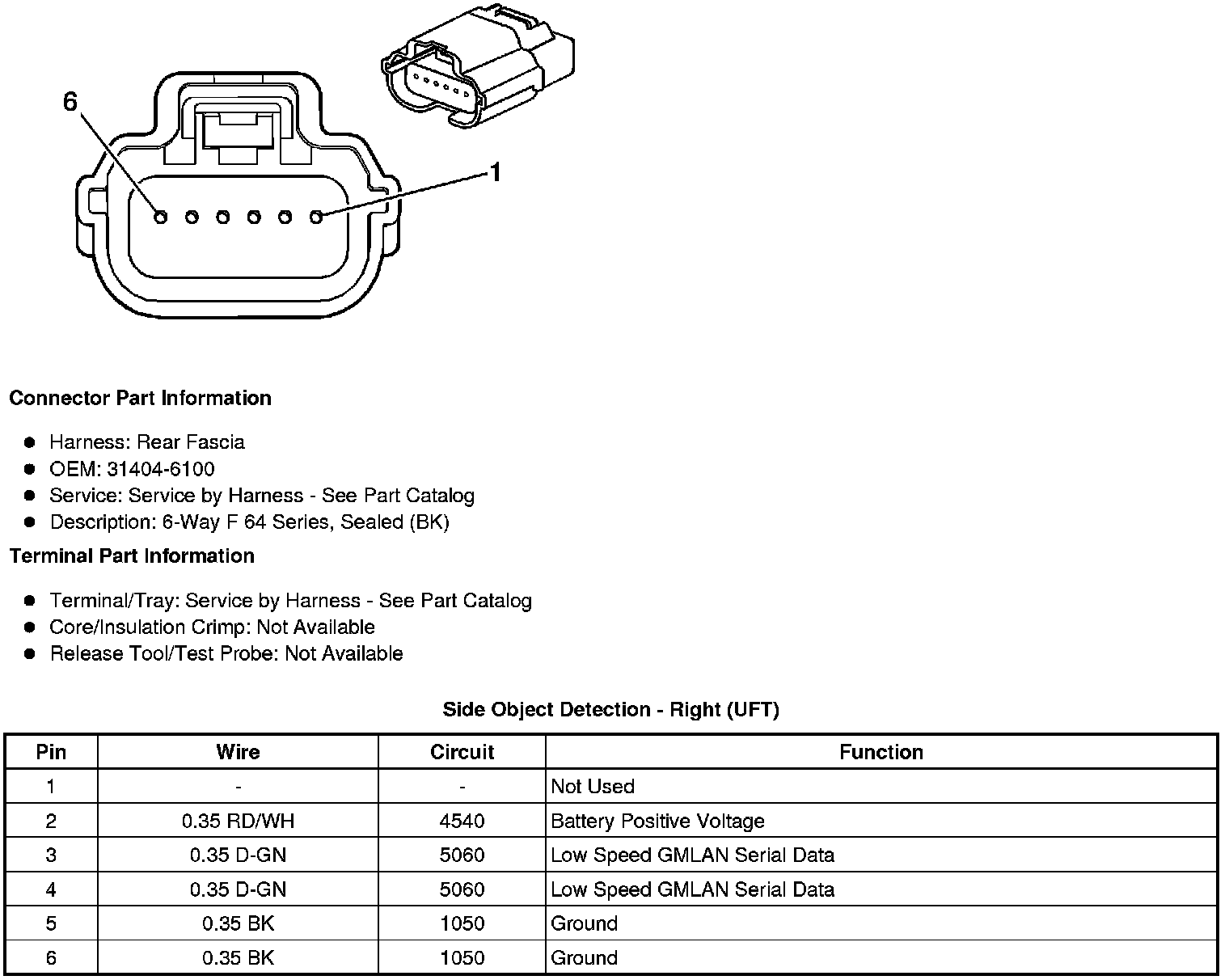

Side Object Detection - Right (UFT)
