Power Seat Motor Position Sensor
Component Connector End Views
Seat Front Vertical Position Sensor - Driver (A45) (Part of Seat Adjuster Motor Assembly Driver)

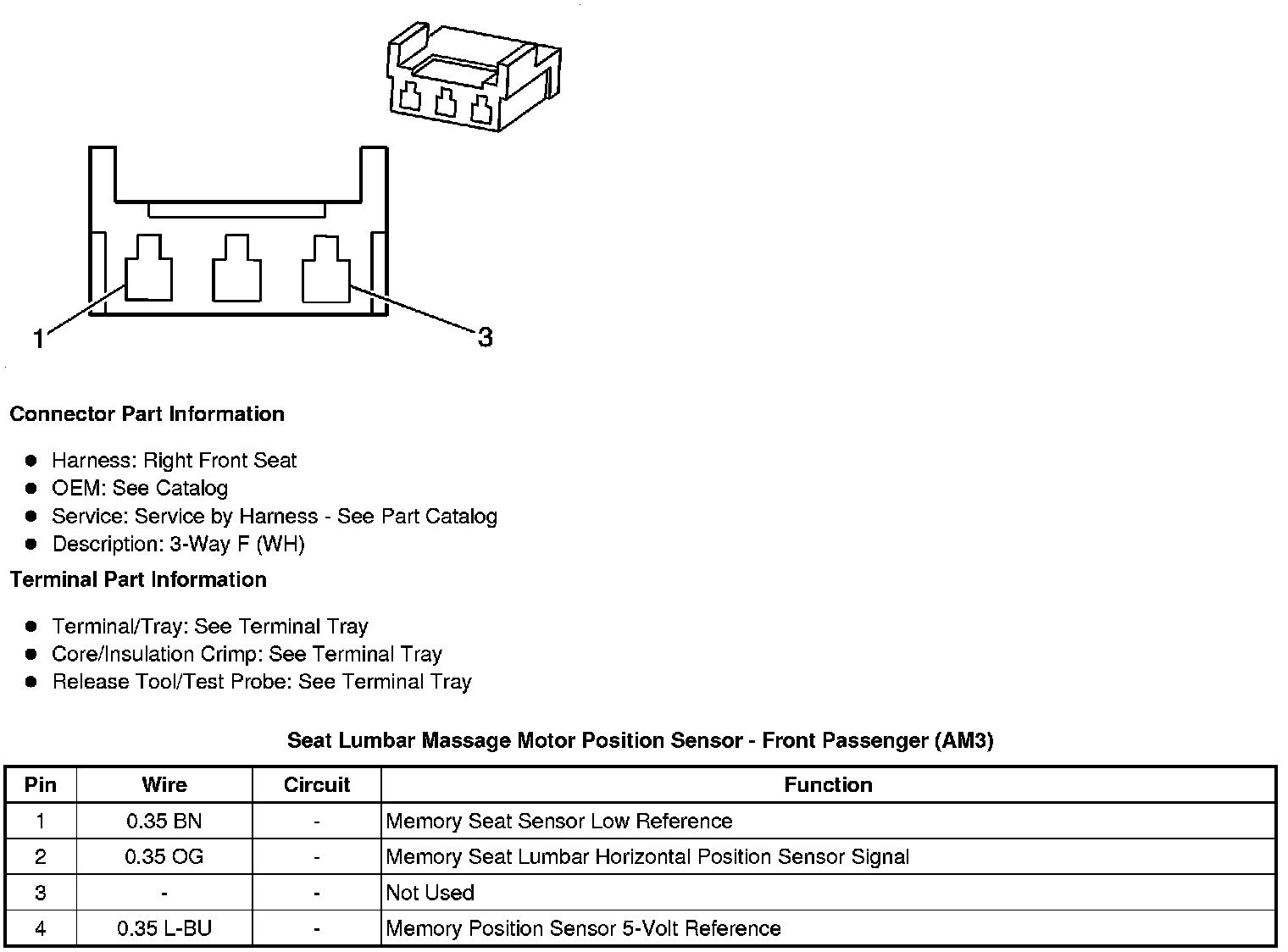

Seat Lumbar Massage Motor Position Sensor - Front Passenger (AM3)

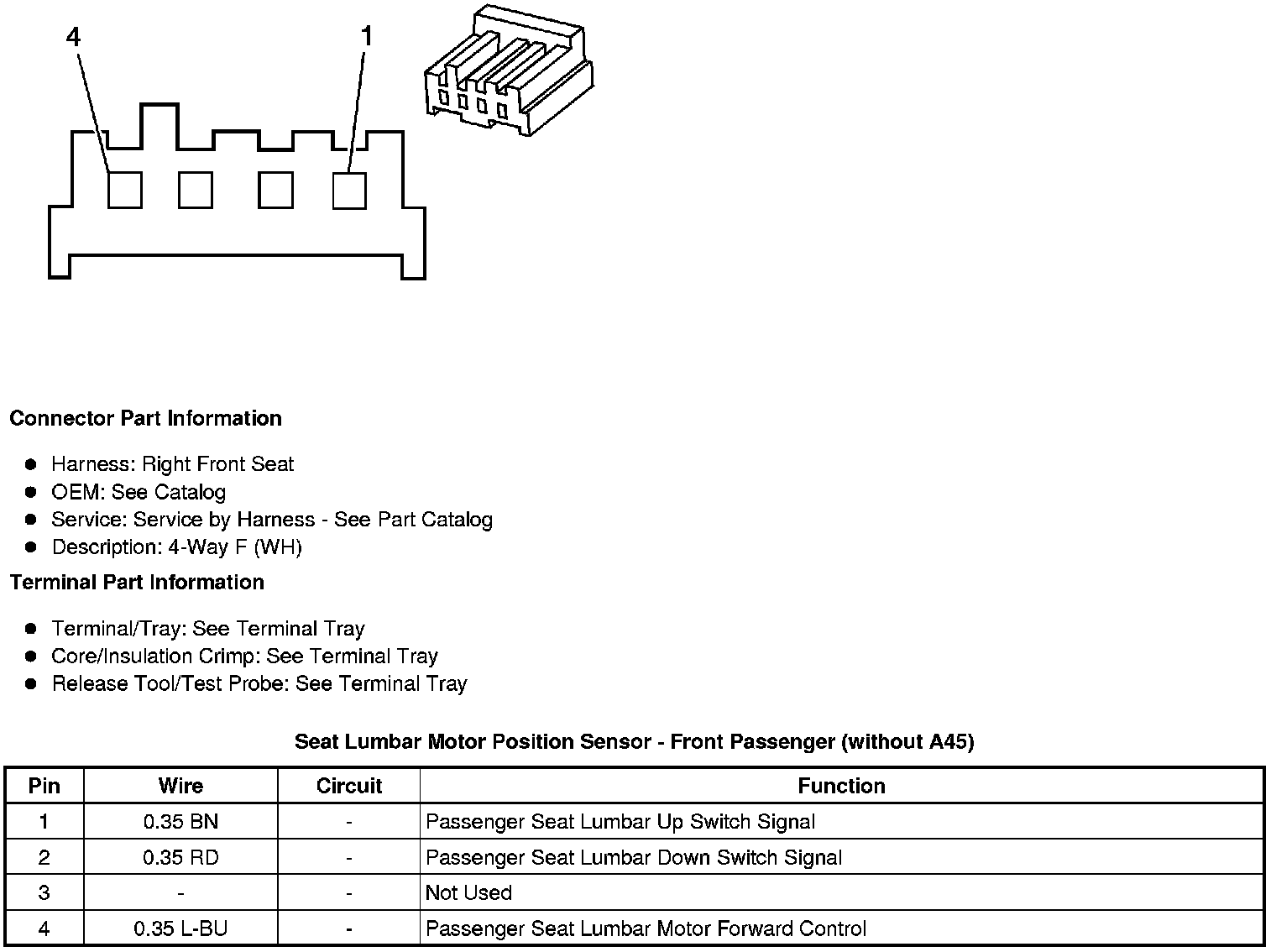

Seat Lumbar Motor Position Sensor - Front Passenger (without A45)

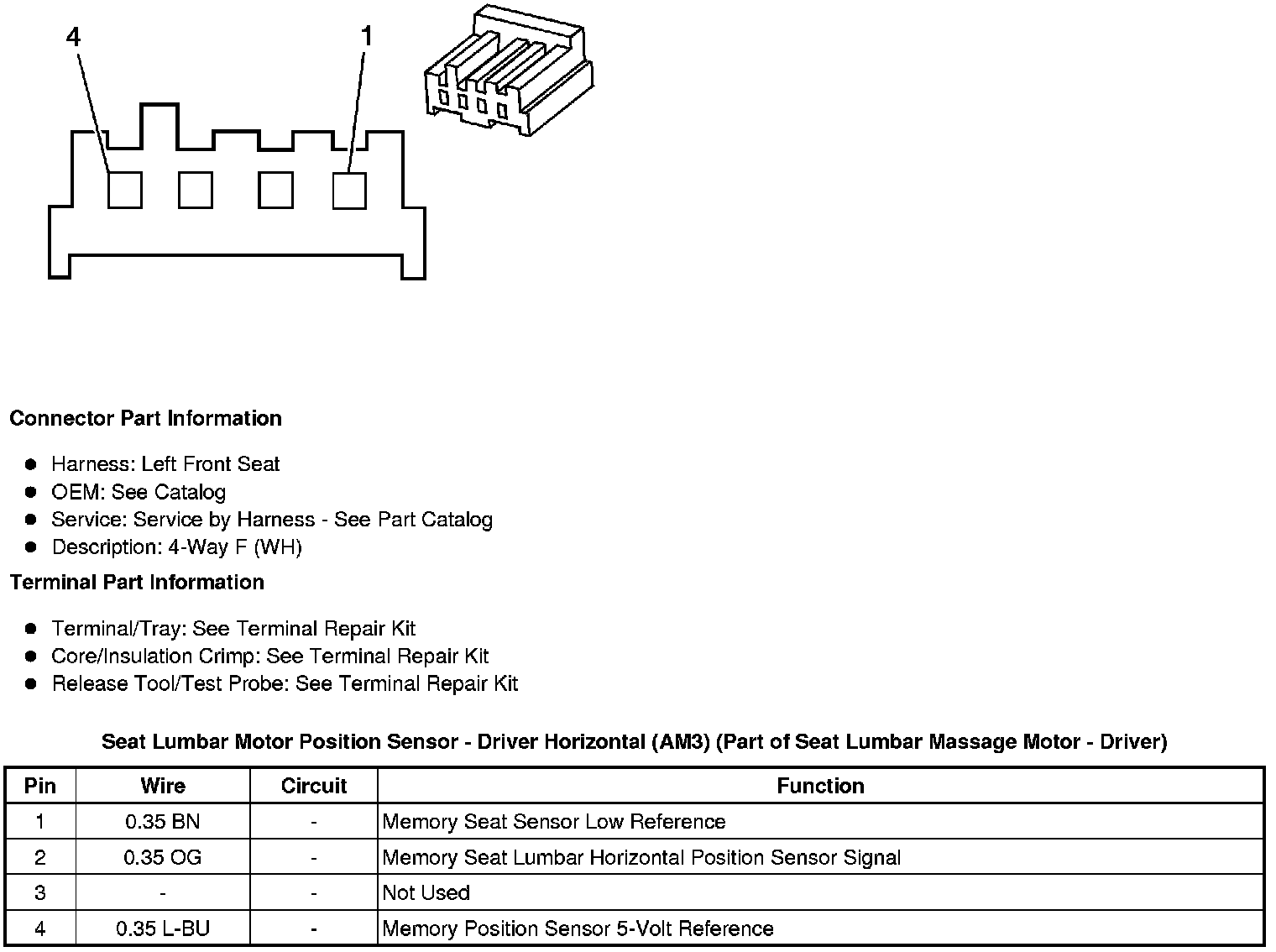

Seat Lumbar Motor Position Sensor - Driver Horizontal (AM3) (Part of Seat Lumbar Massage Motor - Driver)
Seat Rear Horizontal Position Sensor - Driver (A45) (Part of Seat Adjuster Motor Assembly Driver)
Seat Rear Vertical Position Sensor - Driver (A45) (Part of Seat Adjuster Motor Assembly Driver)

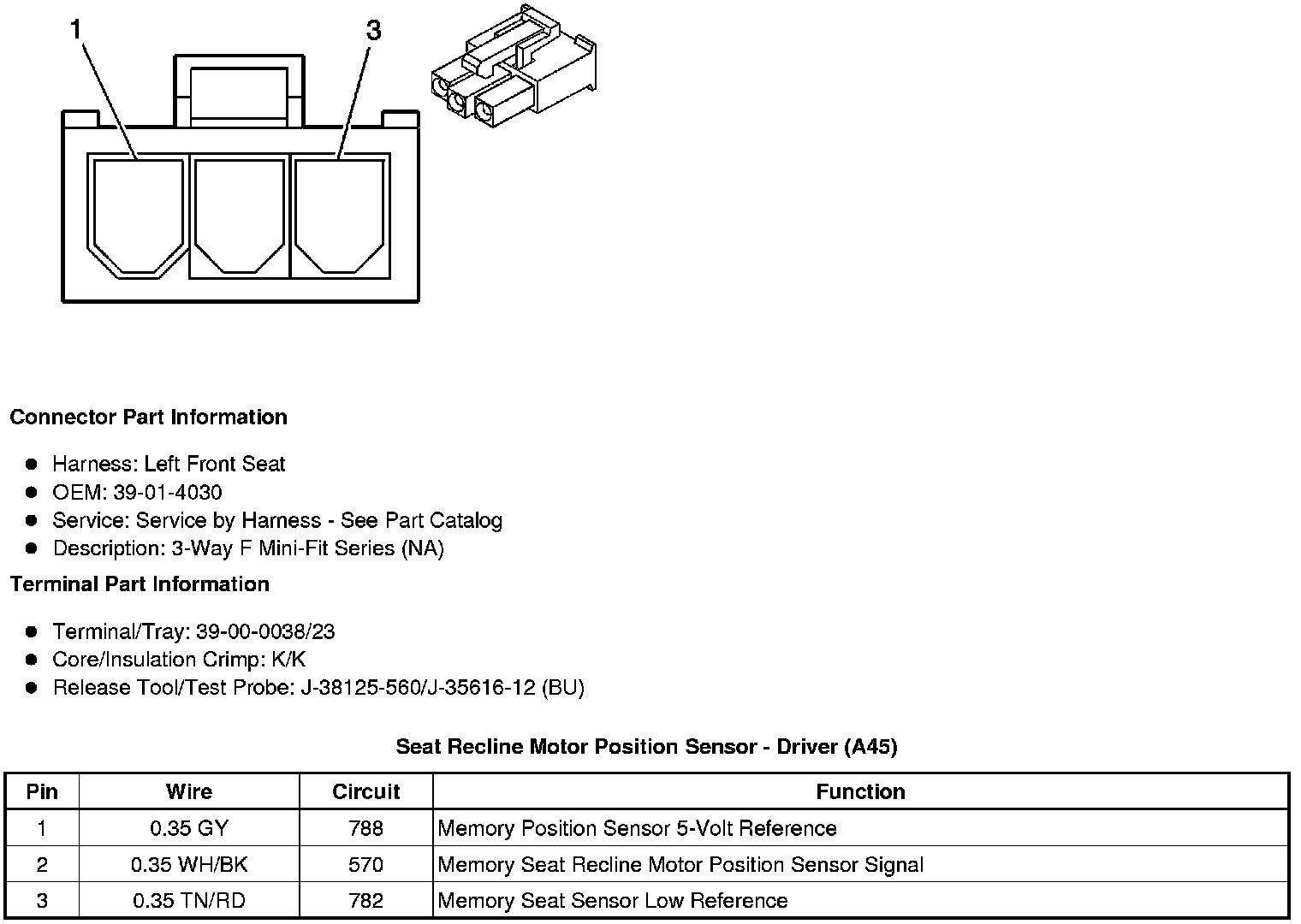

Seat Recline Motor Position Sensor - Driver (A45)
