Engine Control Module: Diagrams

Component Connector End Views

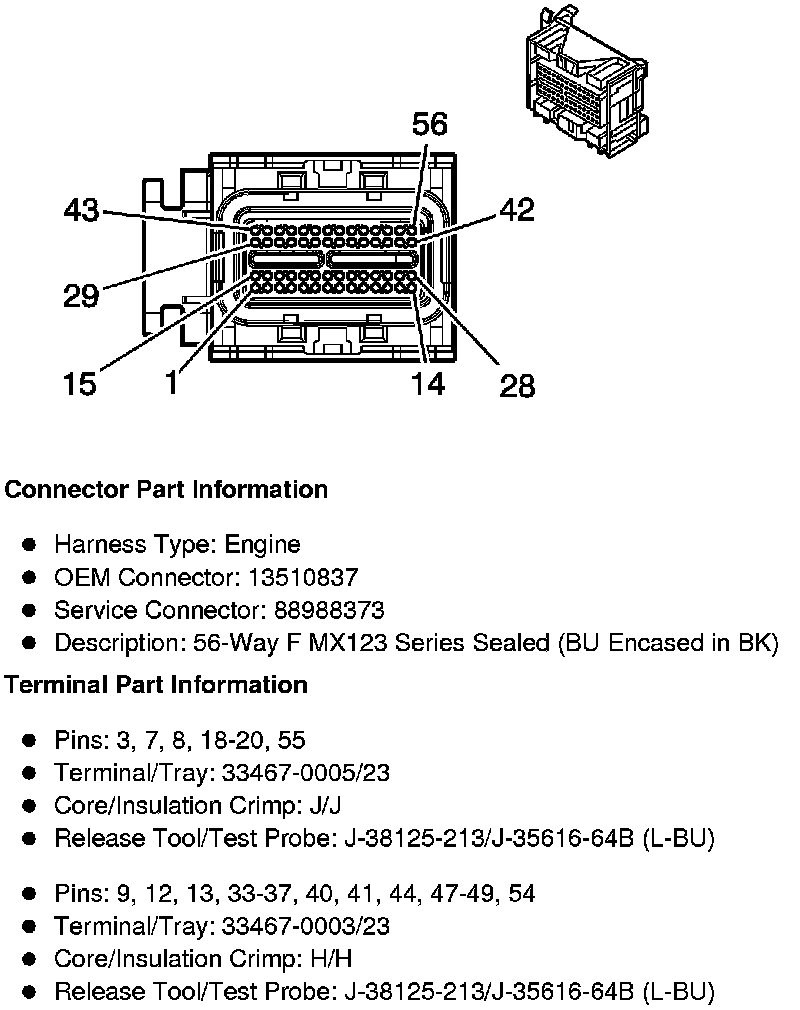

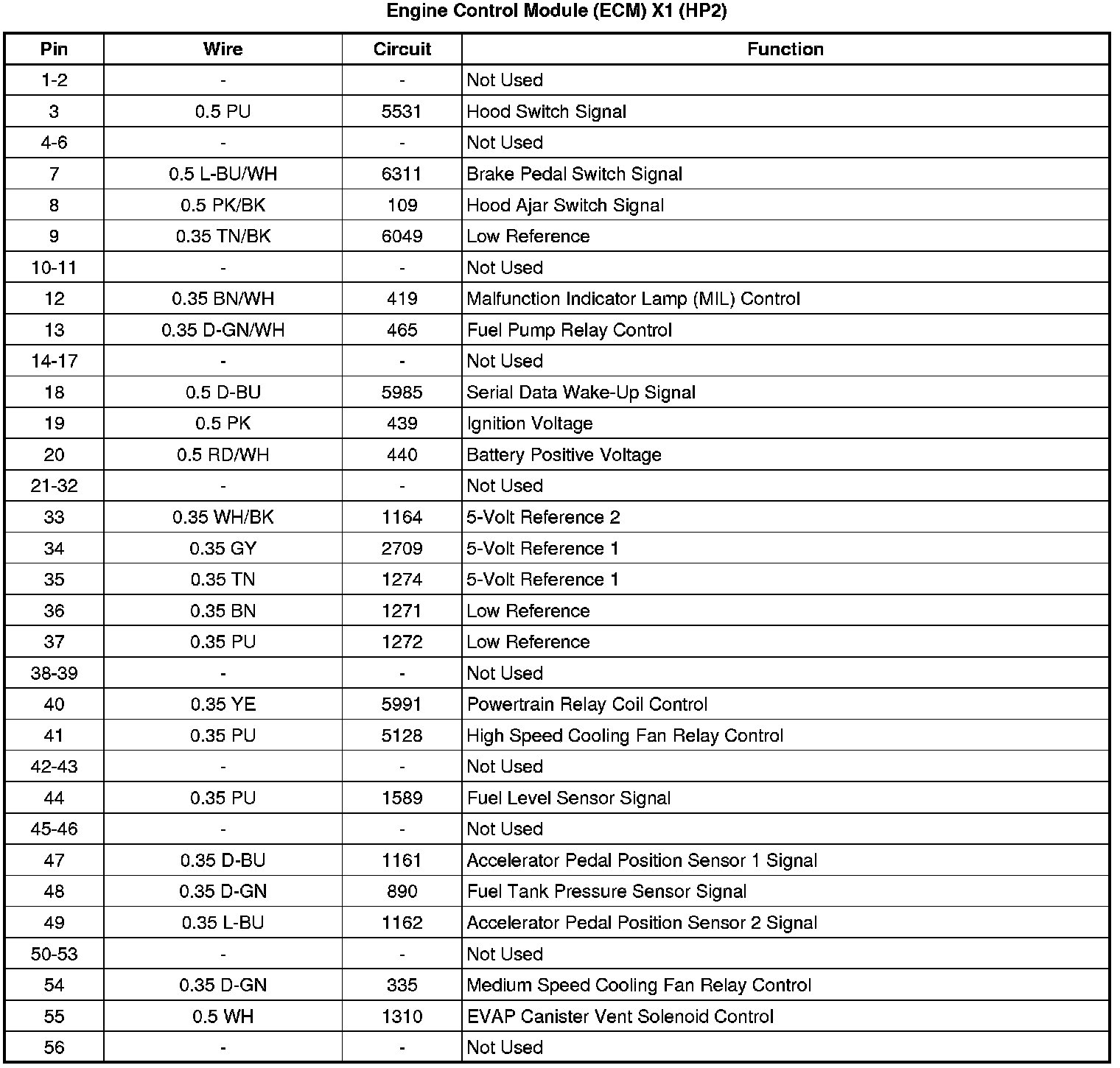

Engine Control Module (ECM) X1 (HP2)

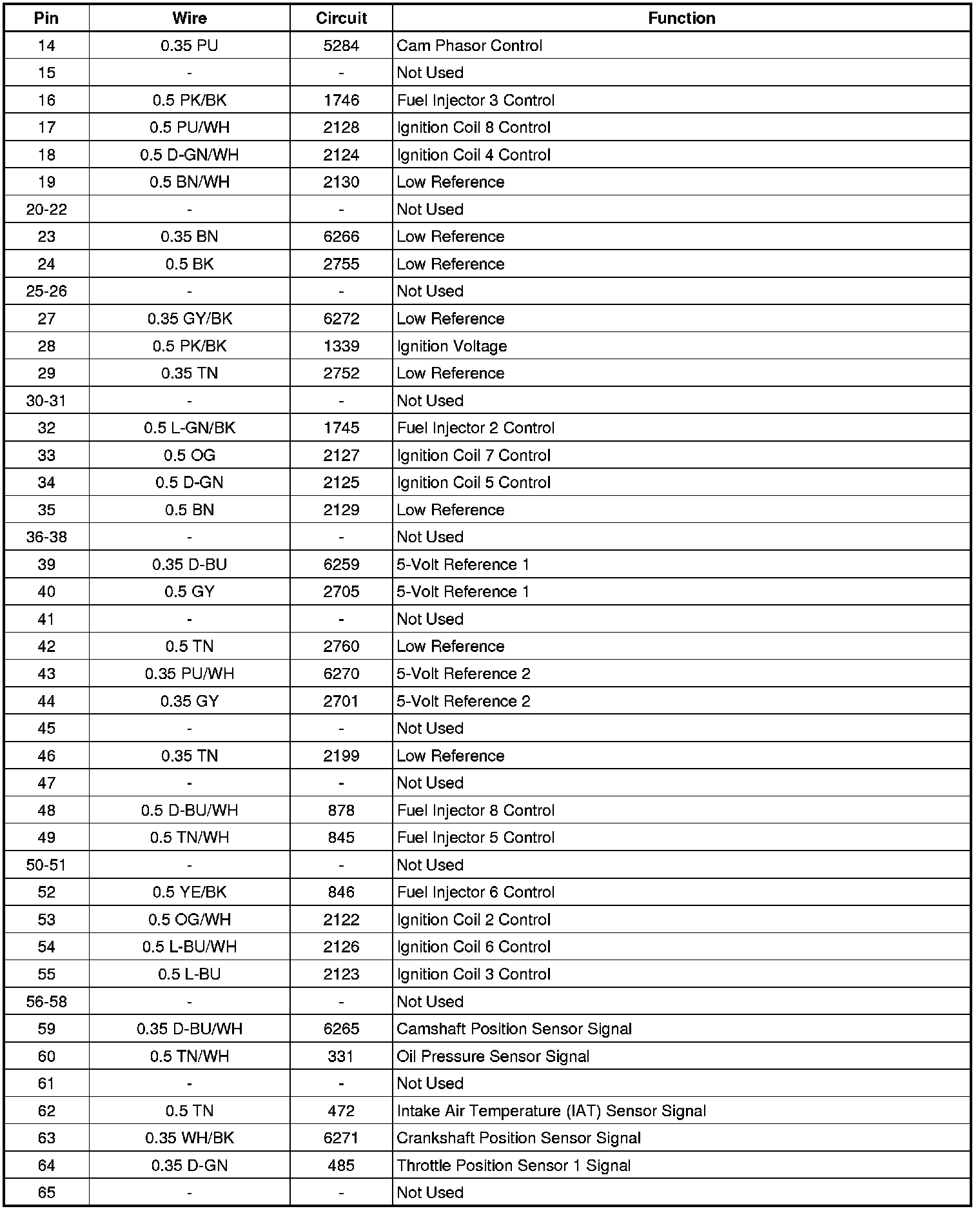

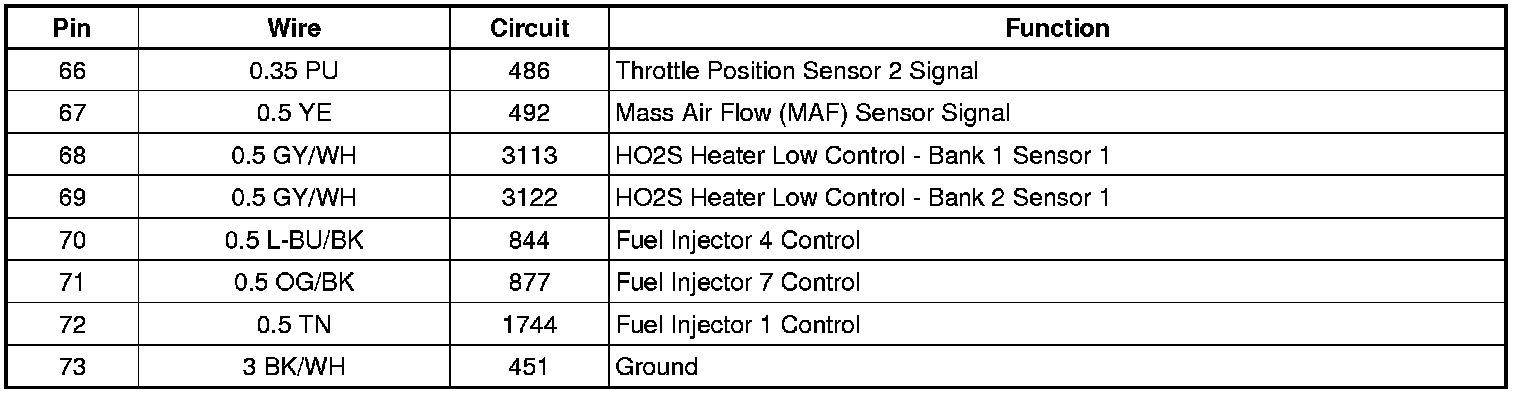

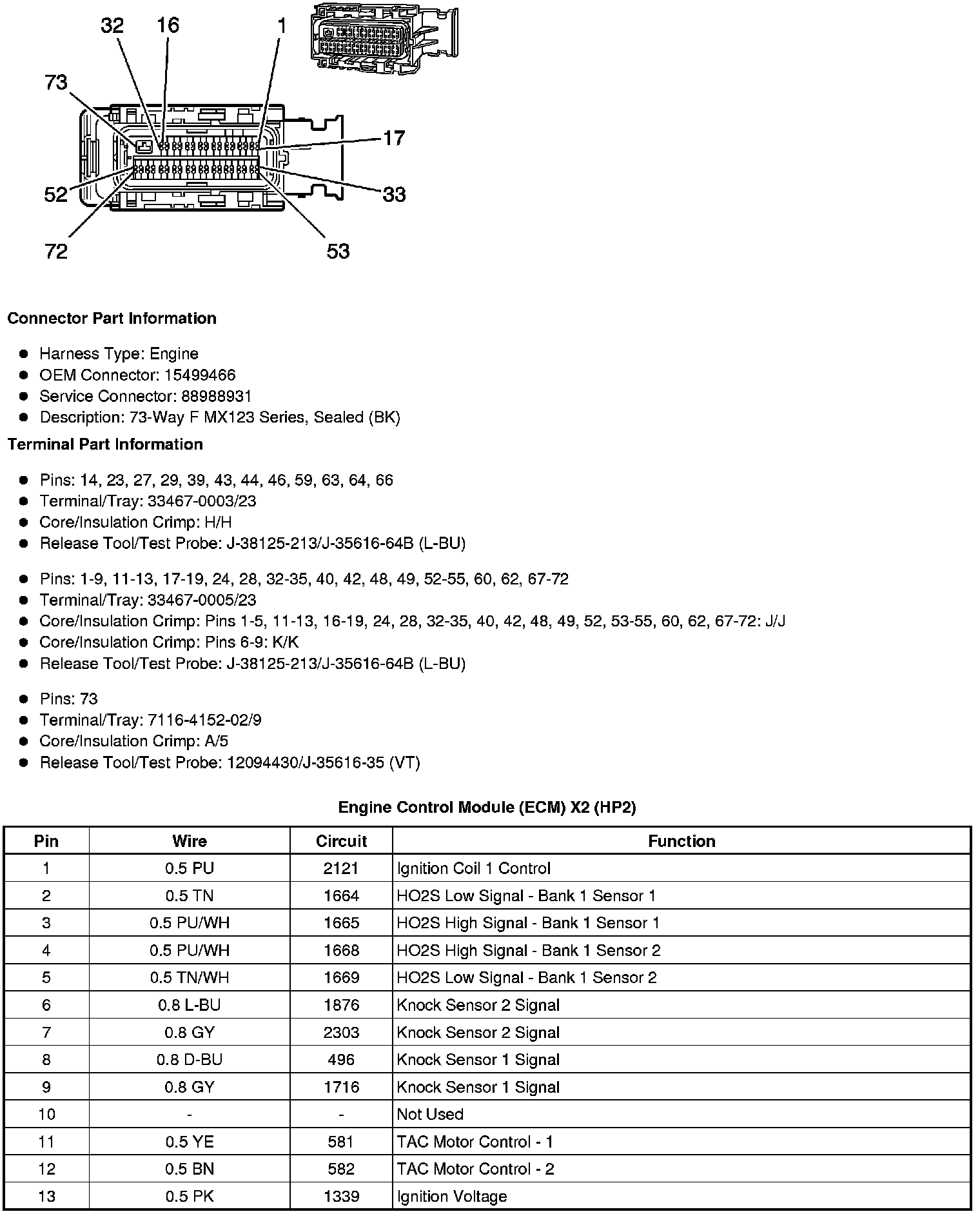

Engine Control Module (ECM) X2 (HP2)

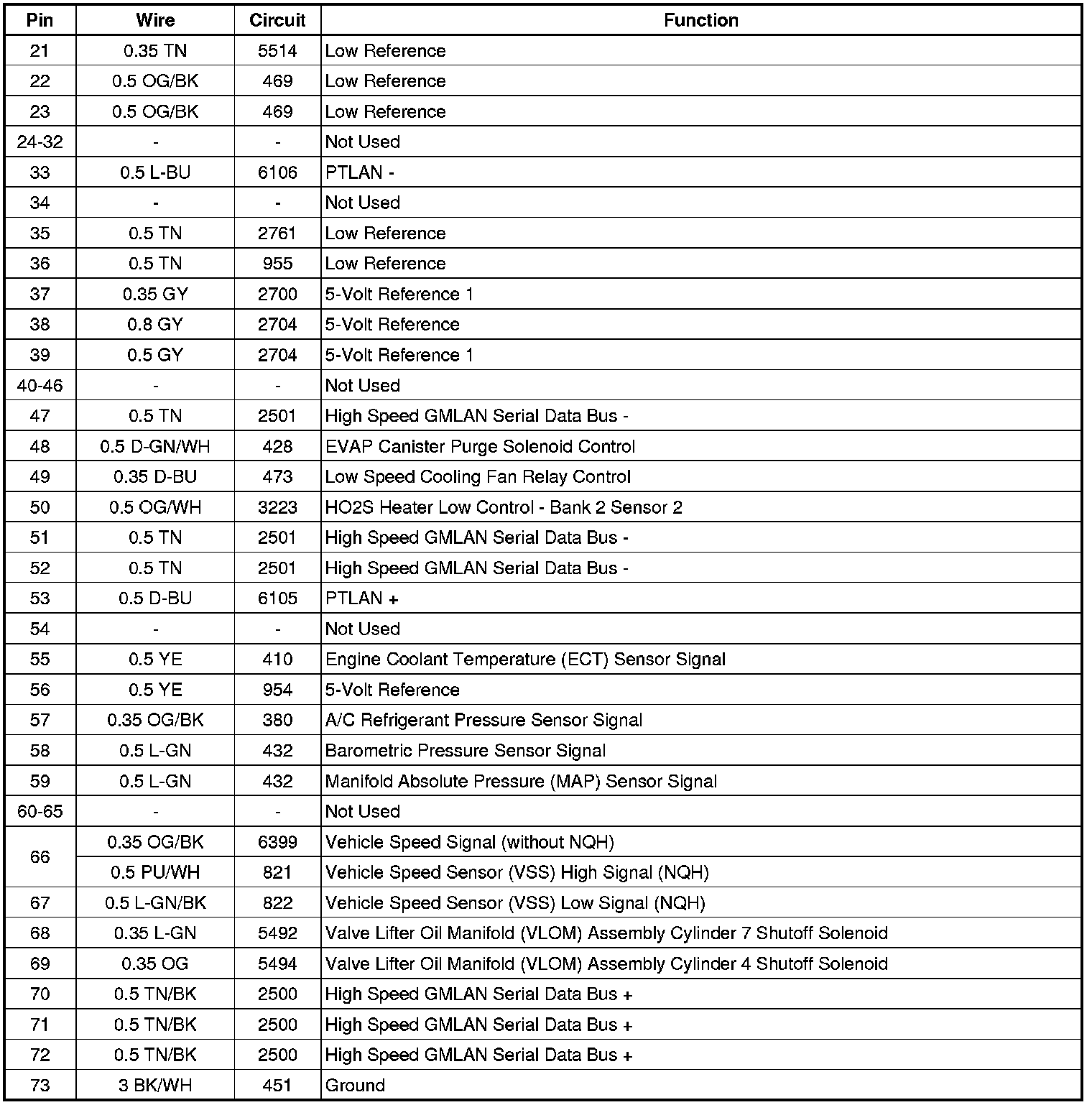

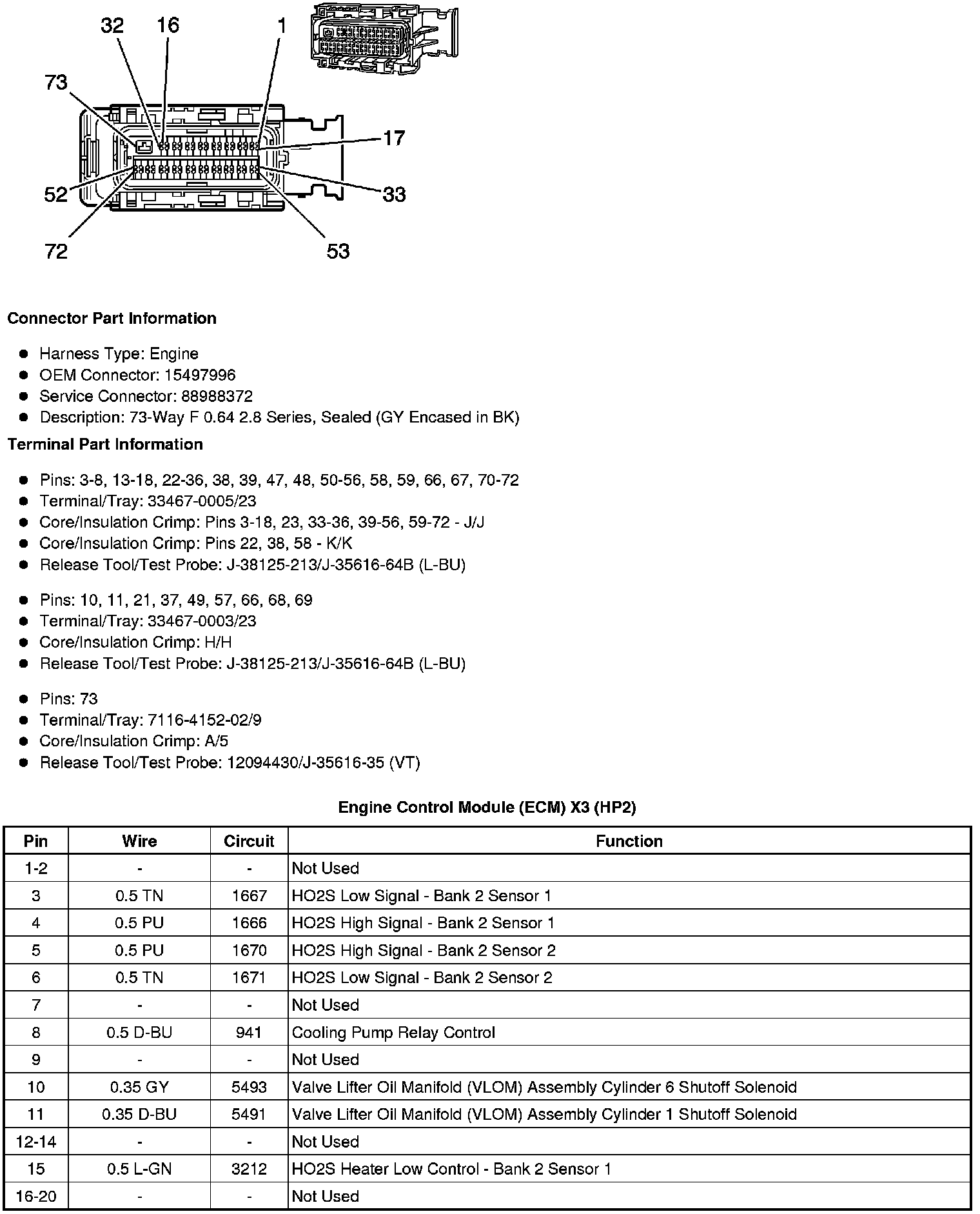

Engine Control Module (ECM) X3 (HP2)
