Trailer Brake Control Module




Component Connector End Views

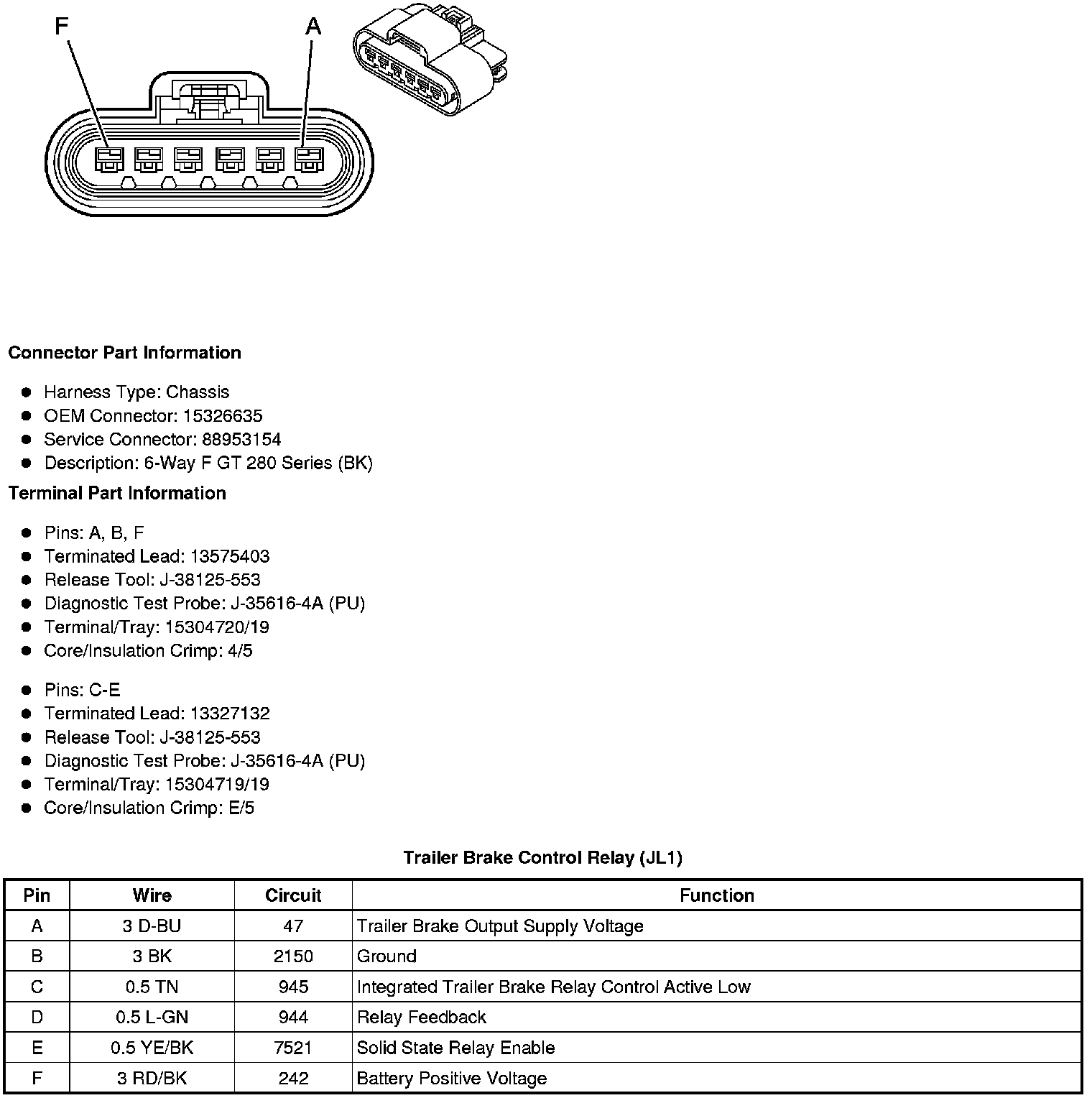

Trailer Brake Control Relay (JL1)

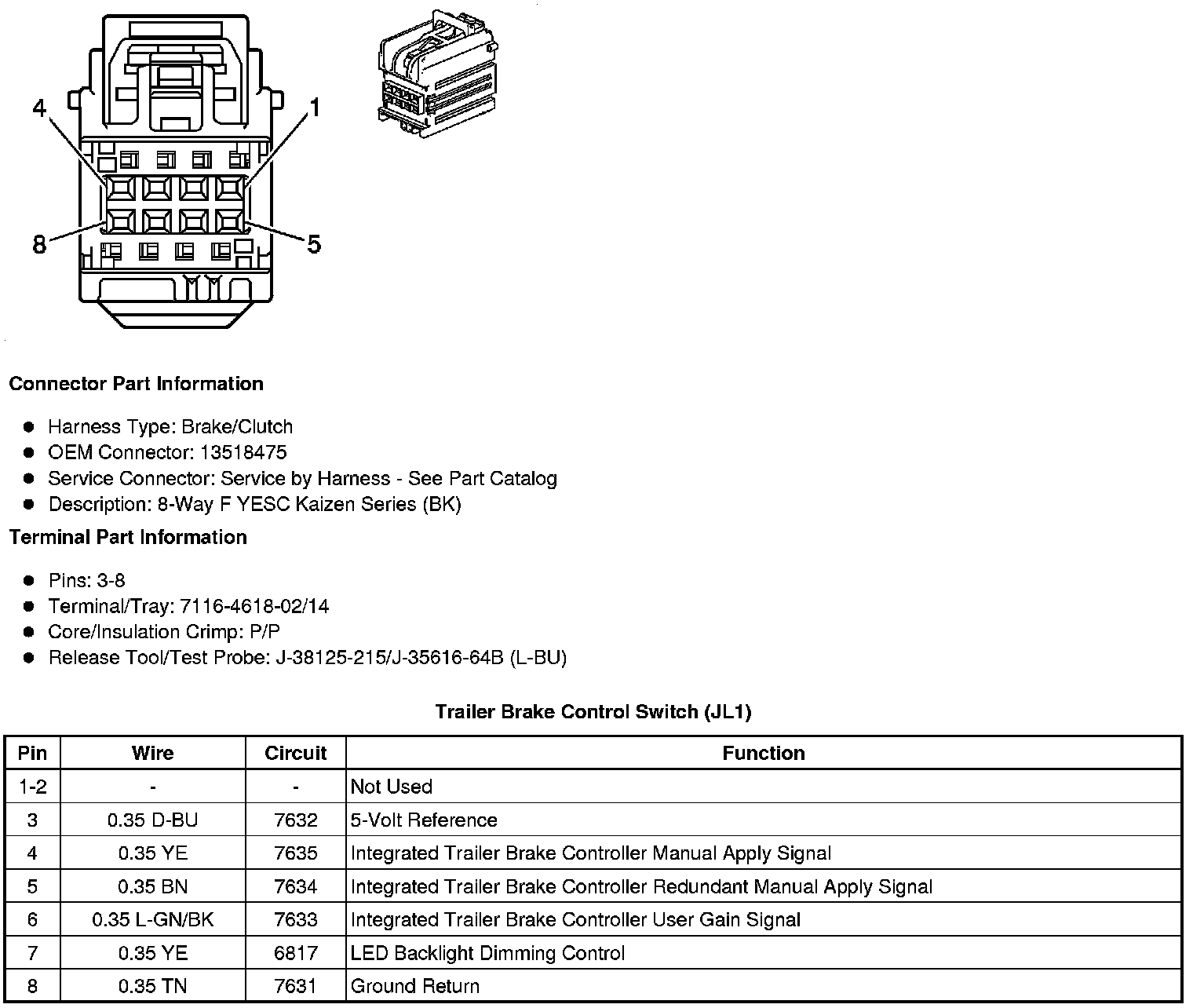

Trailer Brake Control Switch (JL1)

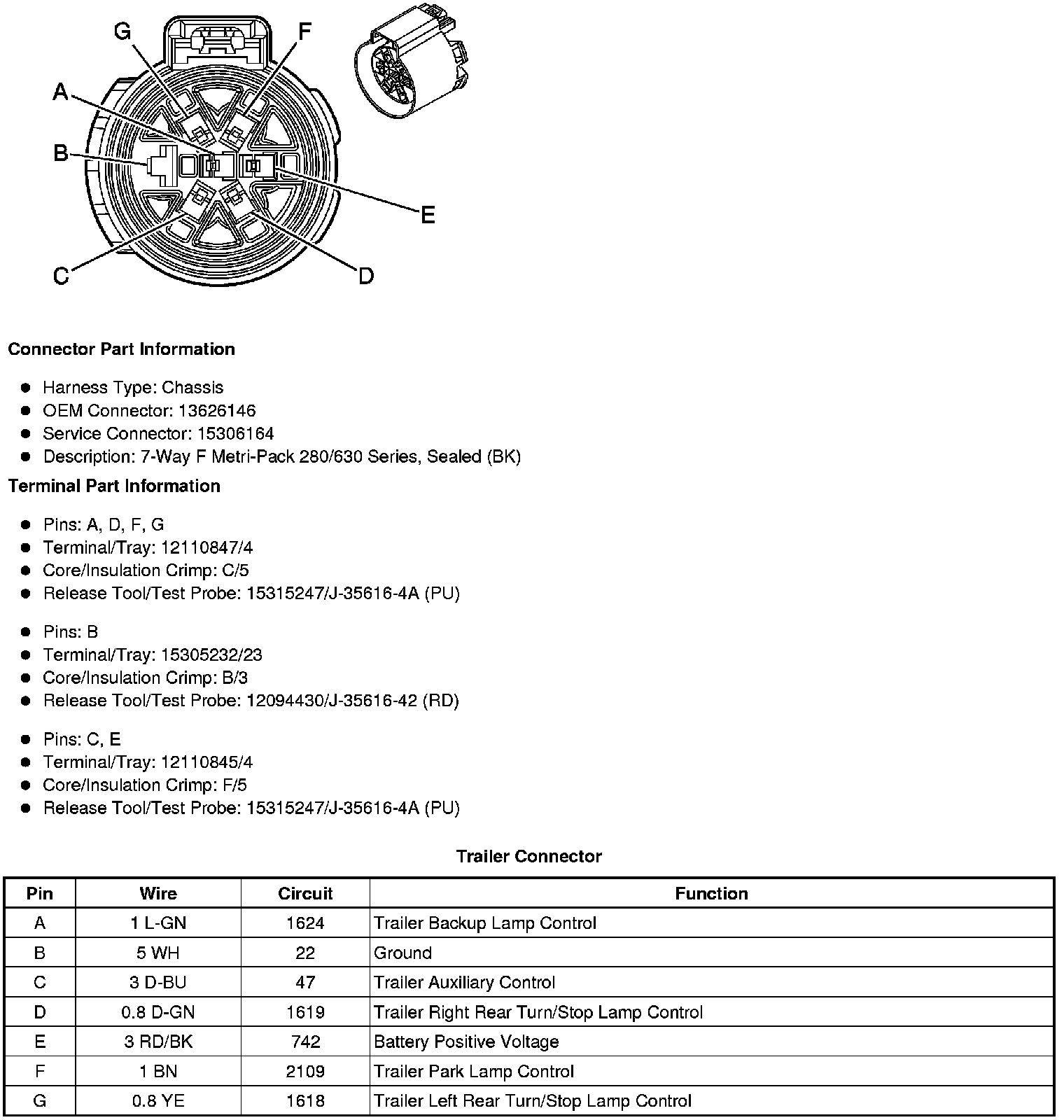

Trailer Connector

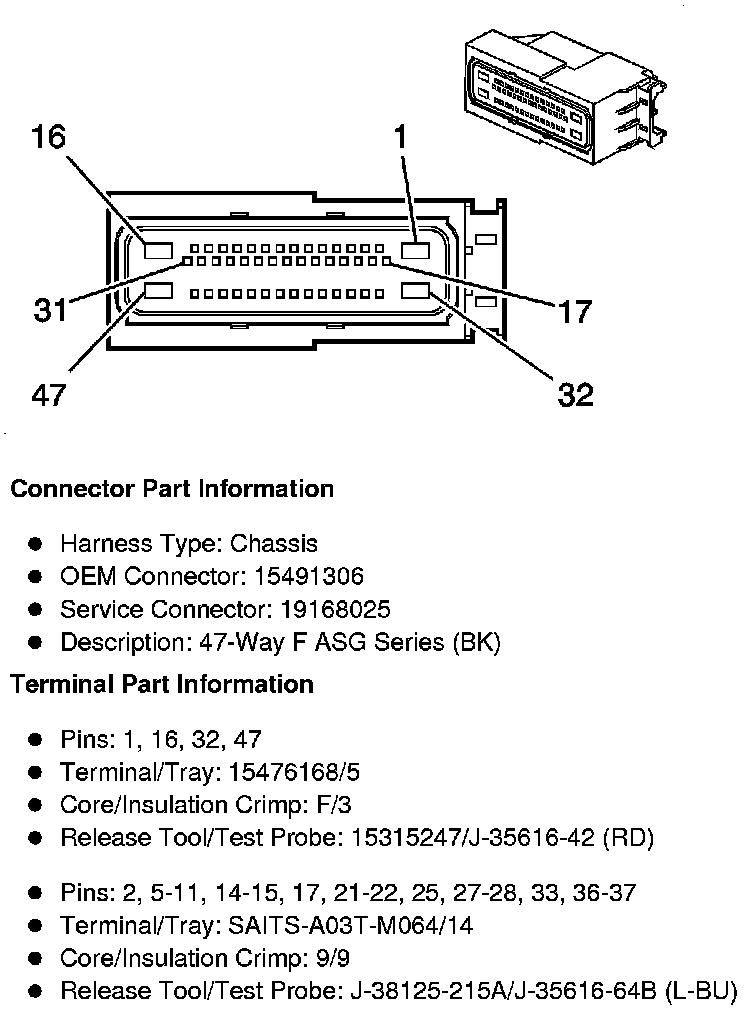

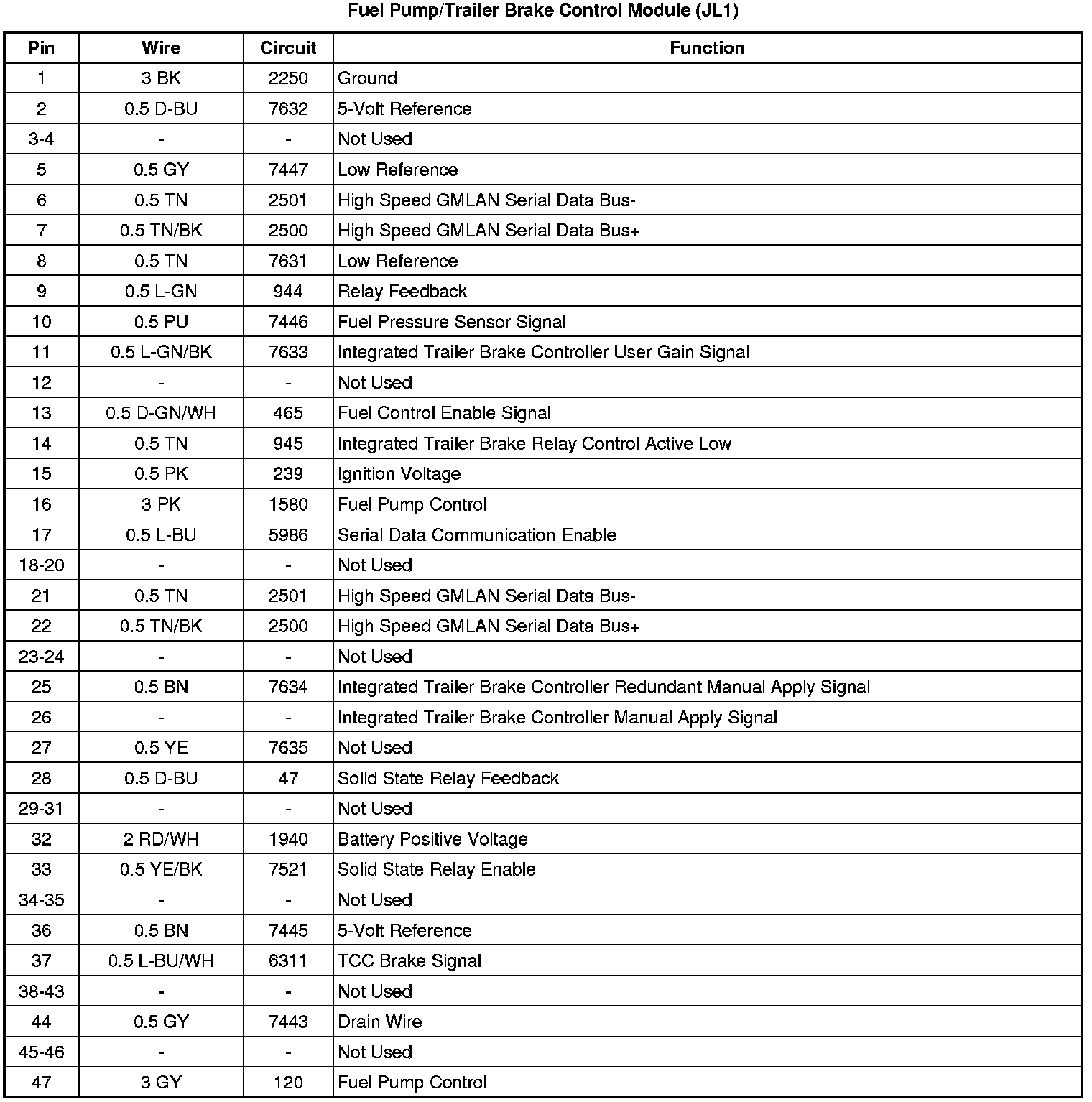

Fuel Pump/Trailer Brake Control Module (JL1)
