Communications Control Module
Component Connector End Views

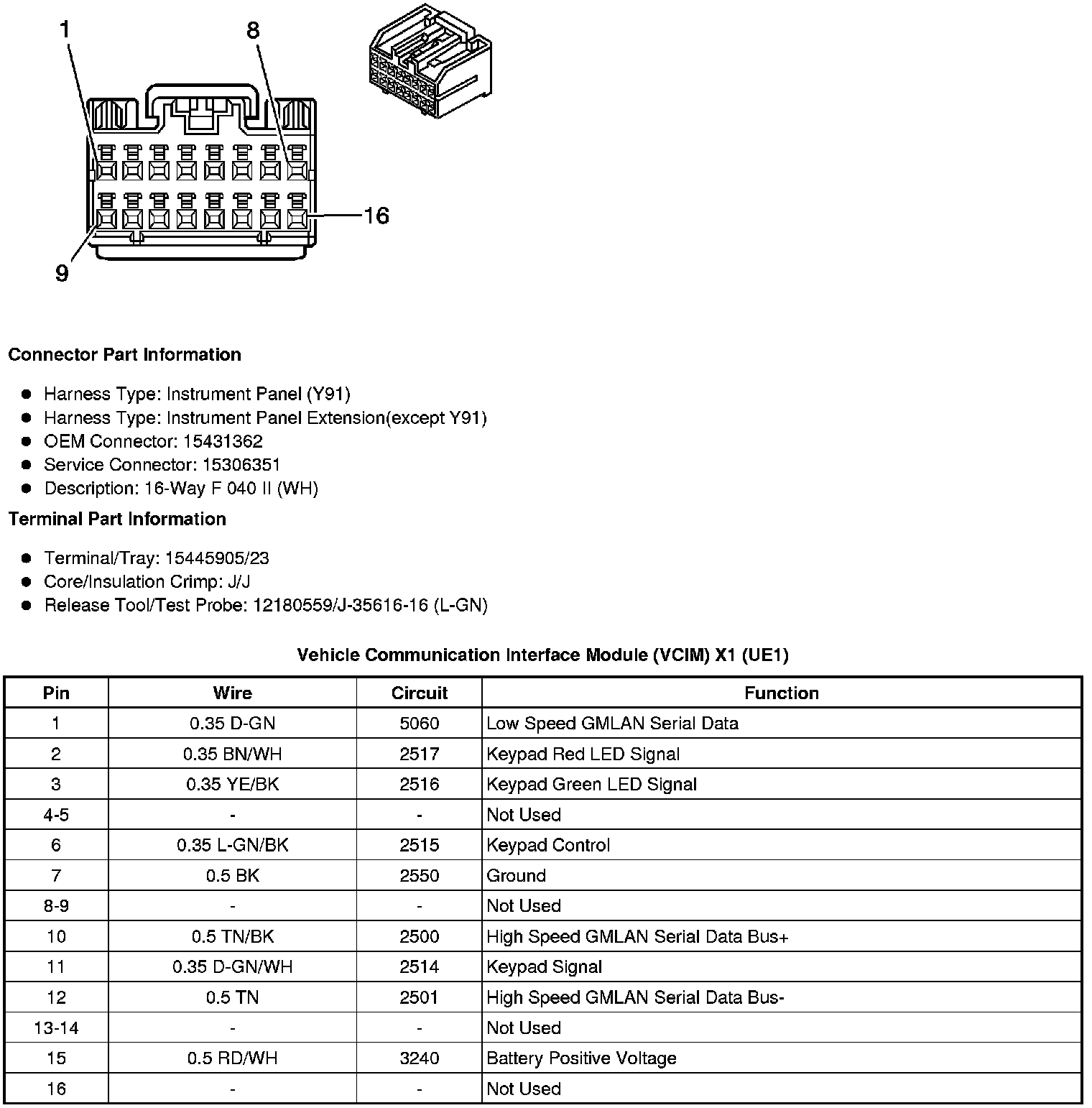

Vehicle Communication Interface Module (VCIM) X1 (UE1)
Vehicle Communication Interface Module (VCIM) X2 (UE1)

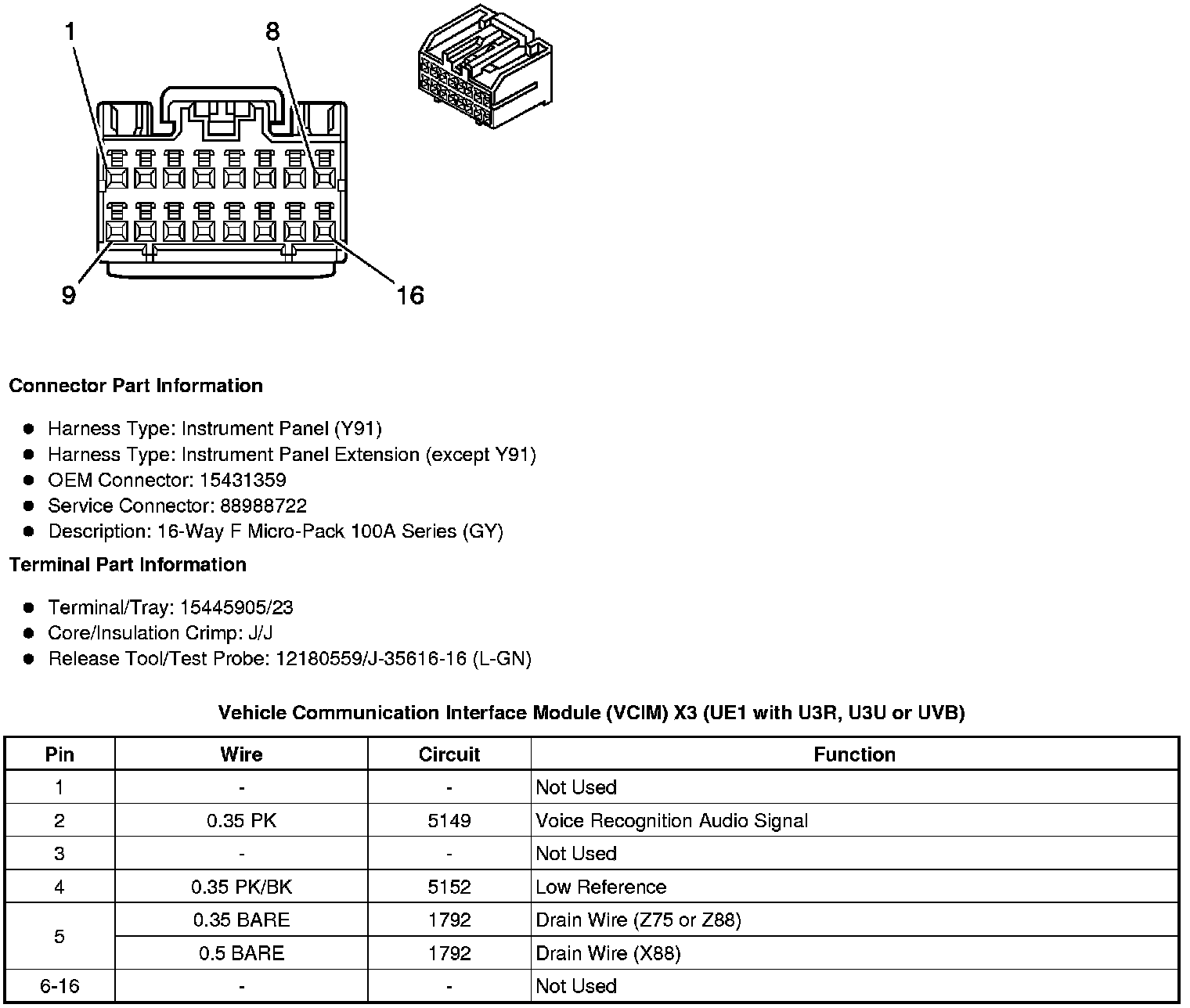

Vehicle Communication Interface Module (VCIM) X3 (UE1 with U3R, U3U or UVB)
Component Connector End Views
Vehicle Communication Interface Module (VCIM) X1 (UE1)
Vehicle Communication Interface Module (VCIM) X2 (UE1)
Vehicle Communication Interface Module (VCIM) X3 (UE1 with U3R, U3U or UVB)
