Control Module, A/T

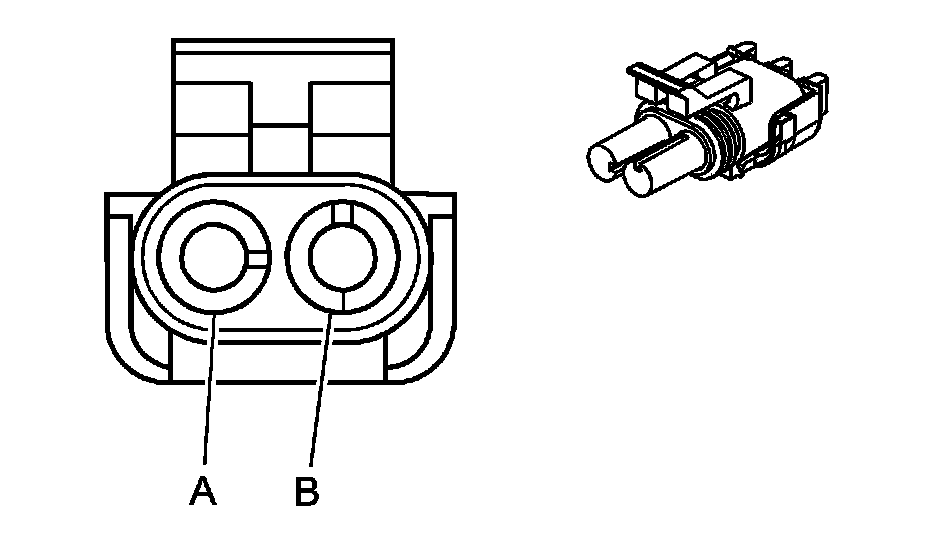

Component Connector End Views

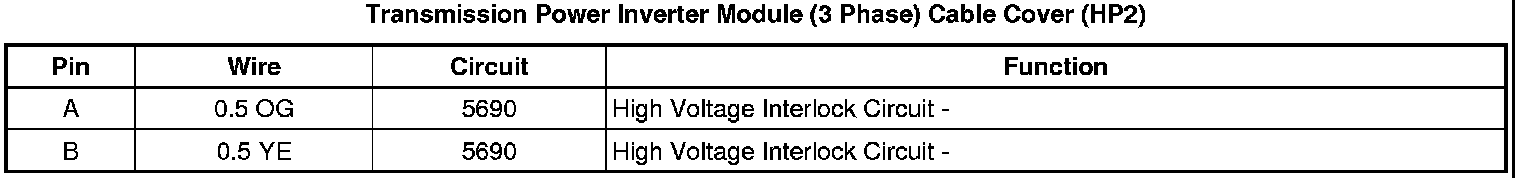

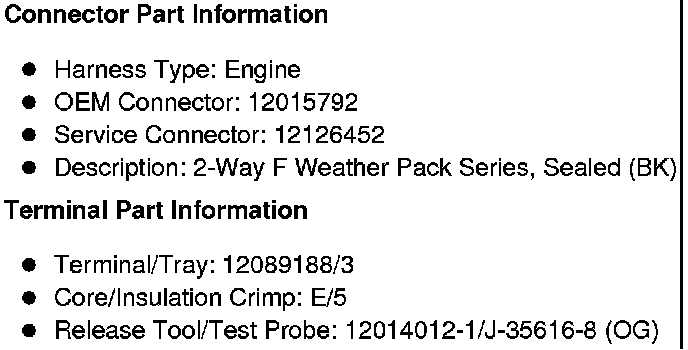

Transmission Power Inverter Module (3 Phase) Cable Cover (HP2)
