Side Object Sensor
Component Connector End Views

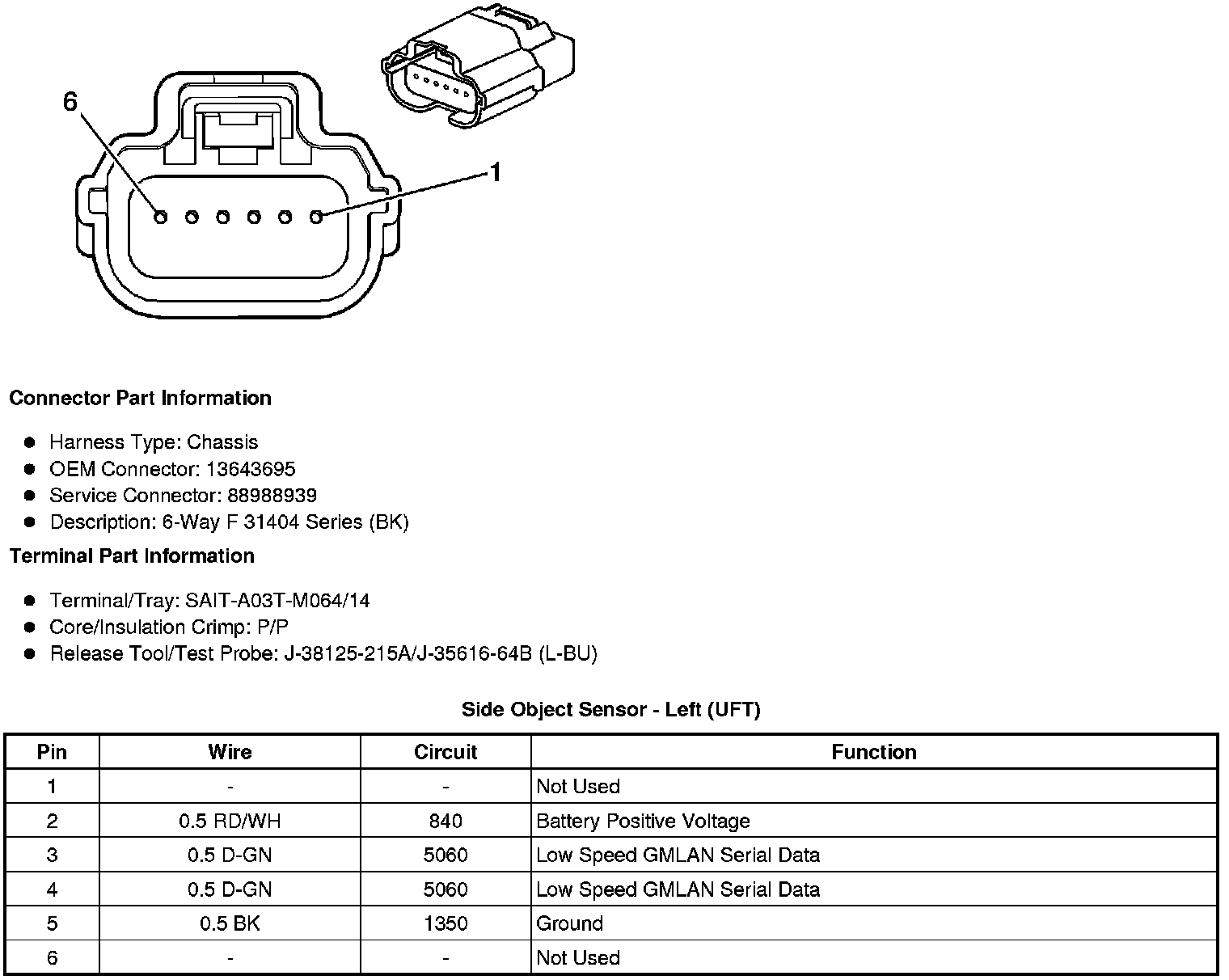

Side Object Sensor - Left (UFT)

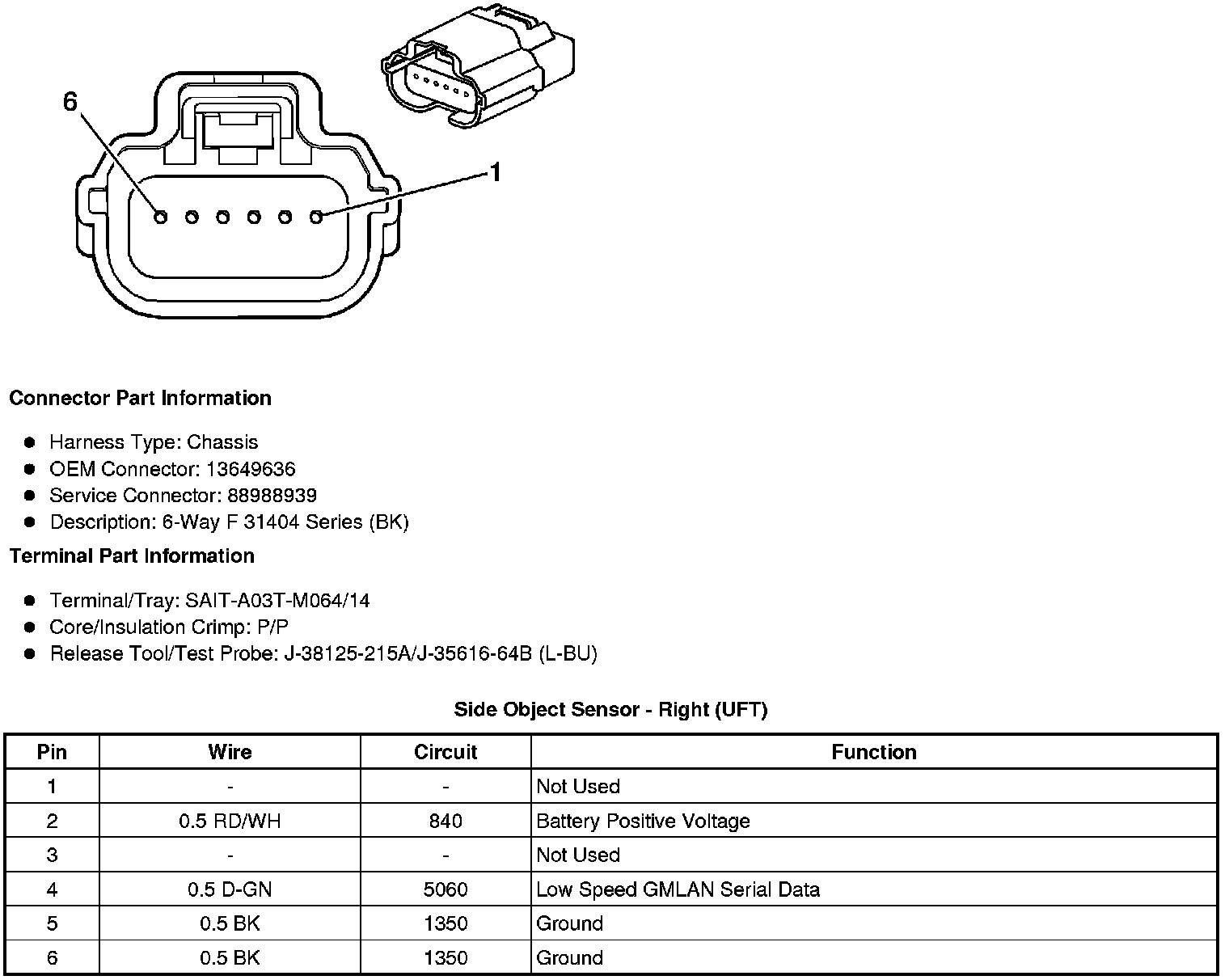

Side Object Sensor - Right (UFT)
