Seat Occupant Sensor Module
Component Connector End Views
Inflatable Restraint Passenger Presence System (PPS) Module (X88 with HP2 or Z88 with HP2)
Inflatable Restraint Passenger Presence System (PPS) Module (without HP2 or Z75 with HP2)
Component Connector End Views

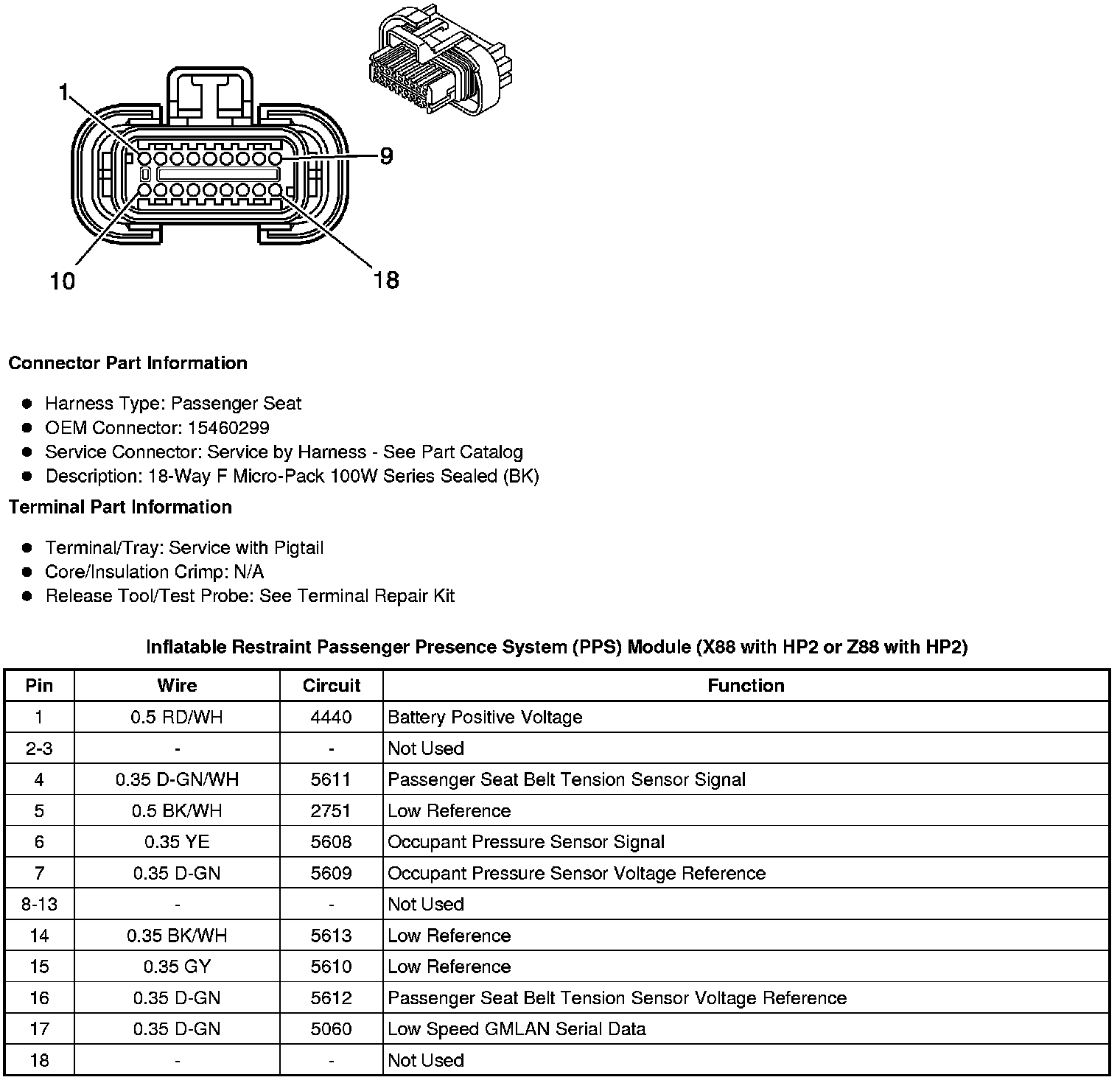

Inflatable Restraint Passenger Presence System (PPS) Module (X88 with HP2 or Z88 with HP2)

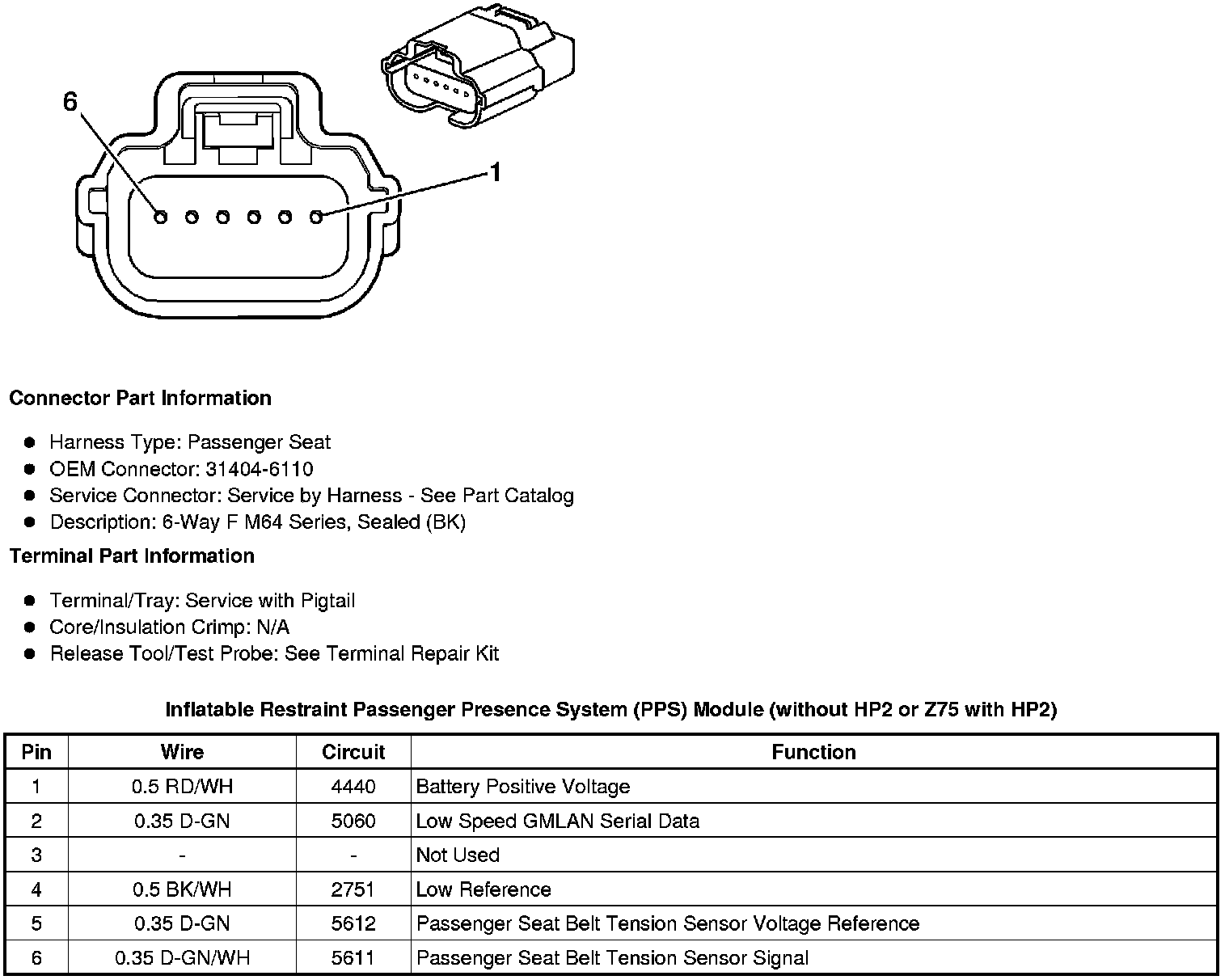

Inflatable Restraint Passenger Presence System (PPS) Module (without HP2 or Z75 with HP2)
