Steering Control Module
Component Connector End Views

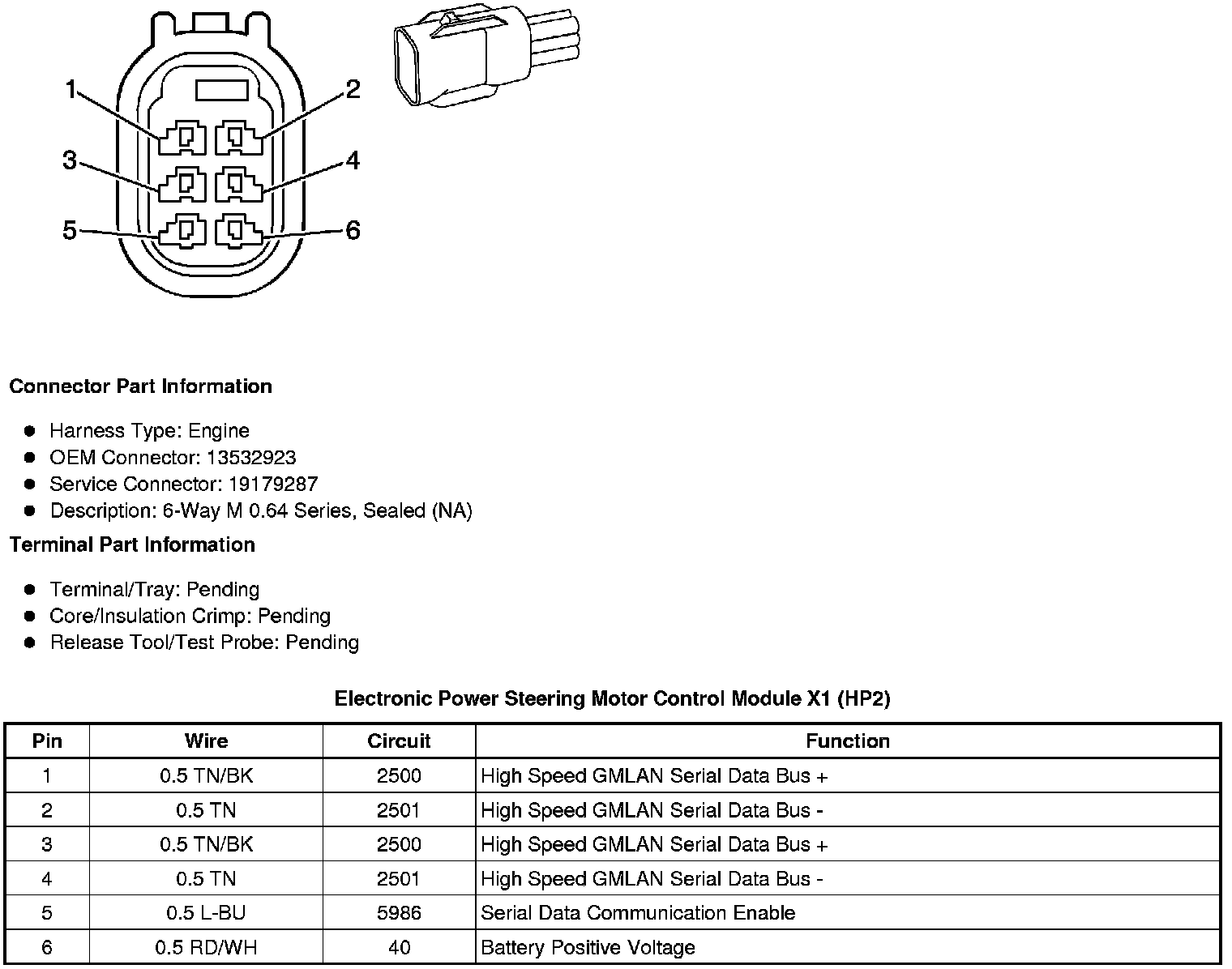

Electronic Power Steering Motor Control Module X1 (HP2)

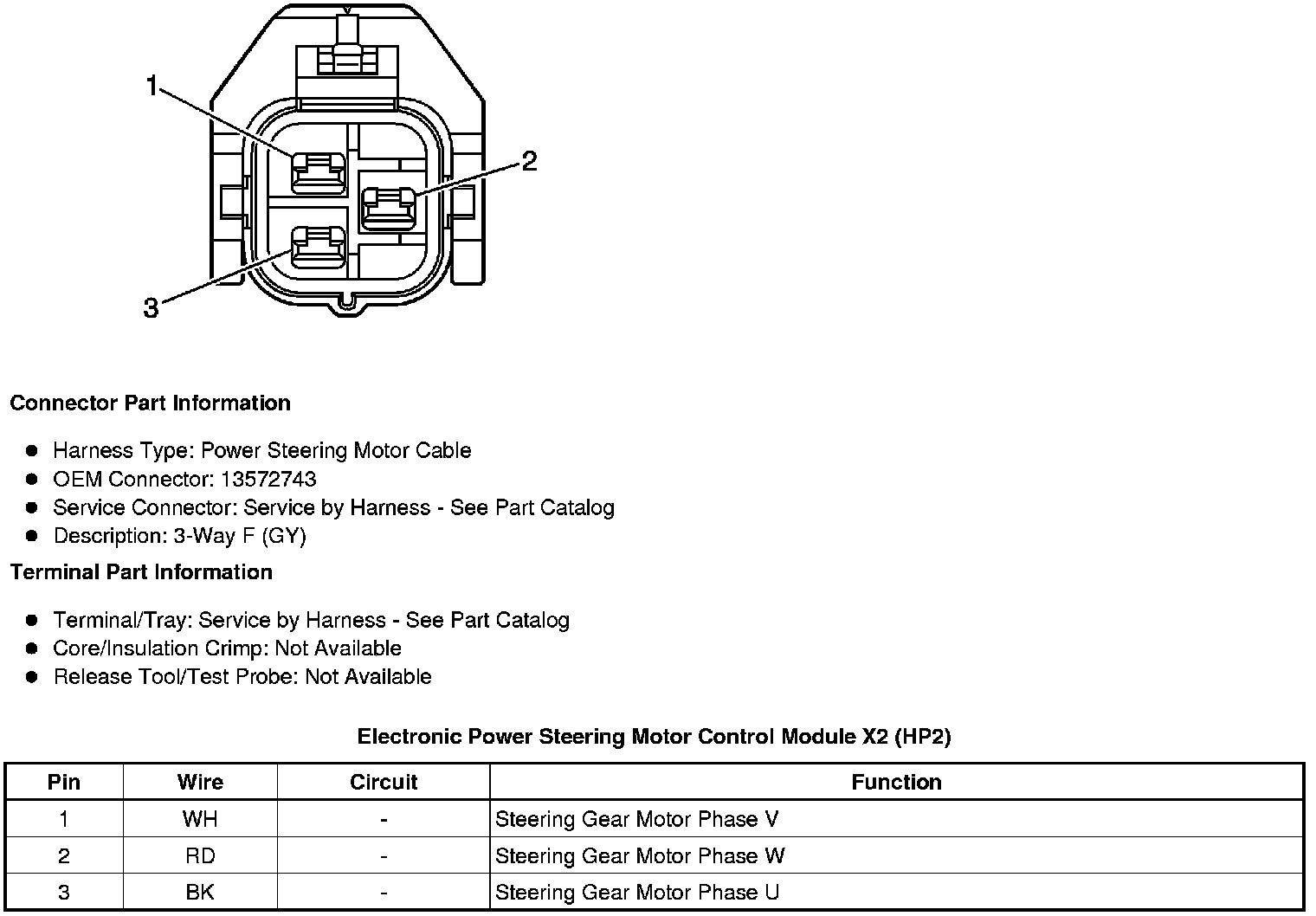

Electronic Power Steering Motor Control Module X2 (HP2)

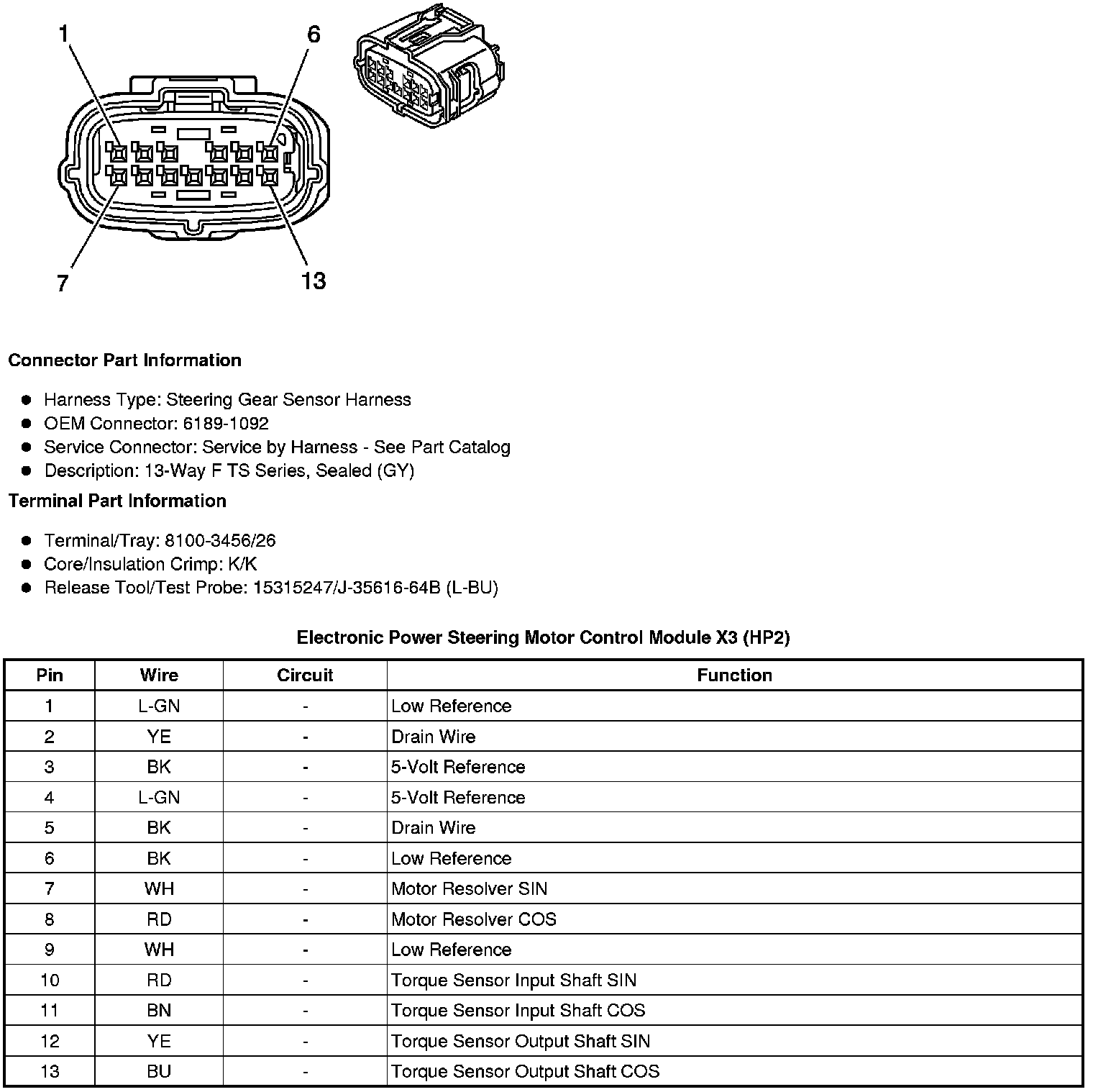

Electronic Power Steering Motor Control Module X3 (HP2)
Component Connector End Views
Electronic Power Steering Motor Control Module X1 (HP2)
Electronic Power Steering Motor Control Module X2 (HP2)
Electronic Power Steering Motor Control Module X3 (HP2)
