Blower Motor Control Module




Component Connector End Views

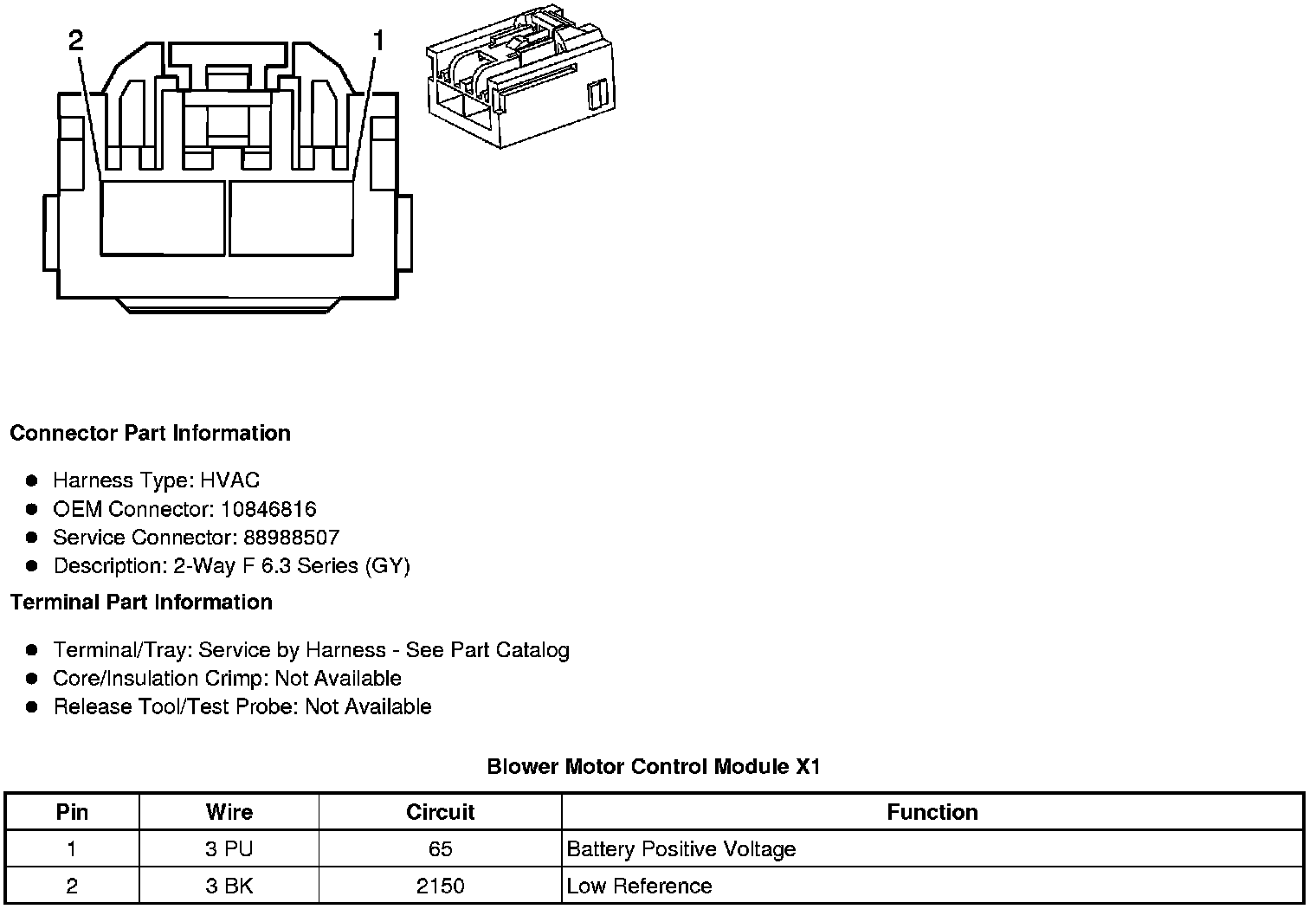

Blower Motor Control Module X1

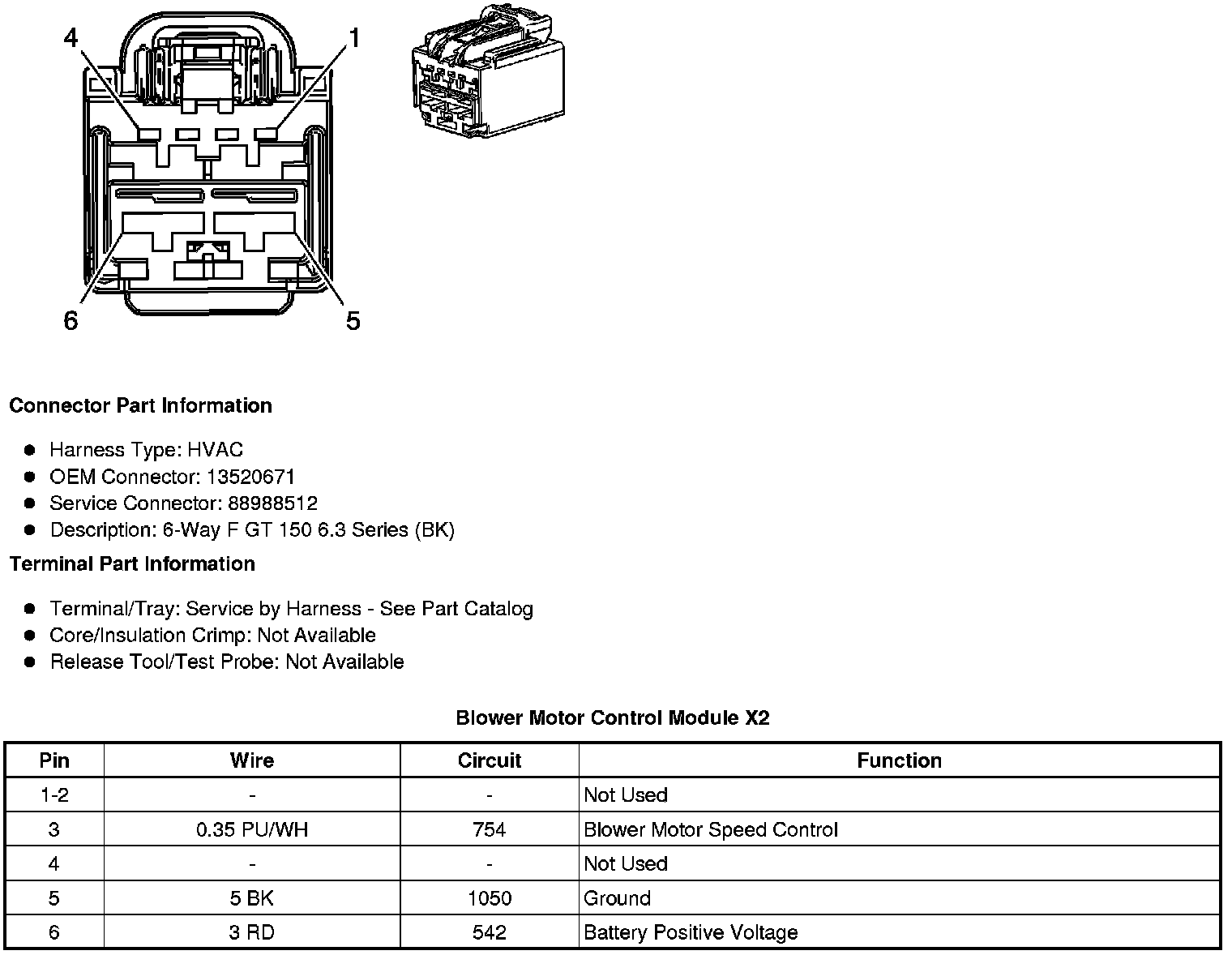

Blower Motor Control Module X2

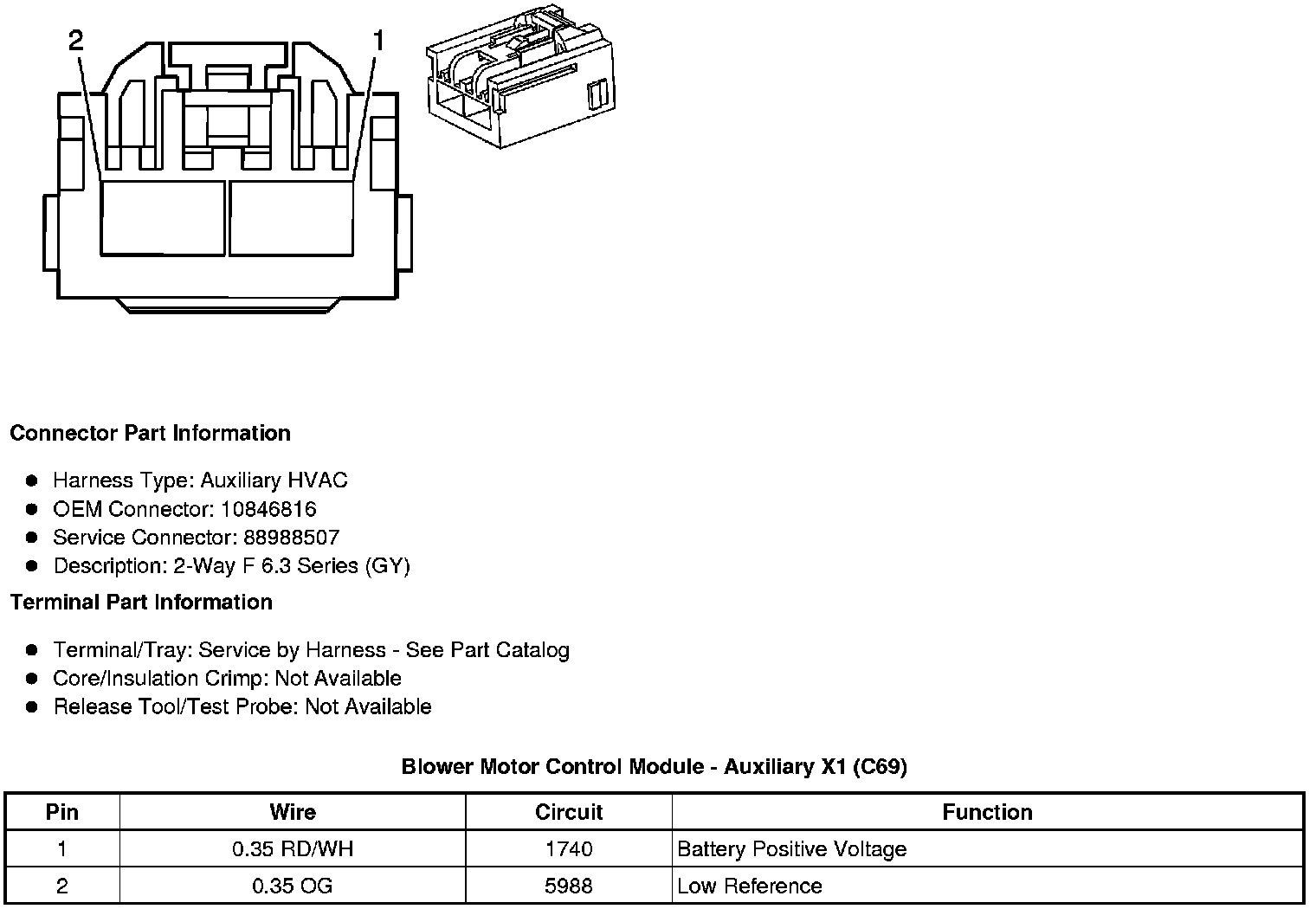

Blower Motor Control Module - Auxiliary X1 (C69)

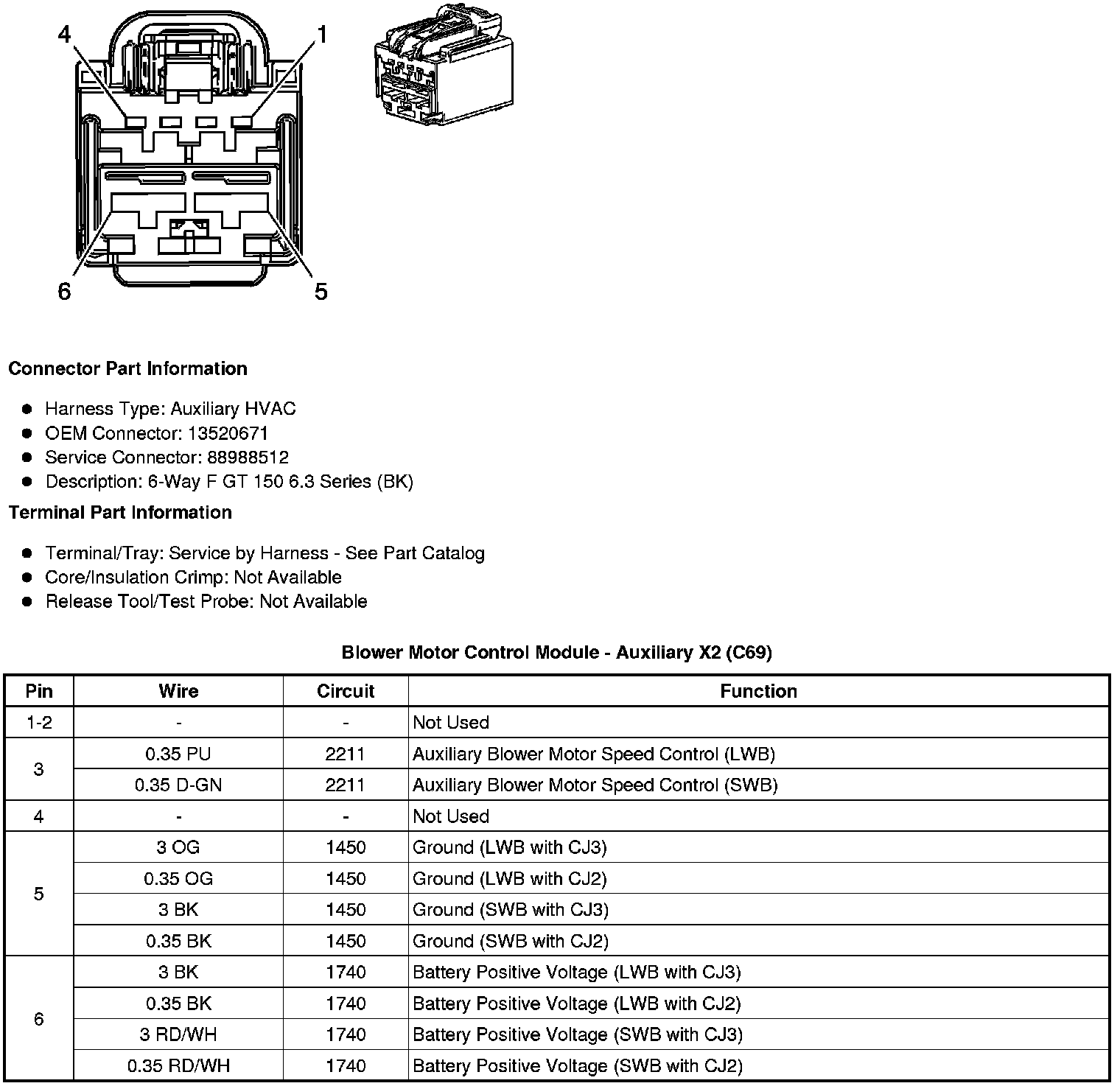

Blower Motor Control Module - Auxiliary X2 (C69)
