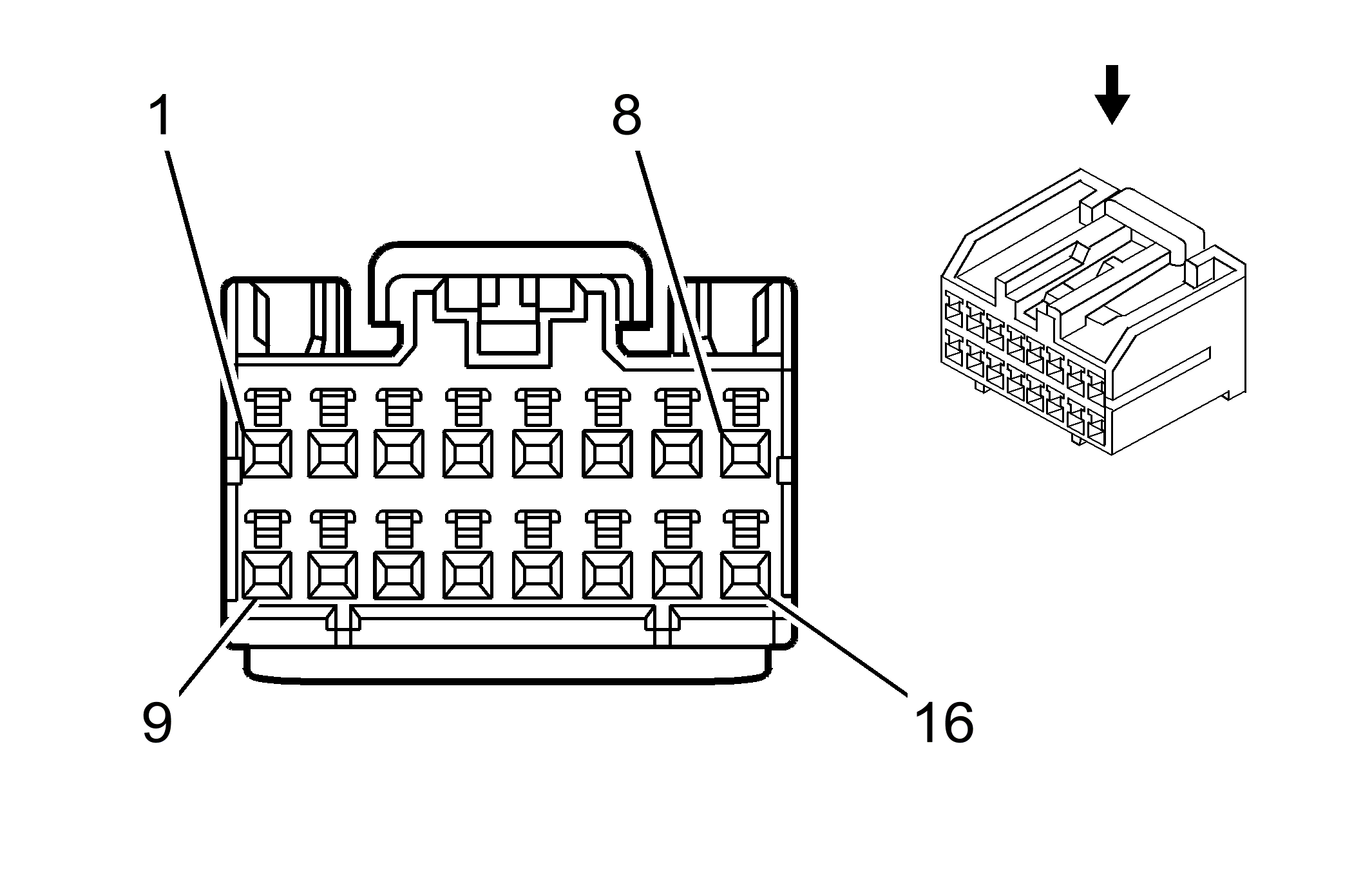

Vehicle Communication Interface Module (VCIM) X3 (UE1 with U3R, U3U or UVB)
Courtesy of GENERAL MOTORS CORP. Vehicle Communication Interface Module (VCIM) X3 (UE1 with U3R, U3U or UVB)
| Pin |
Wire |
Circuit |
Function |
| 1 |
- |
- |
Not Used |
| 2 |
0.35 PK |
5149 |
Voice Recognition Audio Signal |
| 3 |
- |
- |
Not Used |
| 4 |
0.35 PK/BK |
5152 |
Low Reference |
| 5 |
0.35 BARE |
1792 |
Drain Wire (Z75 or Z88) |
| 0.5 BARE |
1792 |
Drain Wire (X88) |
| 6-16 |
- |
- |
Not Used |
Connector Part Information
- Harness Type: Instrument Panel (Y91)
- Harness Type: Instrument Panel Extension (except Y91)
- OEM Connector: 15431359
- Service Connector: 88988722
- Description: 16-Way F Micro-Pack 100A Series (GY)
|
Terminal Part Information
- Terminal/Tray: 15445905/23
- Core/Insulation Crimp: J/J
- Release Tool/Test Probe: 12180559/J-35616-16 (L-GN)
|
