Connect Procedure

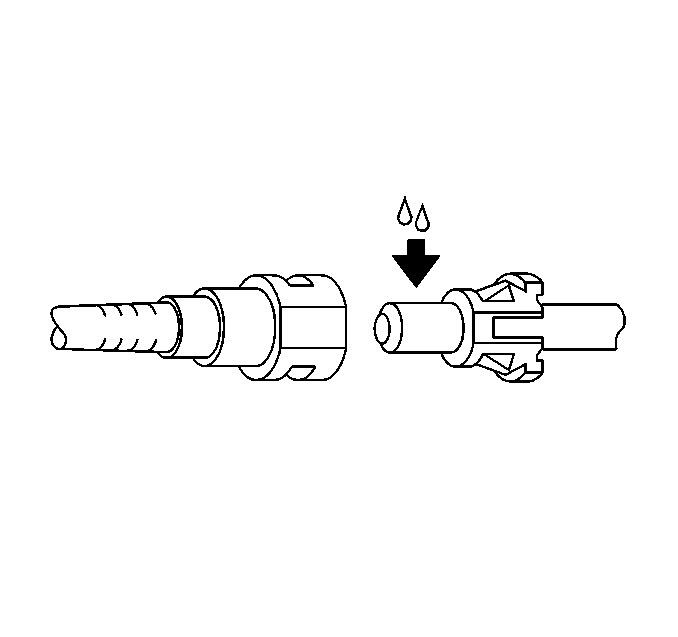

    Fig 1: Lubricating Male Pipe End
    GM155425Courtesy of GENERAL MOTORS CORP.
    WARNING: Refer to Fuel Pipe Fitting Warning .
  1. Apply a few drops of clean engine oil to the male connection end.

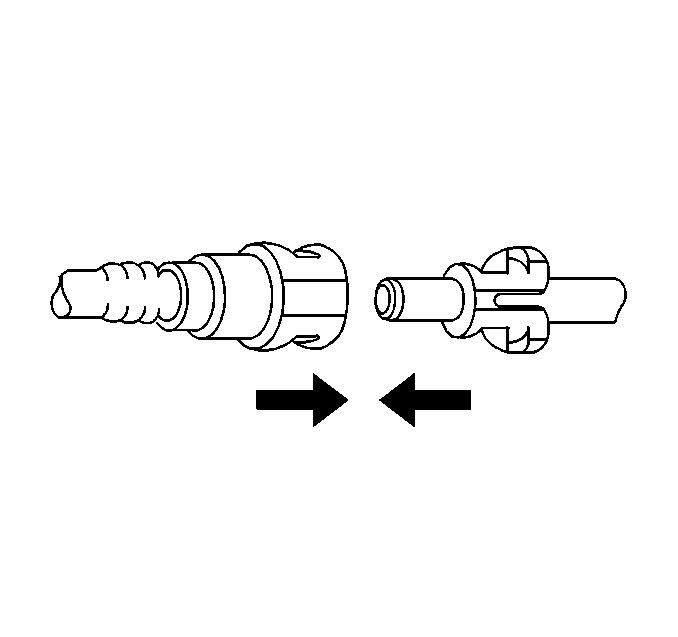

    2. Fig 2: Connecting Quick-Connect Fittings
    GM21855Courtesy of GENERAL MOTORS CORP.
  2. Push both sides of the quick-connect fitting together in order to cause the retaining feature to snap into place.

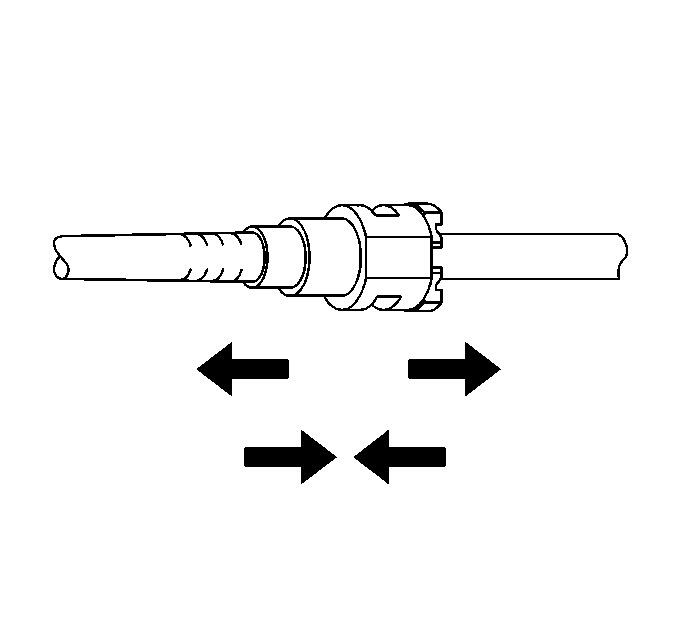

    3. Fig 3: View Of Quick-Connect Fitting
    GM155399Courtesy of GENERAL MOTORS CORP.
  3. Once installed, pull on both sides of the connection in order to make sure the connection is secure.
