Fuel Fill Pipe

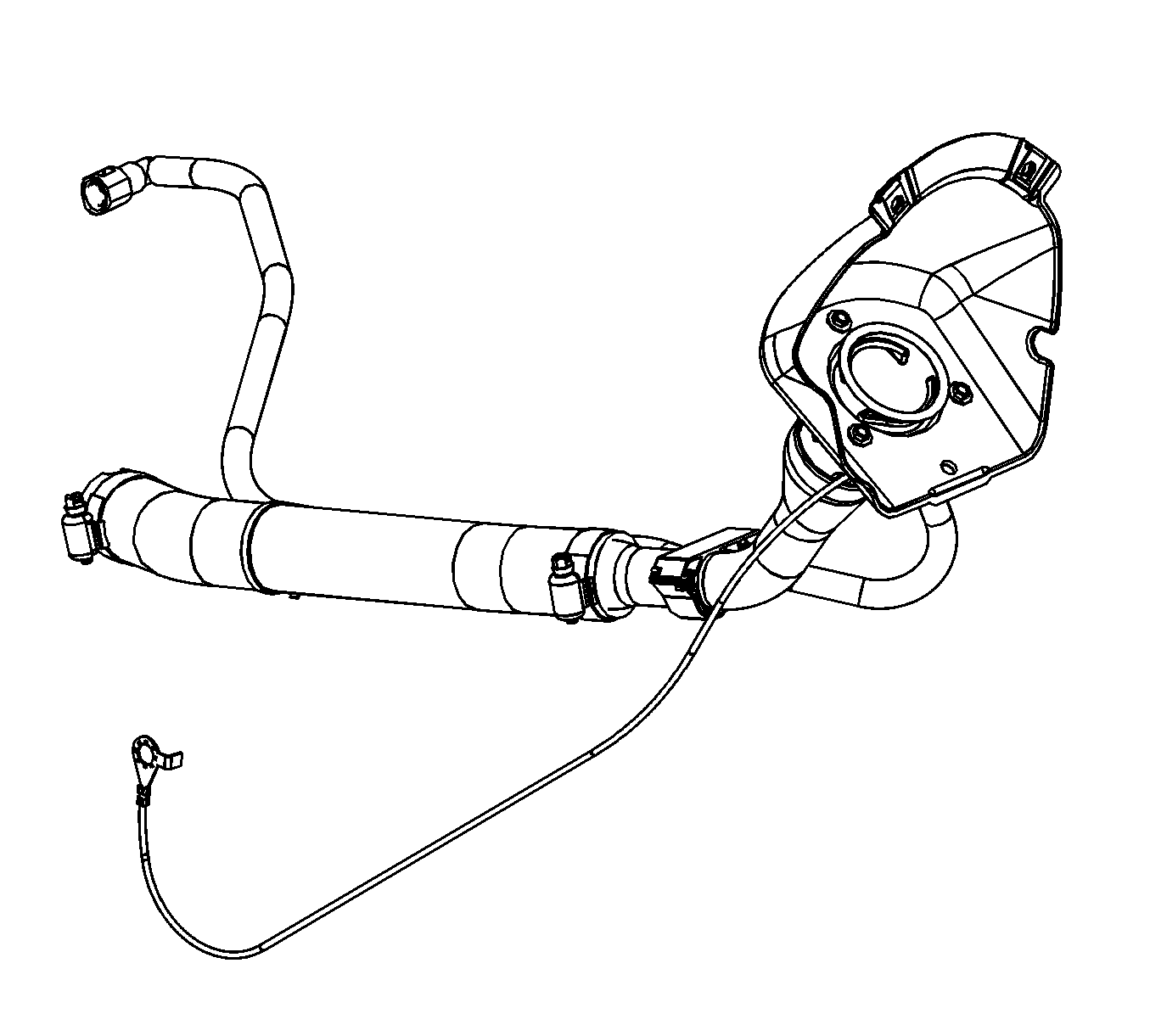

Fig 1: Fuel Fill Components (L)

Courtesy of GENERAL MOTORS CORP.

The fuel fill pipe has a built-in restrictor in order to prevent refueling with leaded fuel. When refueling dual tank applications, fuel is dispensed to both the front and rear fuel tanks at the same time. Once the fill vent is obstructed, fuel backs up the fill pipe and trips the dispensing nozzle.

Fig 2: Fuel Fill Components (R)

Courtesy of GENERAL MOTORS CORP.

The front fuel tank vent runs into the rear tank to the top of the filler pipe assembly, which in turn vents to atmosphere. The fuel tank vent valves are connected and route to the canister to collect hydrocarbon emissions during operation of the vehicle.
