Removal Procedure

    NOTE: Before cutting out a stationary window, apply a double layer of masking tape around the perimeter of the painted surfaces and the interior trim.
  1. Remove the fixed antenna mast if equipped. Refer to Radio Antenna Replacement .
  2. Open the hood.
  3. Remove the window wiper arms. Refer to Windshield Wiper Arm Replacement (Chevrolet Hybrid Two-mode) or Windshield Wiper Arm Replacement (Conventional) .
  4. Remove the air inlet grille panel. Refer to Air Inlet Grille Panel Replacement .
    5. NOTE: If the outside moisture sensor was remove from the windshield the lens must be replaced.
  5. Remove the outside moisture sensor lens. Refer to Windshield Outside Moisture Sensor Lens Replacement .
  6. Remove the inside rearview mirror. Refer to Inside Rearview Mirror Replacement .
    7. Fig 1: View Of Front Door Sealing Weatherstrips & Side Reveal Molding Screws
    GM1743196Courtesy of GENERAL MOTORS CORP.
  7. Reposition the front door sealing weatherstrips (1) in order to access the side reveal molding screws. You do not have to remove the front door sealing weatherstrip completely from the vehicle.
    8. Fig 2: Removing/Installing Screws From Window Side Reveal Moldings
    GM1743200Courtesy of GENERAL MOTORS CORP.
  8. Remove the screws from the left and the right sides of window side reveal moldings.
  9. Remove the reveal side moldings from the vehicle.
    10. WARNING: If broken glass falls into the defroster outlets, it can be blown into the passenger compartment and cause personal injury.
  10. Cover the following parts to protect from broken glass:
    1. The upper dash pad
    2. The defroster outlets and A/C outlets
    3. The seats and the carpeting
    11. Fig 3: Window Lower Supports
    GM698561Courtesy of GENERAL MOTORS CORP.
    NOTE: The window lower supports have molded locks with a urethane adhesive strip on the back side. Once the window lower stops have been removed, the stops must be replaced.
  11. Remove the window lower supports (1) by using a flat-bladed tool, lightly prying upward in the middle until the support releases.
    12. WARNING: Refer to Glass and Sheet Metal Handling Warning .
    Fig 4: Separating Urethane Adhesive From Window
    GM379881Courtesy of GENERAL MOTORS CORP.
    NOTE: Keep the cutting edge of the tool against the window in order to properly separate the urethane adhesive from the window.
  12. Use J-24402-A:  Glass Sealant Cold Knife Remover, J-39032:  Stationary Window Removal Tool, or equivalent in order to remove the window.
    • Leave a base of urethane on the pinch-weld flange.
    • The only suitable lubrication is clear water.
    13. Fig 5: Separating Bottom Of Window
    GM379883Courtesy of GENERAL MOTORS CORP.
  13. Remove the bottom of the window from the urethane adhesive using a long utility knife or similar tool.

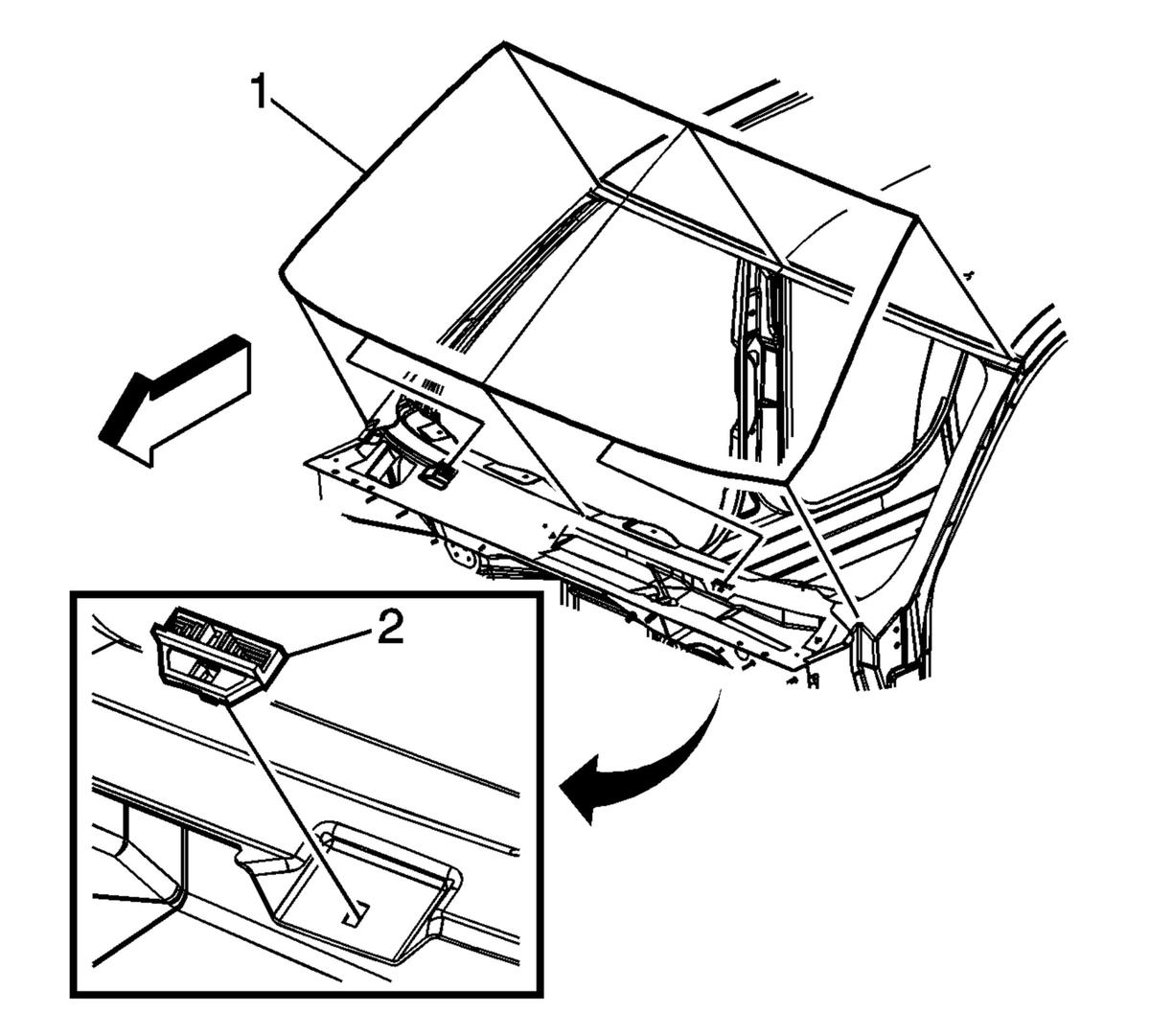

    14. Fig 6: Dry Fitting The Window
    GM1672200Courtesy of GENERAL MOTORS CORP.
  14. With the aid of an assistant remove the window (1) from the vehicle.
