Defogger Schematics

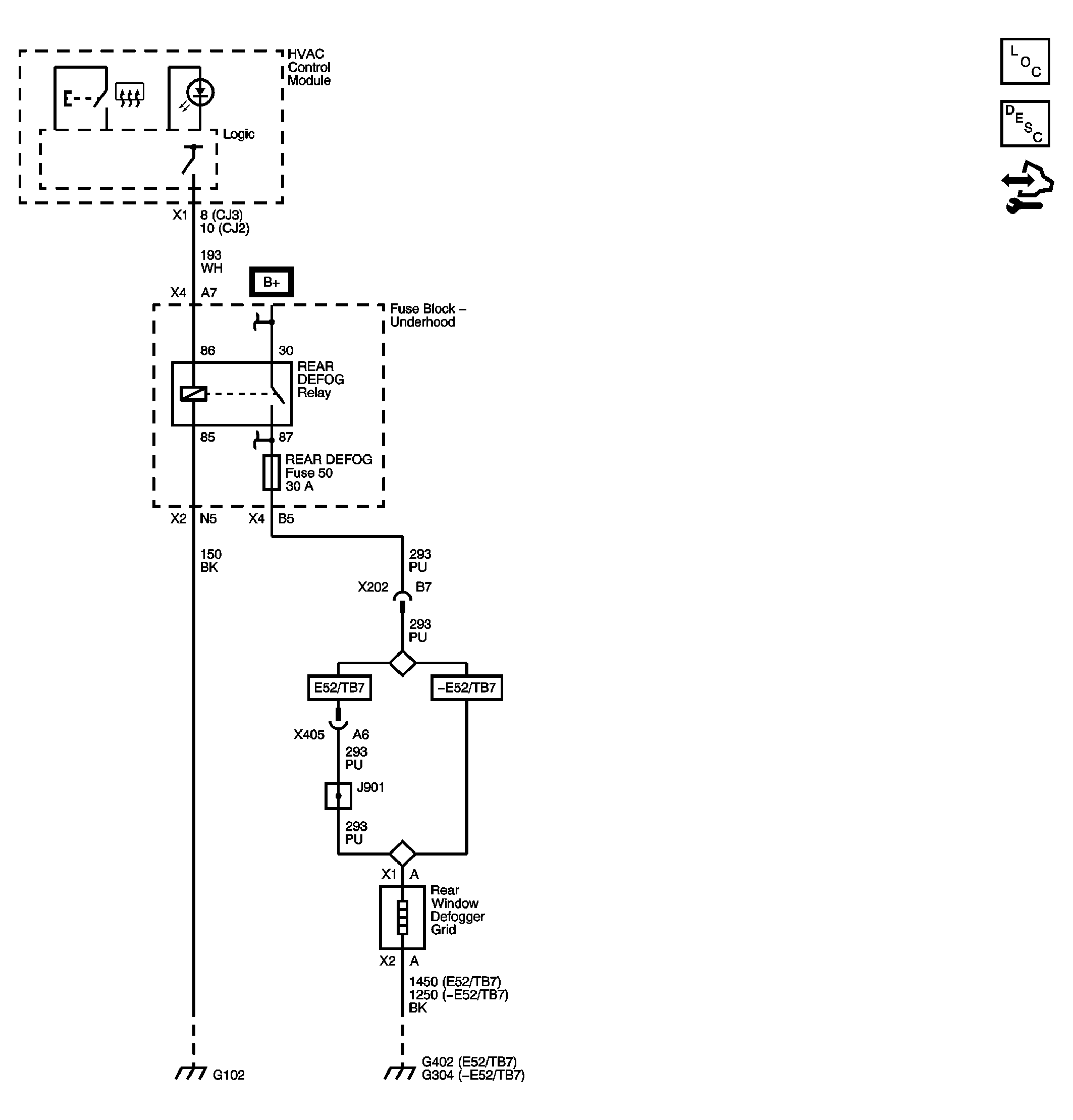

Fig 1: Defogger Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
