Installation Procedure

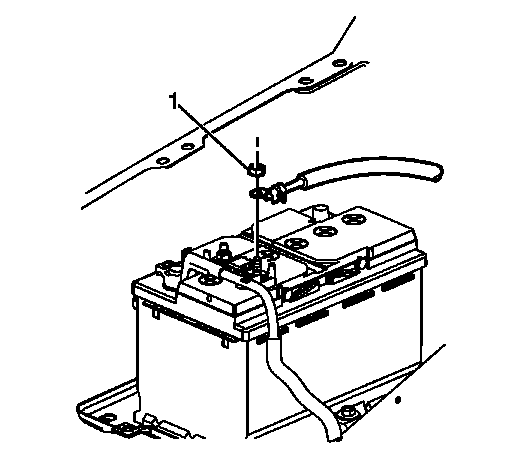

Fig 1: Battery Positive Cable Nut

Courtesy of GENERAL MOTORS CORP.

CAUTION: Refer to Fastener Caution .

Install the battery positive cable to the battery fuse block with nut (1) and tighten to 10 N.m (88 lb in)

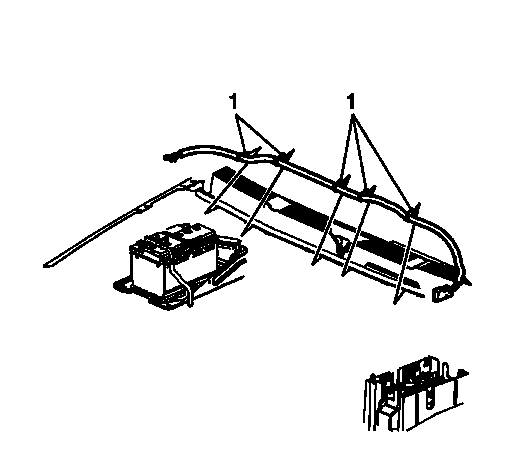

Fig 2: Battery Positive Cable Retainers

Courtesy of GENERAL MOTORS CORP.

Install the battery positive cable retainers (1) to the upper plenum.Install the battery positive cable clip nuts (1) to the studs on the upper plenum.

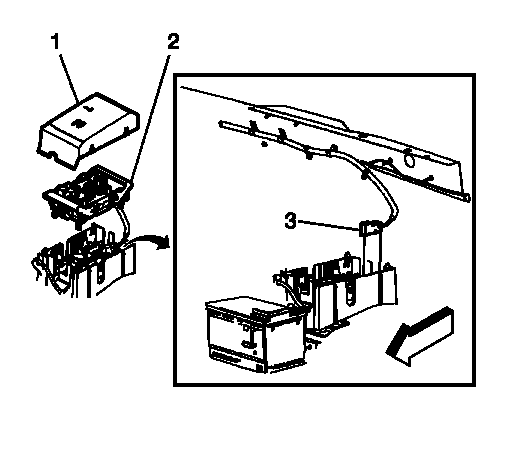

Fig 3: Underhood Fuse Block Cover, Retainers & Battery Positive Connector

Courtesy of GENERAL MOTORS CORP.

Install the battery positive cable connector (3) to the underhood fuse block.
Ensure that the underhood fuse block retainers (2) are in the open position.
Position and engage the junction block to the 4 bracket pivots, push the retainers (2) down into the locked position.
Install the underhood fuse block cover.
Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
