Installation Procedure

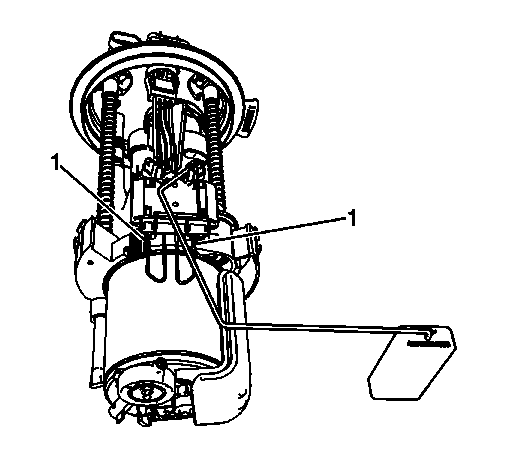

    Fig 1: Fuel Level Sensor Electrical Connectors
    GM1823400Courtesy of GENERAL MOTORS CORP.
  1. Connect the fuel level sensor electrical connectors (1).
  2. Install the fuel level sensor to the module.
  3. Position and slide the fuel level sensor down until the retainers engage the sensor.
  4. Install the fuel tank module. Refer to Fuel Tank Fuel Pump Module Replacement (1500 SWB - 98.4L (26 gal) Tank + E85)  or Fuel Tank Fuel Pump Module Replacement (1500 LWB - 117.3L (31 gal) Tank + E85) .
