Installation Procedure

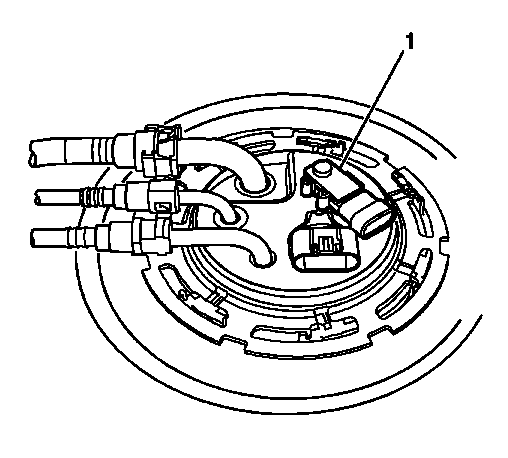

    Fig 1: Fuel Tank Pressure Sensor
    GM1312078Courtesy of GENERAL MOTORS CORP.
  1. Install the fuel tank pressure sensor (1).
  2. Install the fuel tank. Refer to Fuel Tank Replacement (1500 LWB - 117.3L (31 gal) Tank + E85)  or Fuel Tank Replacement (1500 SWB - 98.4L (26 gal) Tank + E85)  or Fuel Tank Replacement (1500 LWB - 117.3L (31 gal) Tank )  or Fuel Tank Replacement (1500 SWB - 98.4L (26 gal) Tank) .
