Installation Procedure

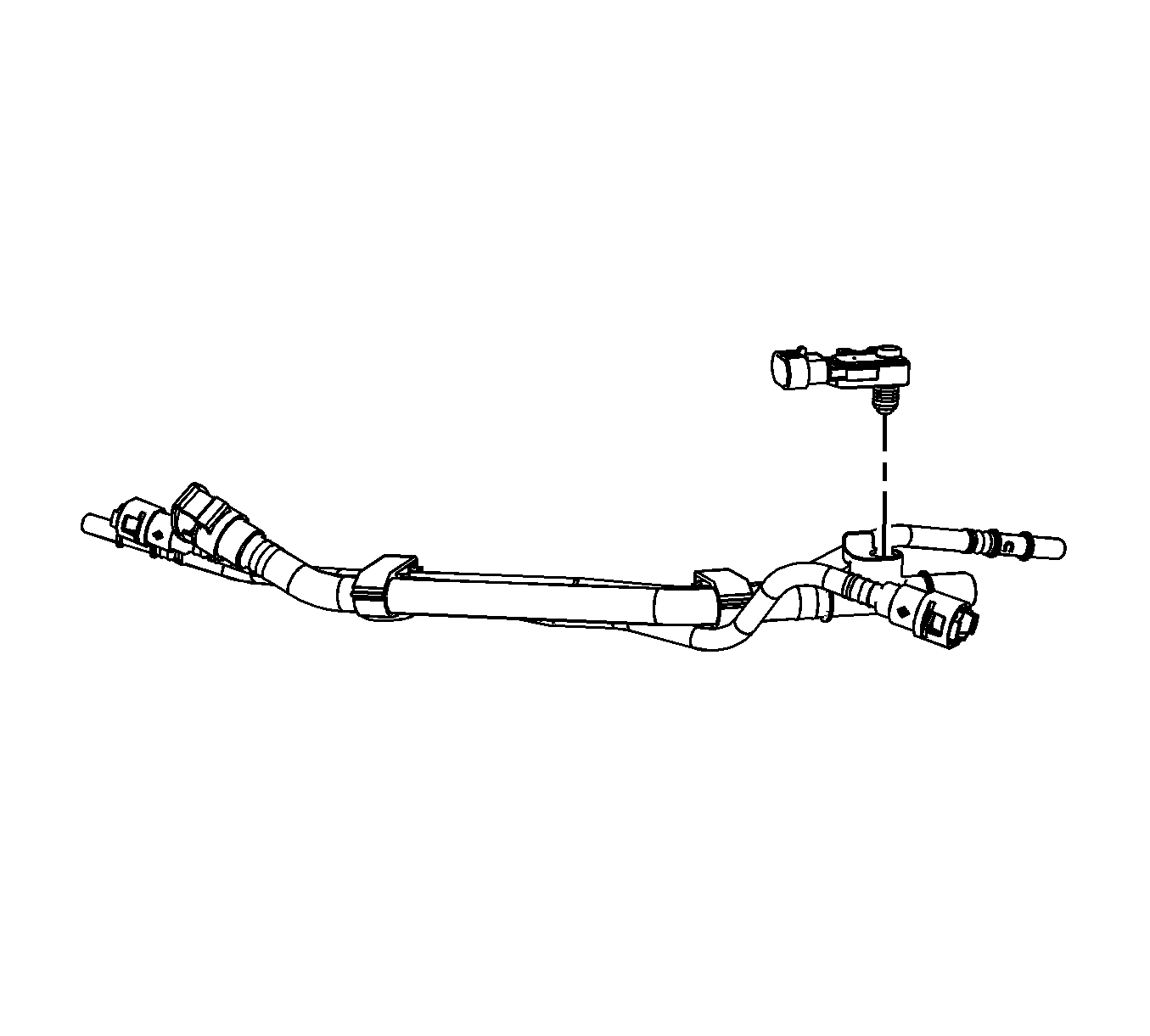

    Fig 1: View Of Fuel Tank Pressure Sensor (2500)
    GM1705812Courtesy of GENERAL MOTORS CORP.
  1. Lubricate the seal on the fuel pressure sensor.
  2. Press the fuel pressure sensor into the line.
  3. Install the intermediate fuel and EVAP lines. Refer to Fuel Hose/Pipe Assembly Replacement (1500 LWB - 117.3L (31 gal) Tank )  or Fuel Hose/Pipe Assembly Replacement (1500 SWB - 98.4L (26 gal) Tank)  or Fuel Hose/Pipe Assembly Replacement (1500 LWB - 117.3L (31 gal) Tank + E85)  or Fuel Hose/Pipe Assembly Replacement (1500 SWB - 98.4L (26 gal) Tank + E85) .
