Mass Airflow Sensor with Intake Air Temperature Sensor Replacement

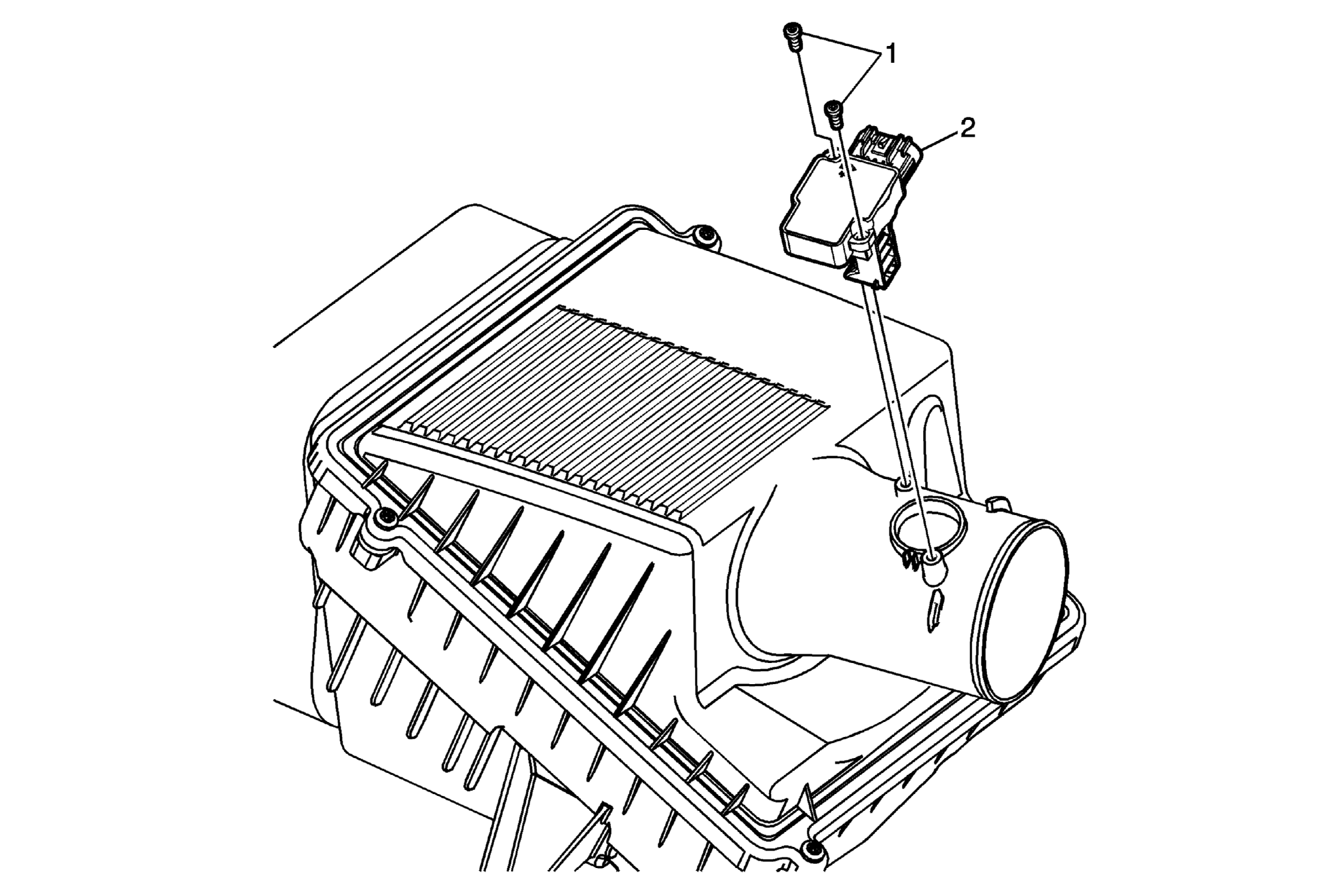

Fig 1: Mass Airflow Sensor with Intake Air Temperature Sensor Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Mass Airflow Sensor Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten:  1.5 N.m(13 lb in)
2	Mass Airflow Sensor/Intake Air Temperature Sensor Procedure:  Disconnect the electrical connector.
