Connect Procedure

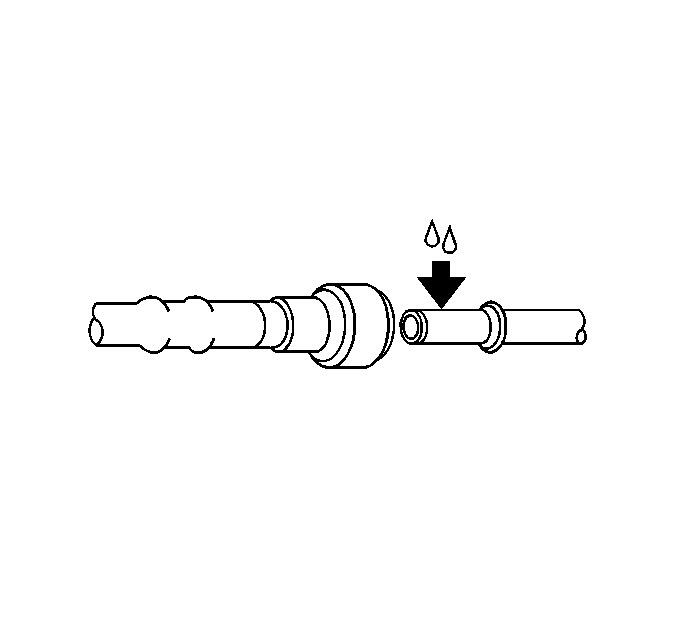

Fig 1: Oiling Male Pipe Ends (Metal Collar)

Courtesy of GENERAL MOTORS CORP.

WARNING: In order to reduce the risk of fire and personal injury, before connecting fuel pipe fittings, always apply a few drops of clean engine oil to the male pipe ends.
This will ensure proper reconnection and prevent a possible fuel leak.
During normal operation, the O-rings located in the female connector will swell and may prevent proper reconnection if not lubricated.

Apply a few drops of clean engine oil to the male connection end.

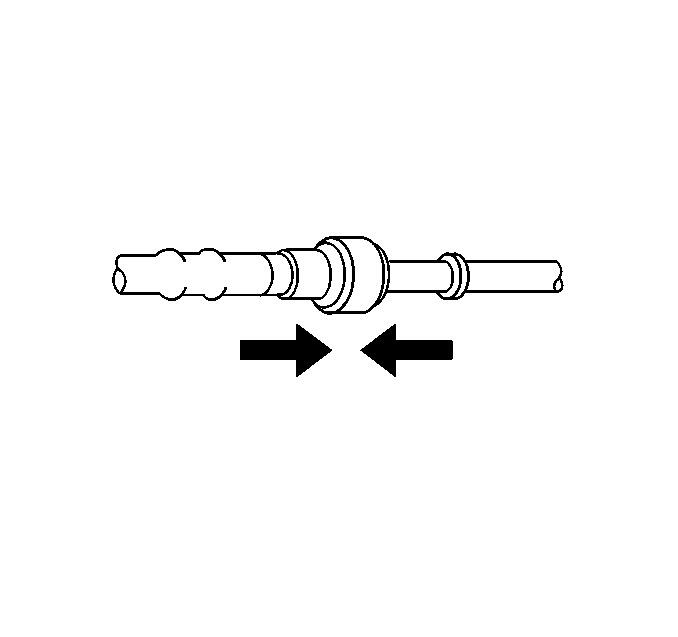

Fig 2: View Of Connectors (Metal Collar)

Courtesy of GENERAL MOTORS CORP.

Push both sides of the fitting together in order to engage the retaining tabs.

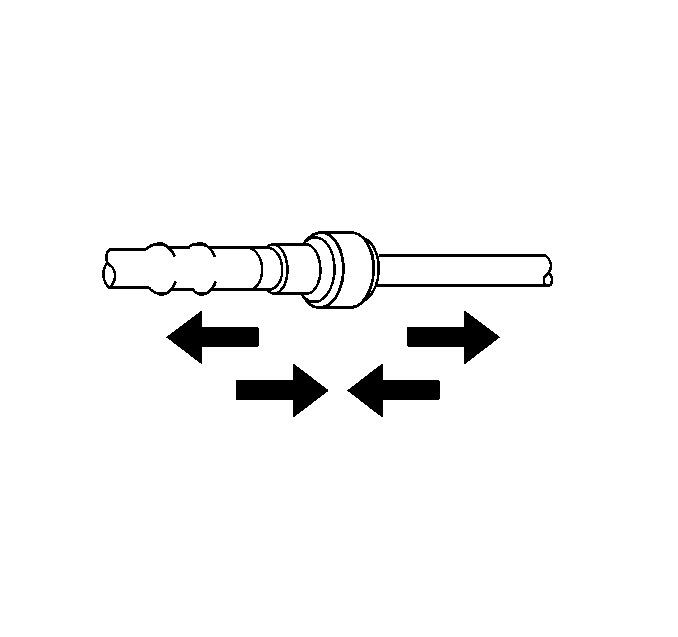

Fig 3: Ensuring Connection (Metal Collar) Is Secure

Courtesy of GENERAL MOTORS CORP.

Once installed, pull on both sides of the connection in order to ensure the connection is secure.

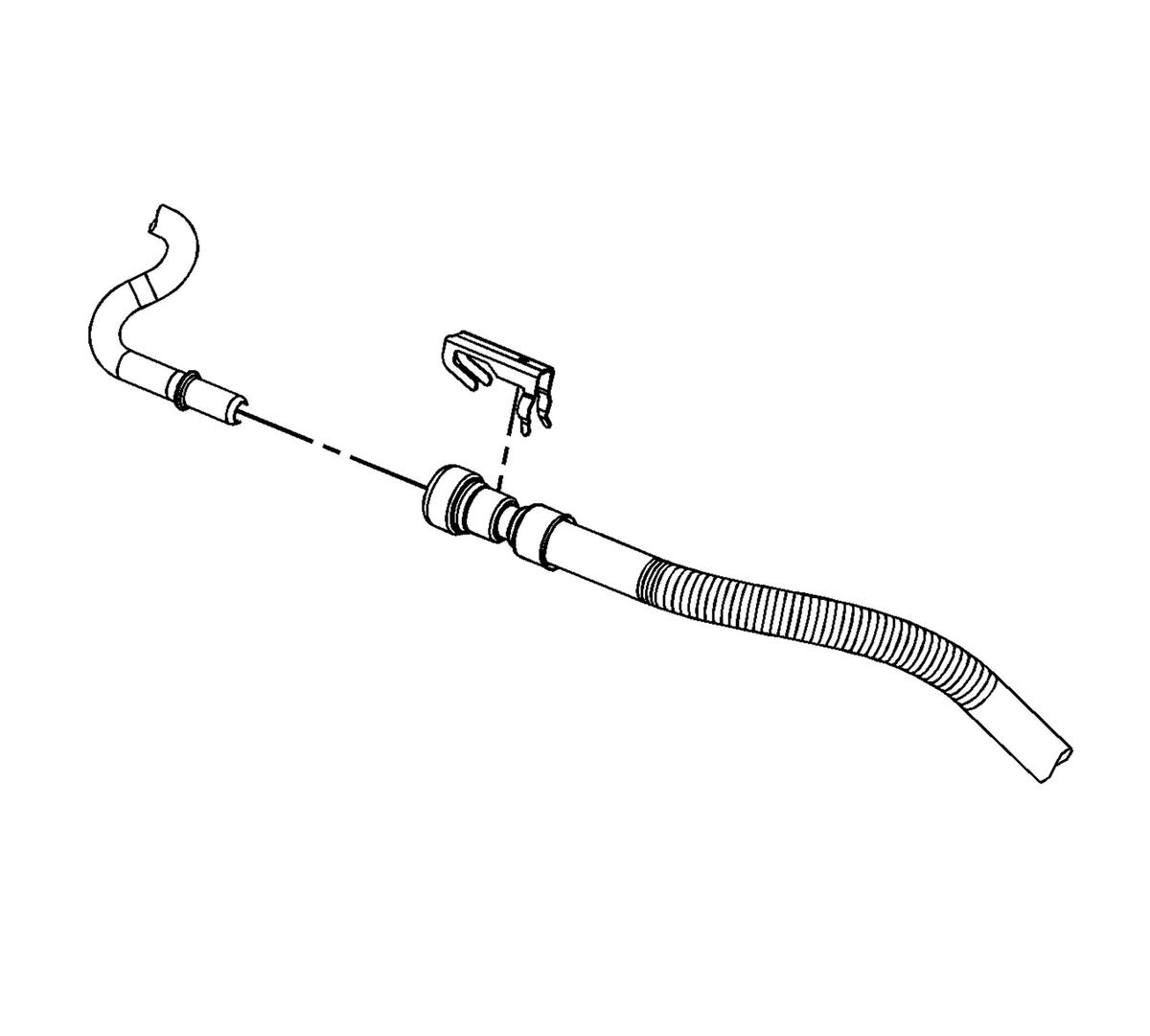

Fig 4: Fuel Feed Line To Engine Quick-Connect Fitting Retainer

Courtesy of GENERAL MOTORS CORP.

Install the fuel line retainer.
