Door Component Views

Fig 1: Driver Door Components
GM2048230Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Outside Rearview Mirror - Driver
2 Memory/Heated Seat Switch - Driver (KB6)
3 Door Lock/Window Switch - Driver
4 Outside Rearview Mirror Switch
5 Window Switches
6 Window Lock-Out Switch
7 Door Lock Switch
8 Speaker - Left Front
9 Window Motor - Driver
10 Inflatable Restraint Side Impact Sensor (SIS) - Left Front (ASF)
11 Door Latch - Driver
12 Door Courtesy Lamp - Driver (Z75)
Fig 2: Passenger Door Components
GM1714232Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Outside Rearview Mirror - Passenger
2 Door Lock/Window Switch - Passenger
3 Door Latch - Passenger
4 Inflatable Restraint Side Impact Sensor (SIS) - Right Front (ASF)
5 Door Courtesy Lamp - Passenger (Z75)
6 Speaker - Right Front
7 Window Motor - Passenger
8 Heated Seat Switch - Passenger (AN3 or KA1, without KB6)

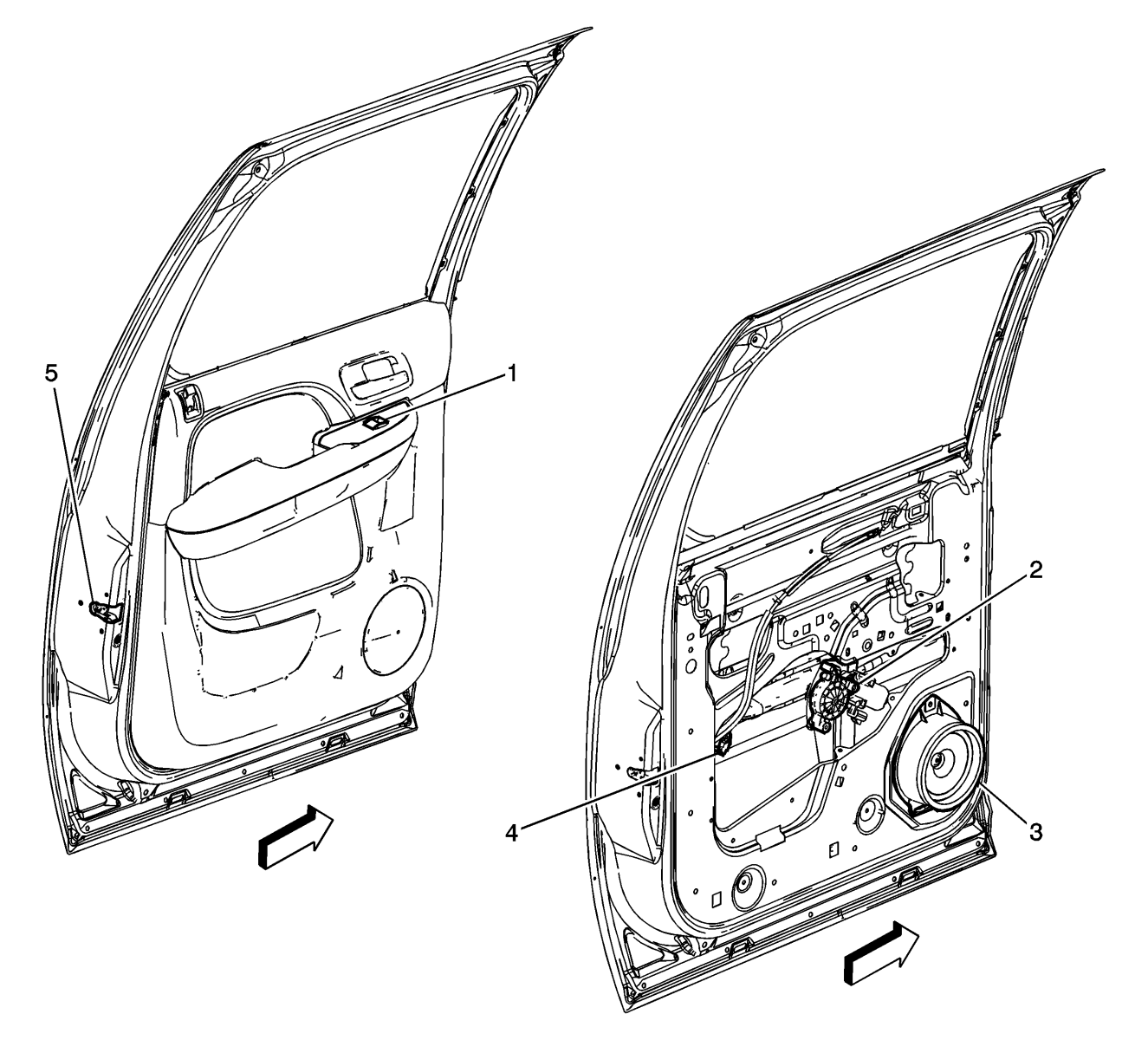

Fig 3: Left Rear Door Components
GM2048239Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Window Switch - Left Rear
2 Window Motor - Left Rear
3 Speaker - Left Rear
4 Inflatable Restraint Side Impact Sensor (SIS) - Left Rear (ASF)
5 Door Latch - Left Rear

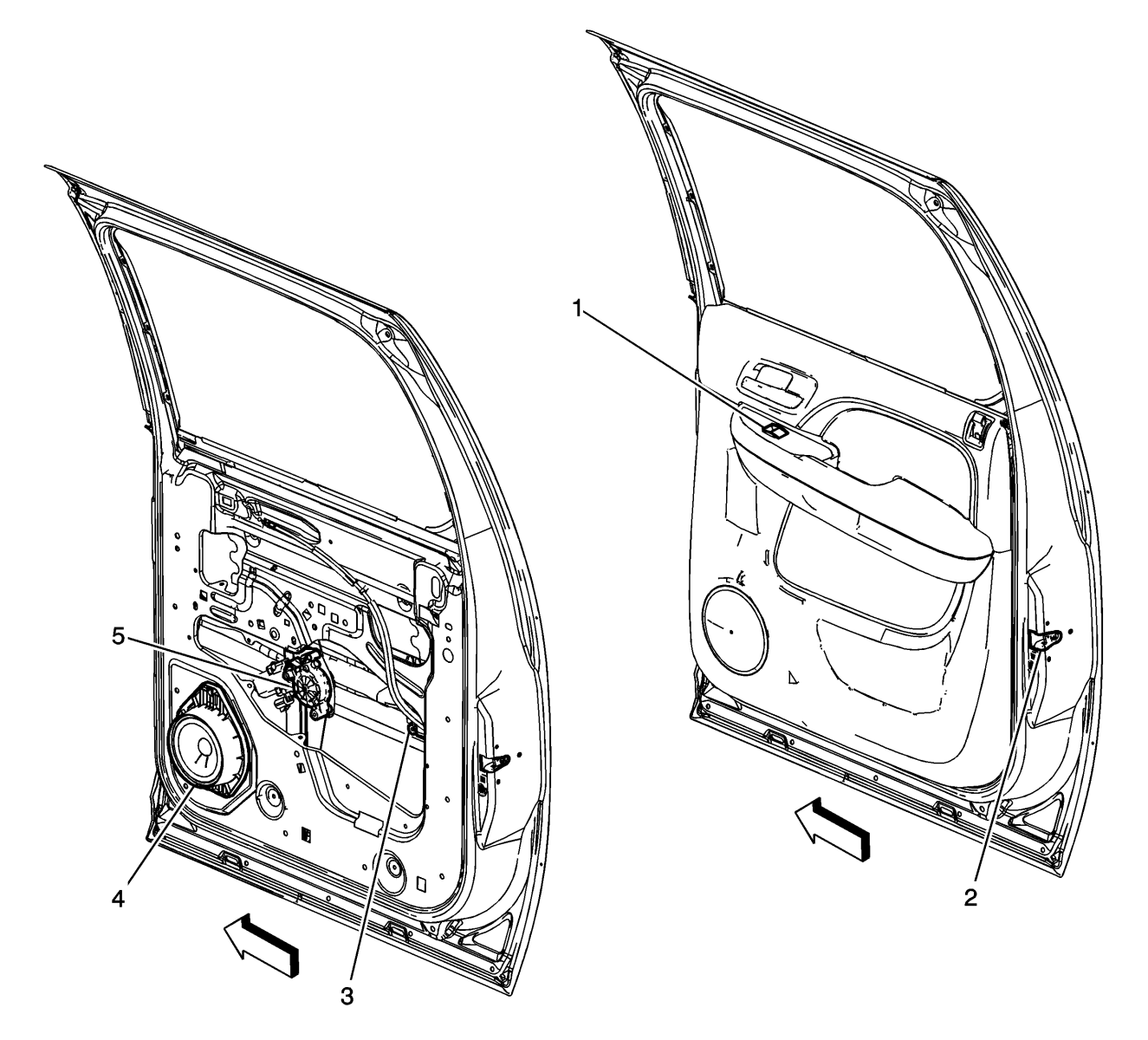

Fig 4: Right Rear Door Components
GM2048242Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Window Switch - Right Rear
2 Door Latch - Right Rear
3 Inflatable Restraint Side Impact Sensor (SIS) - Right Rear (ASF)
4 Speaker - Right Rear
5 Window Motor - Right Rear
