Ground Views

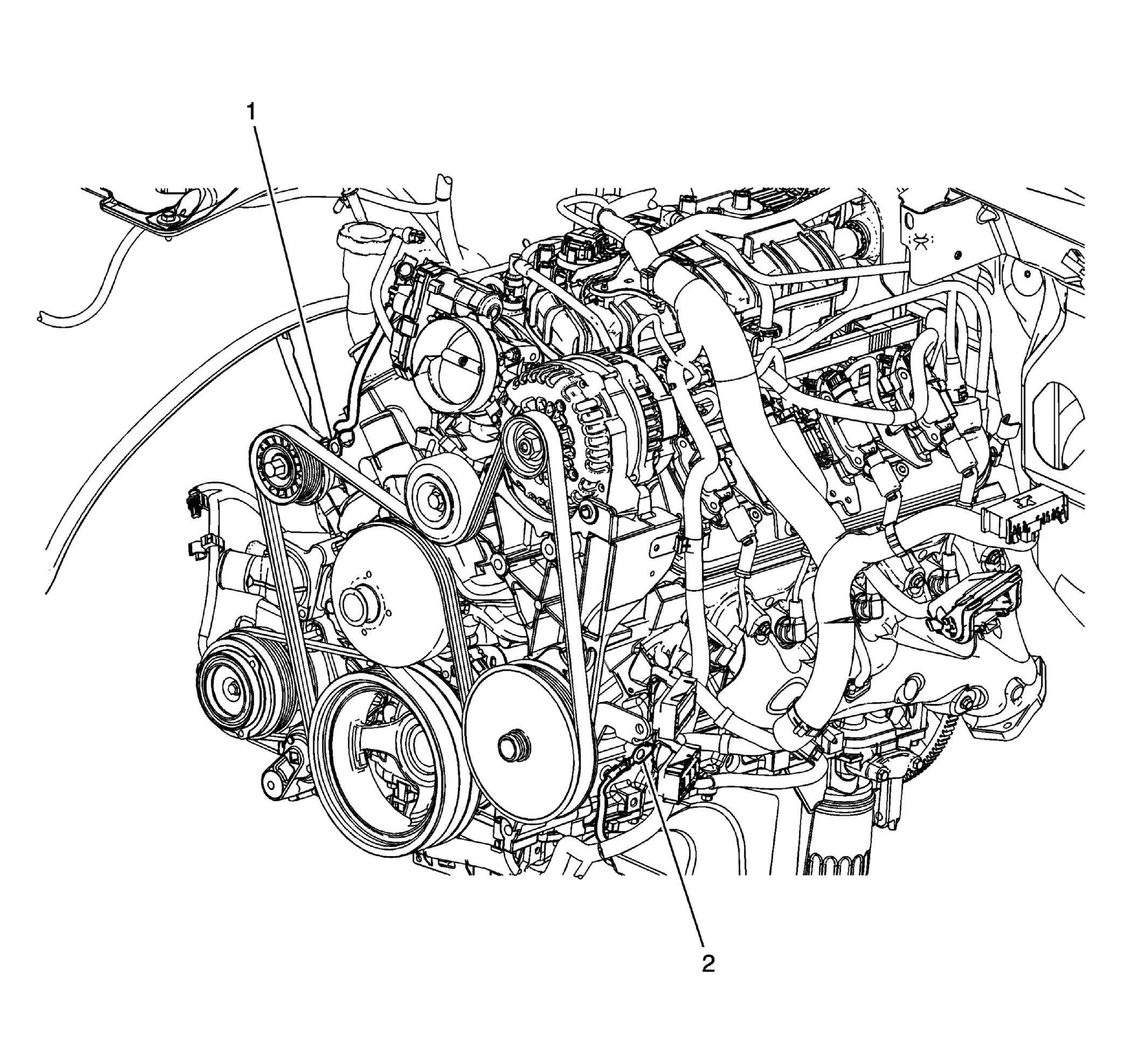

Fig 1: Engine Harness Grounds (except HP2)
GM2077107Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G103
2 G102

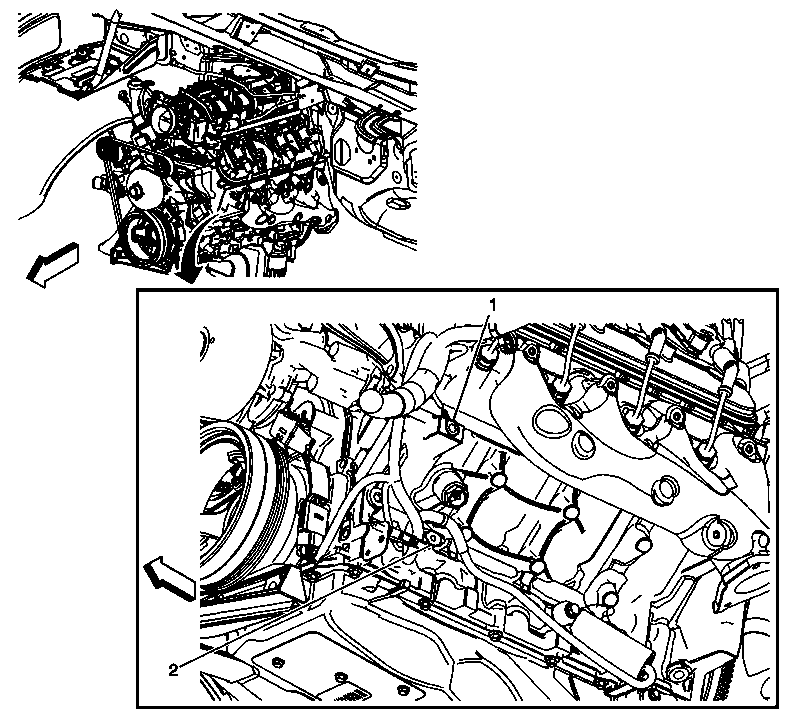

Fig 2: Engine Harness Grounds (HP2)
GM2077140Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G105
2 G103

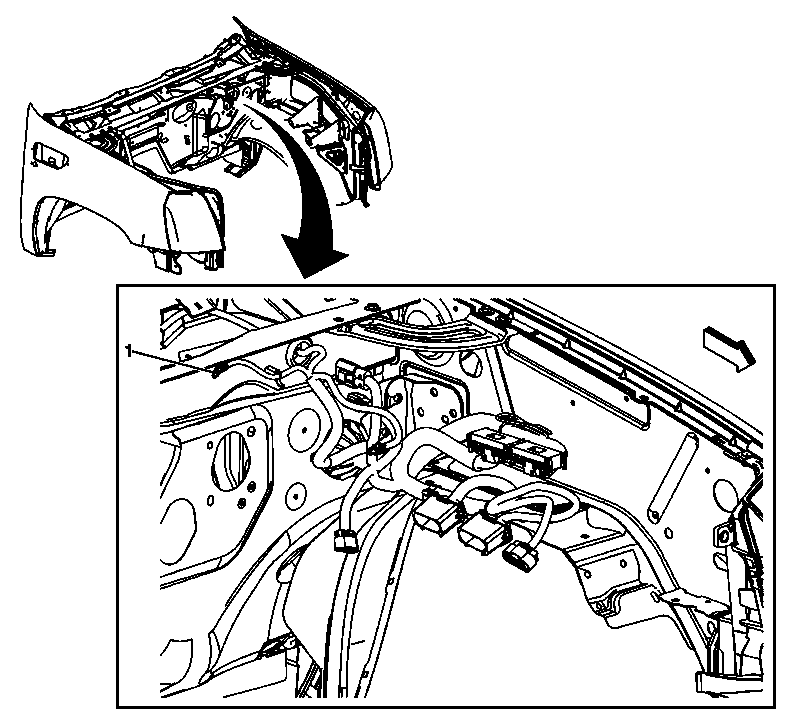

Fig 3: Instrument Panel Harness Underhood Ground
GM2077146Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G110

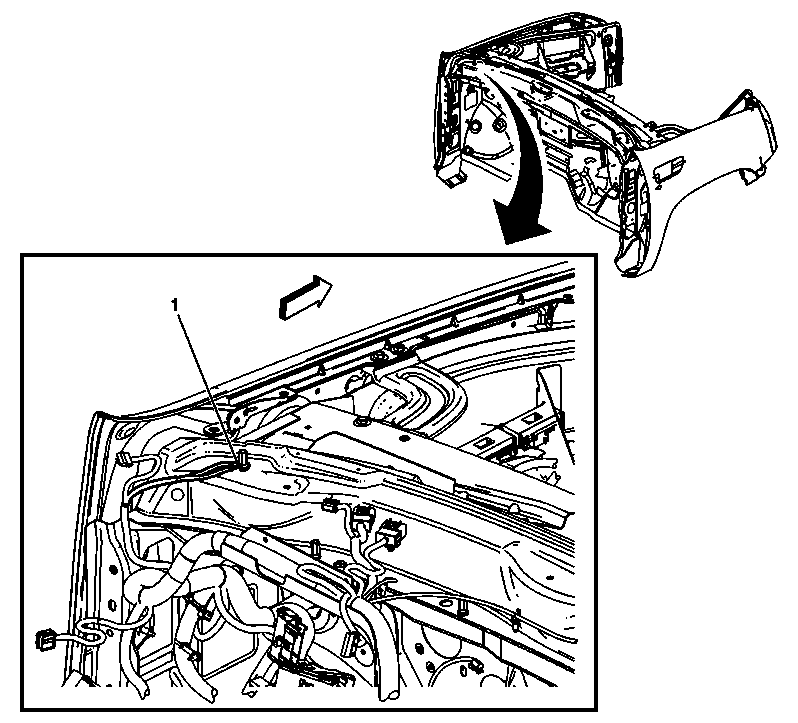

Fig 4: Instrument Panel Harness Passenger Compartment (HP2)
GM2077152Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G201

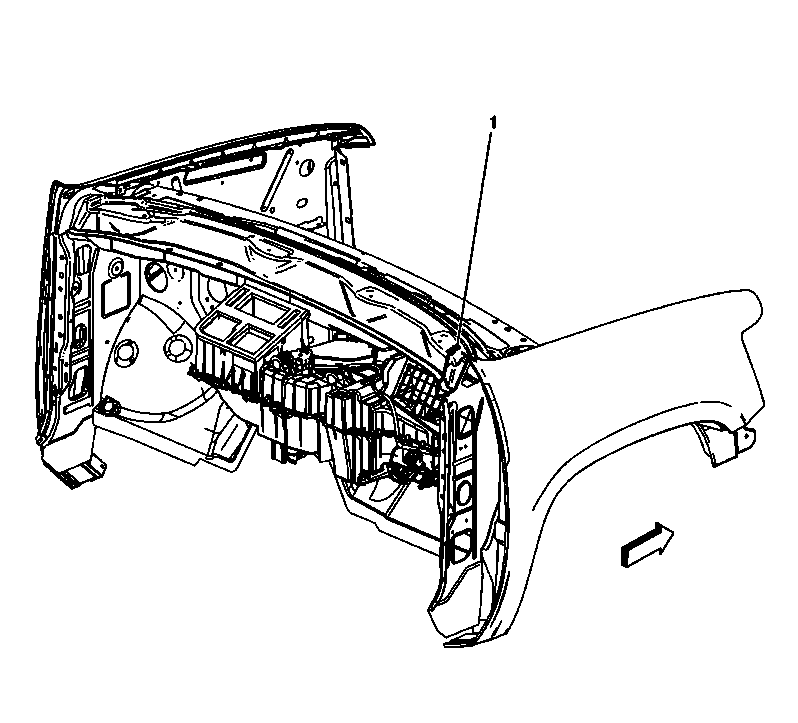

Fig 5: HVAC Grounds
GM2077160Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G200
Fig 6: Chassis Component Grounds
GM2077168Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G400
2 G305 (EXP or HP2)
3 G300

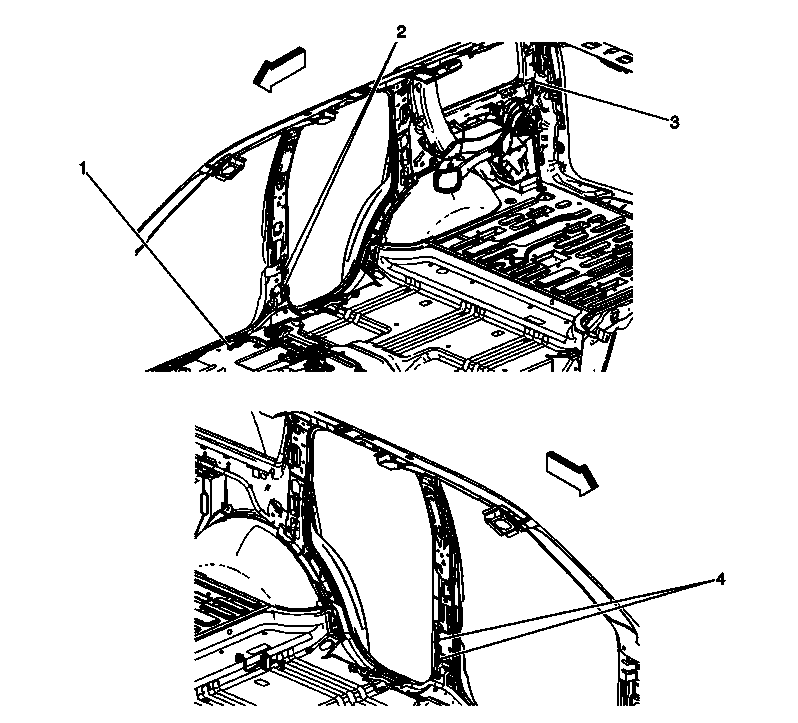

Fig 7: Body Harness Ground Views (E52 or TB7)
GM2077171Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G302
2 G304
3 G402
4 G303

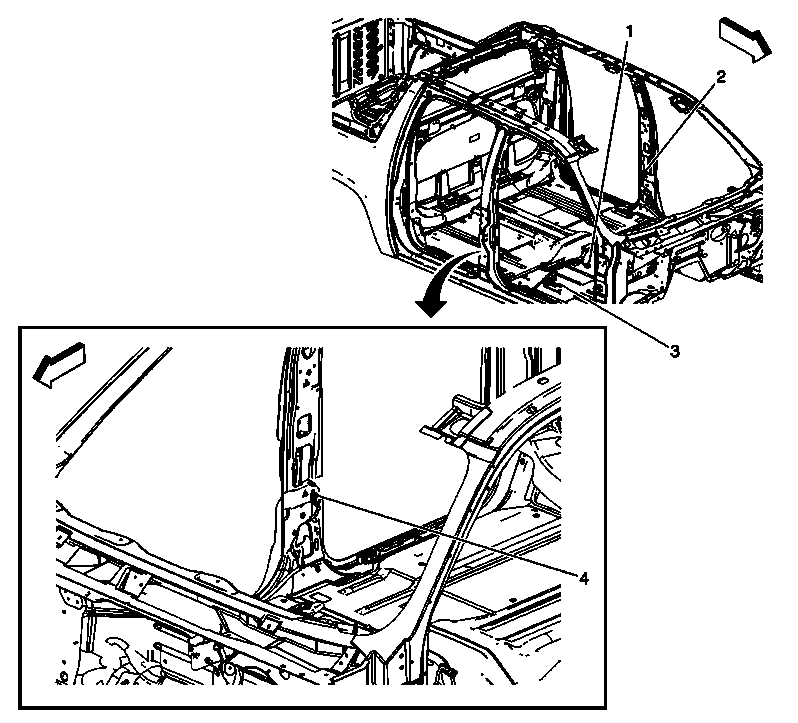

Fig 8: Body Harness Passenger Compartment (Without E52)
GM2077176Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G301
2 G303
3 G302
4 G304

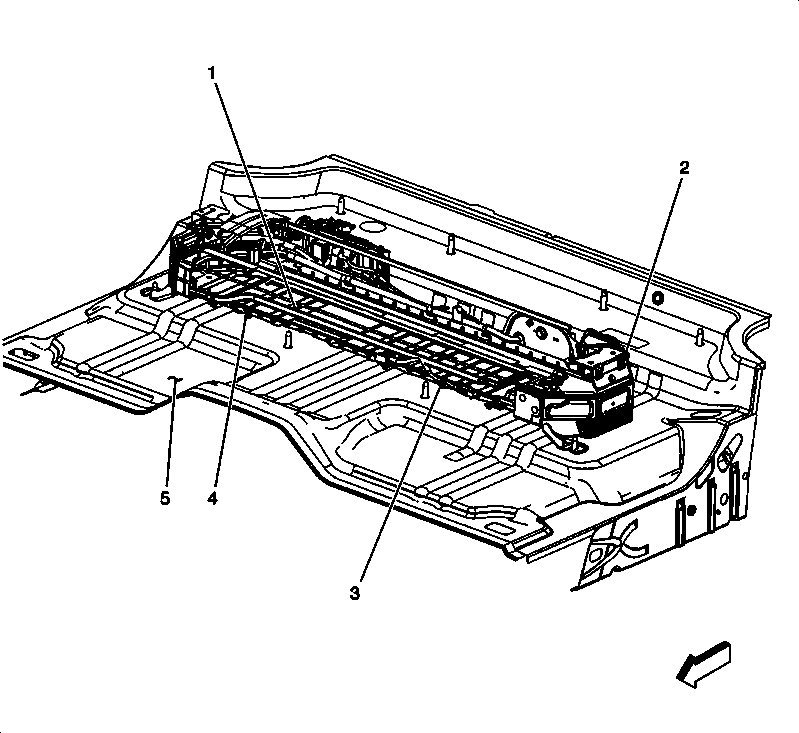

Fig 9: Drive Motor Battery Enclosure Grounds (HP2)
GM2279241Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Drive Motor Generator Battery Control Harness
2 Drive Motor Generator Battery Enclosure
3 G311
4 G312
5 Vehicle floor, 2nd row seats

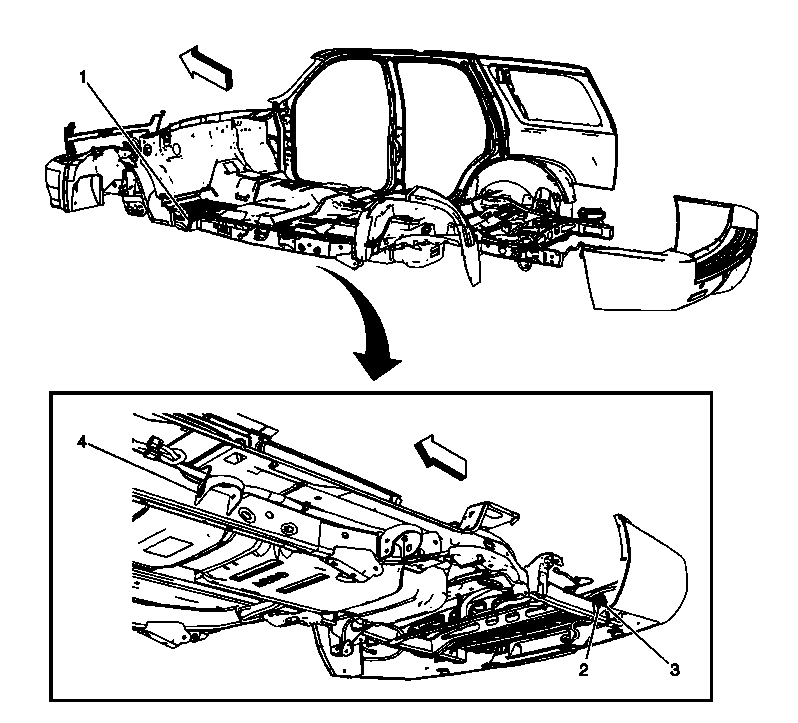

Fig 10: Chassis (HP2)
GM2101647Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G300
2 G400
3 G401
4 G305

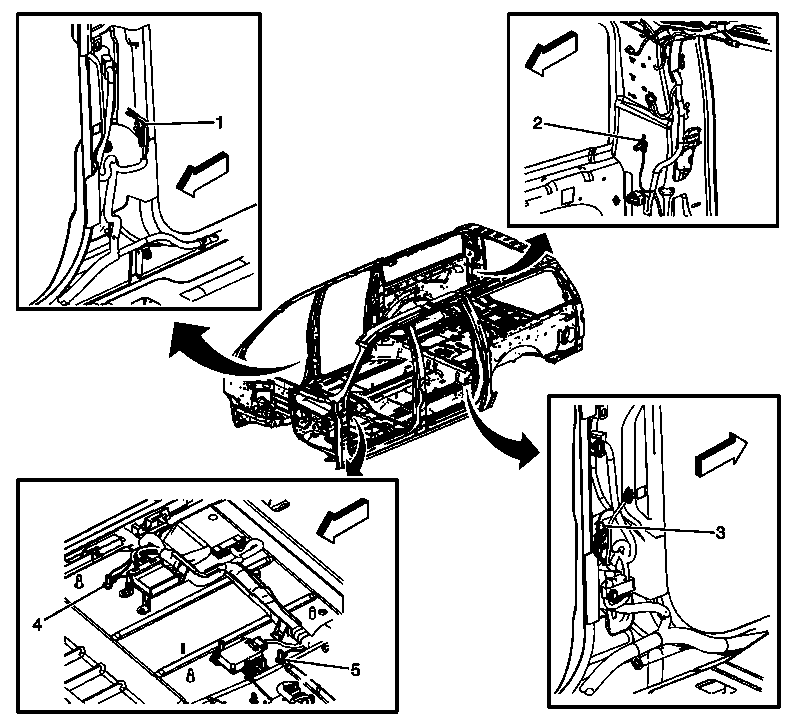

Fig 11: Body Harness - Passenger Compartment (Long Wheel Base)
GM2098073Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G304
2 G402
3 G303
4 G302
5 G301
