Communications Control Module

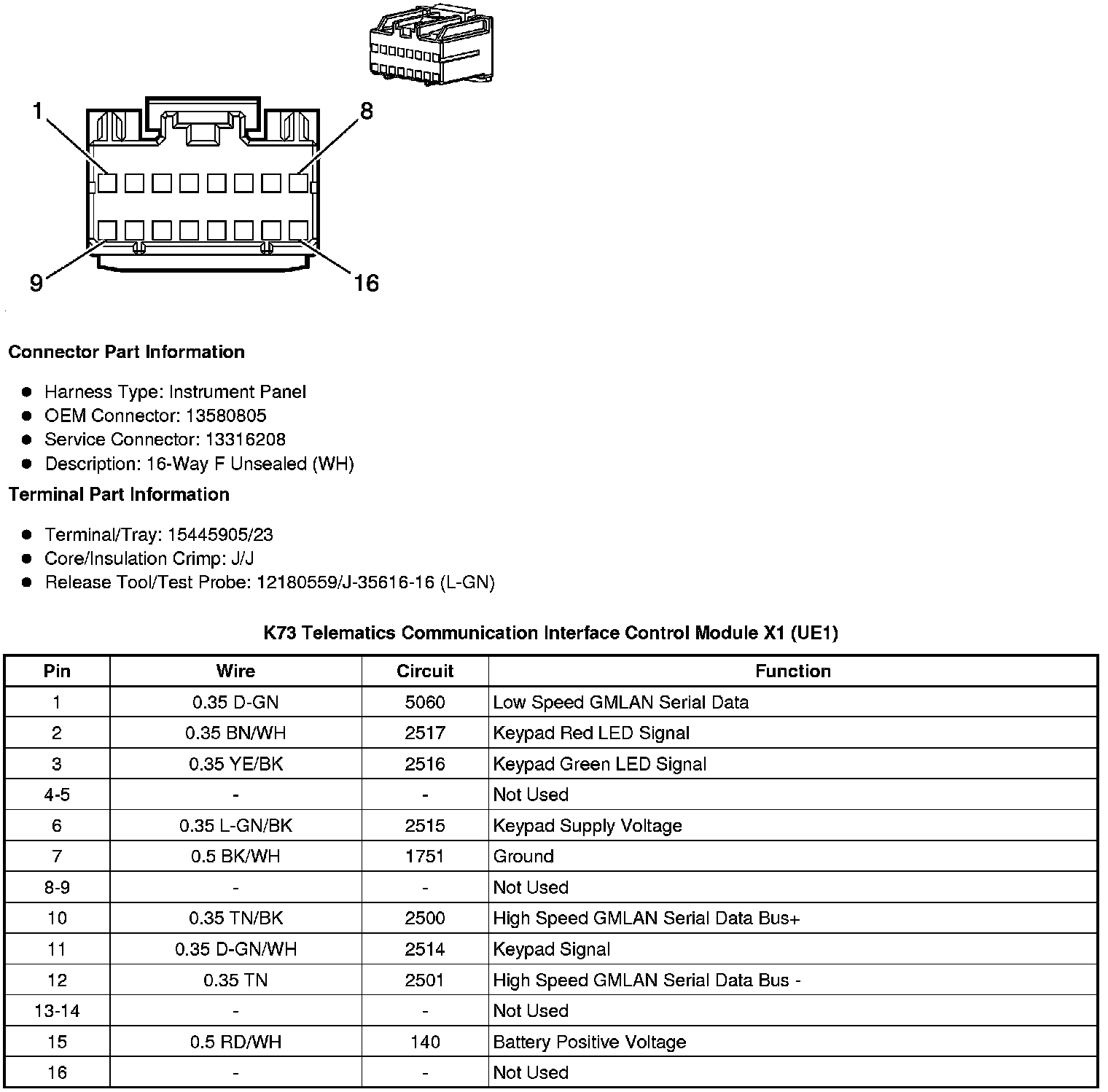

K73 Telematics Communication Interface Control Module X1 (UE1)

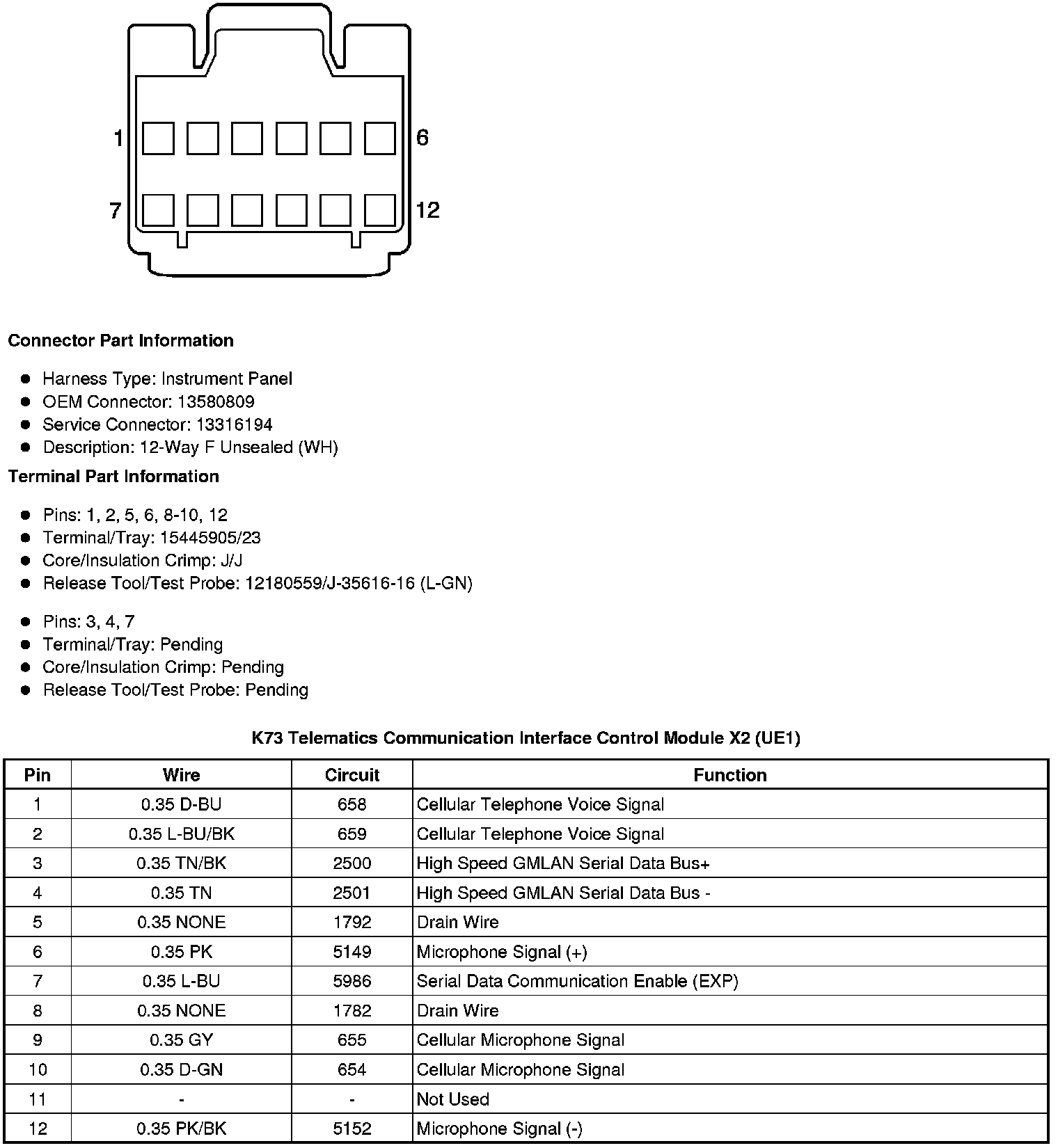

K73 Telematics Communication Interface Control Module X2 (UE1)

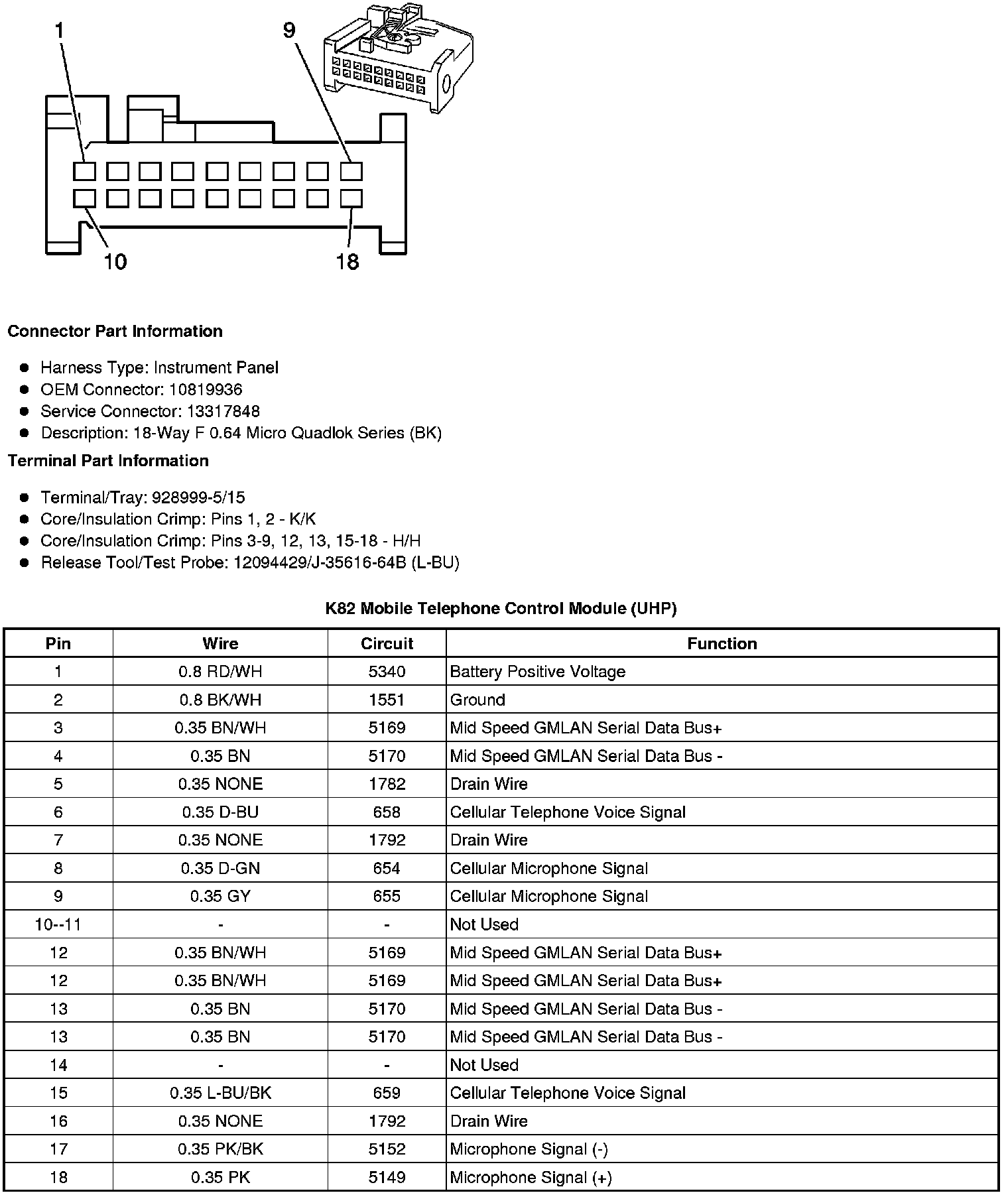

K82 Mobile Telephone Control Module (UHP)
