Control Module HVAC




Component Connector End Views

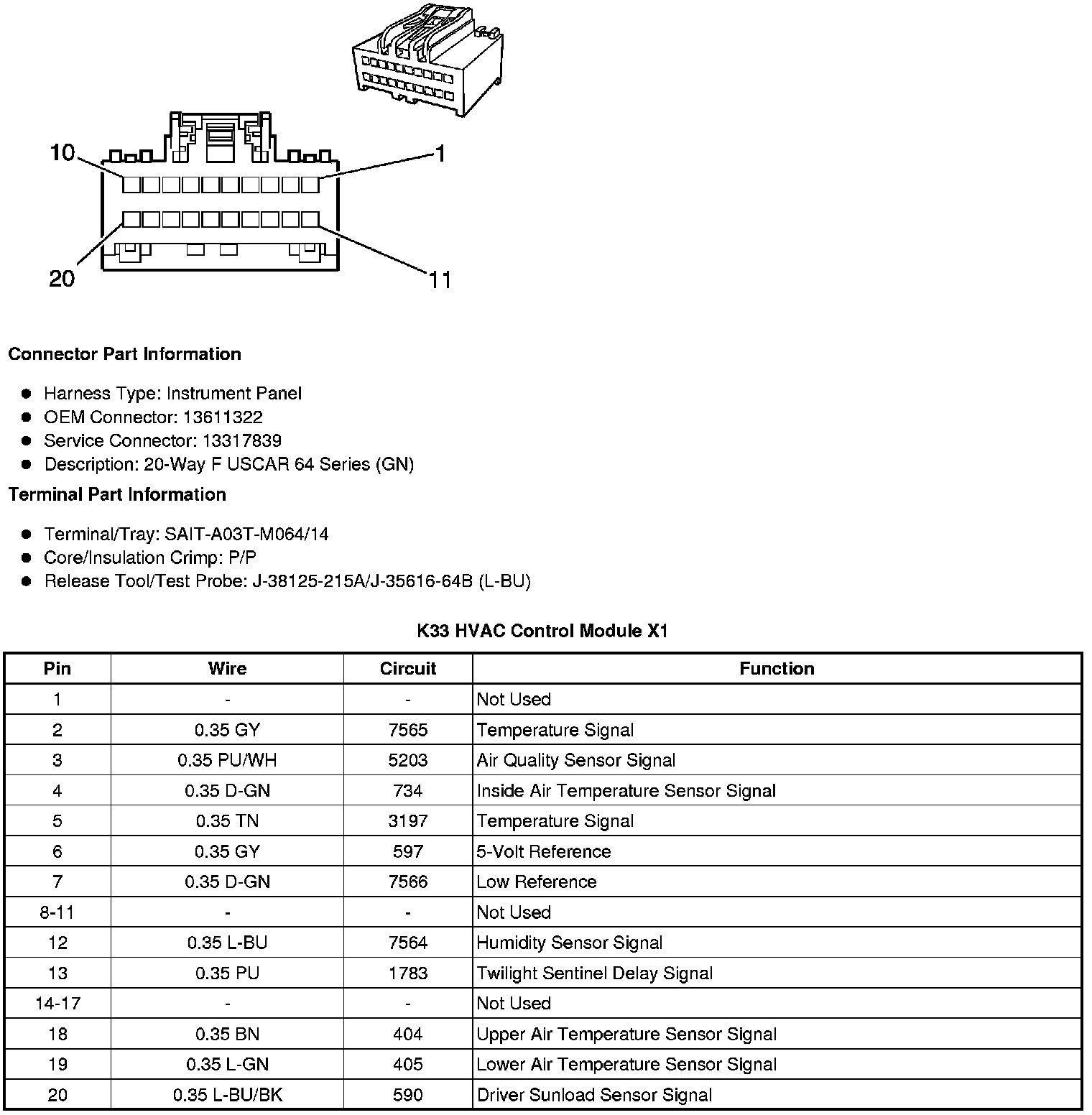

K33 HVAC Control Module X1

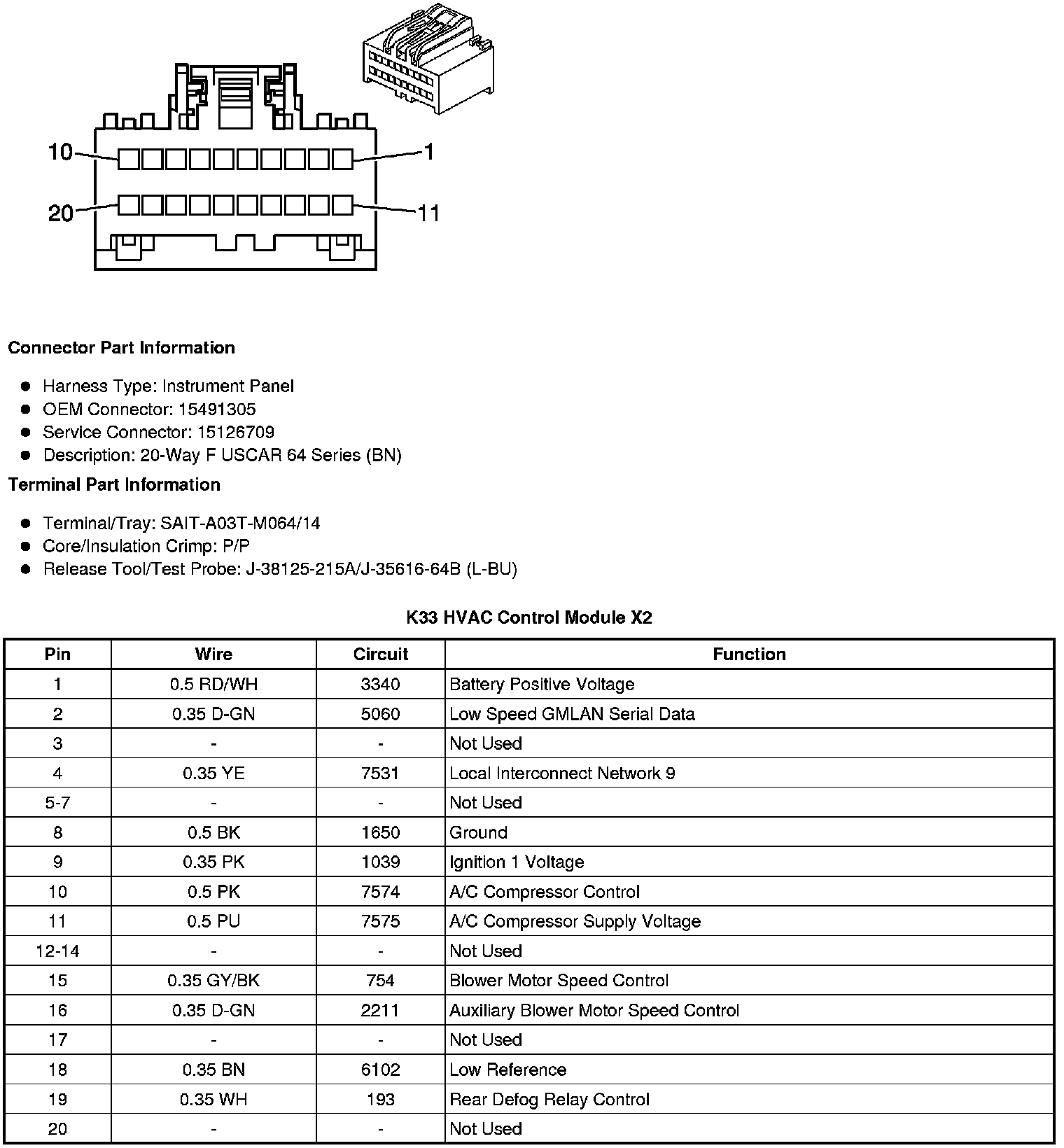

K33 HVAC Control Module X2

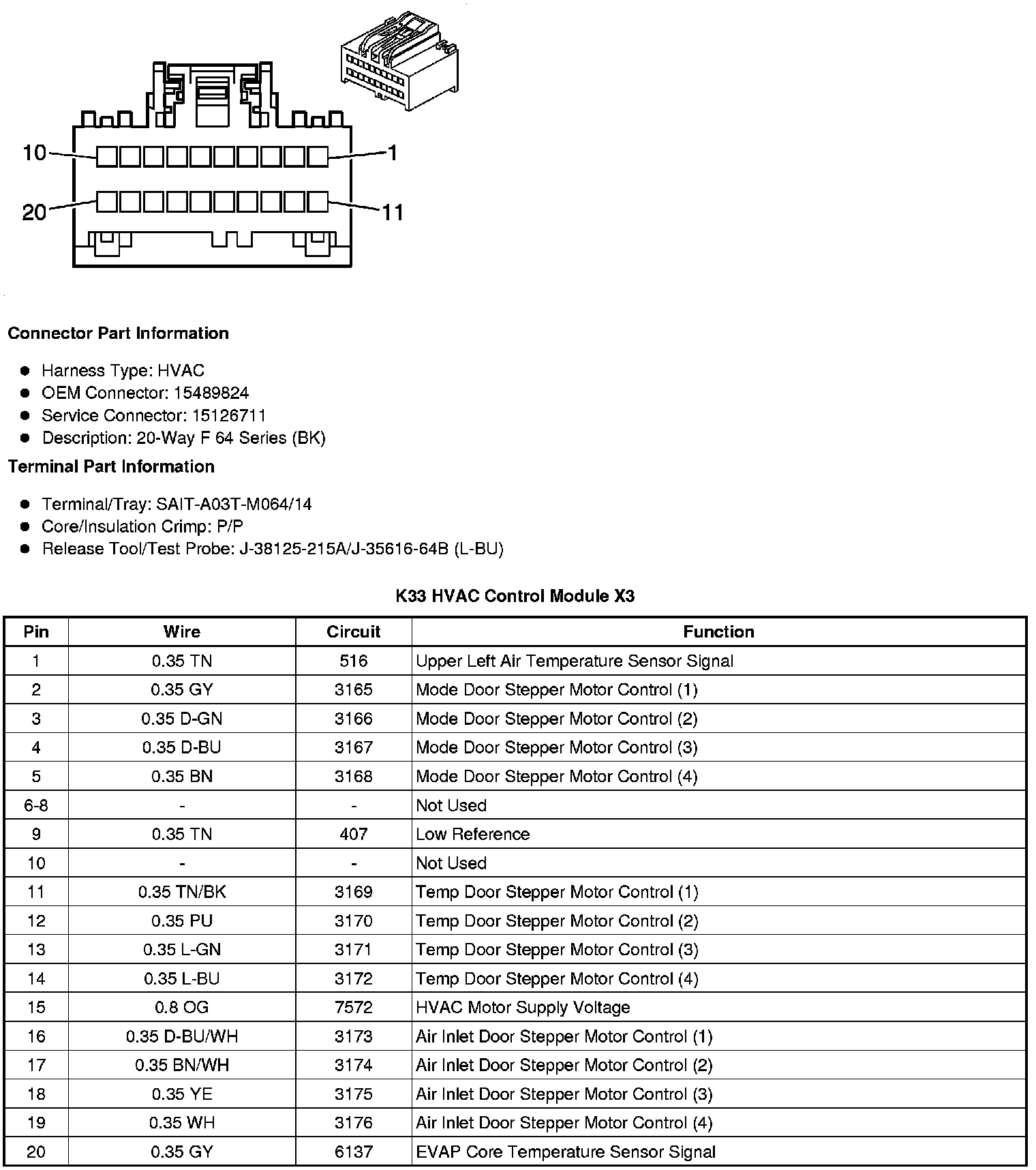

K33 HVAC Control Module X3

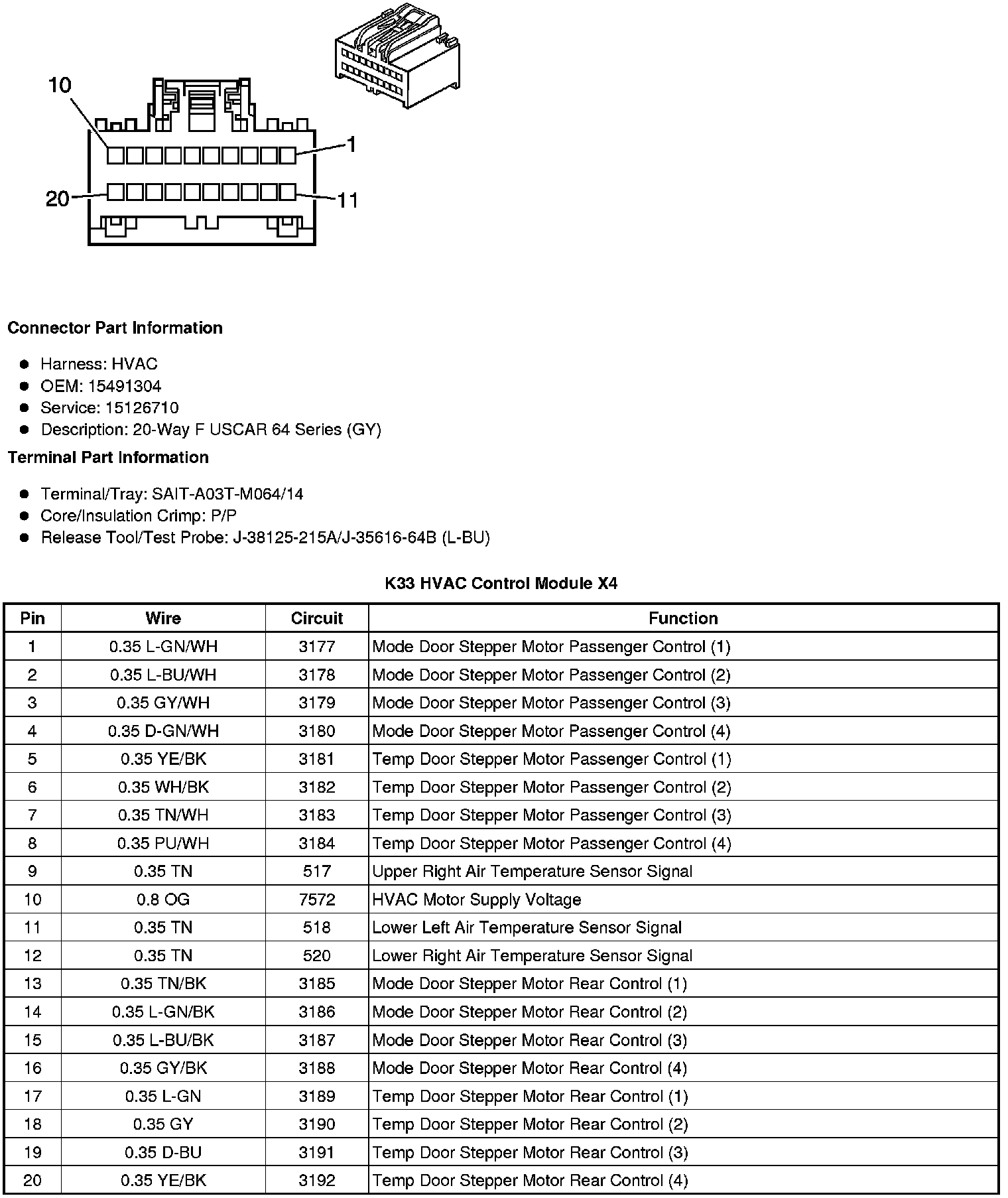

K33 HVAC Control Module X4

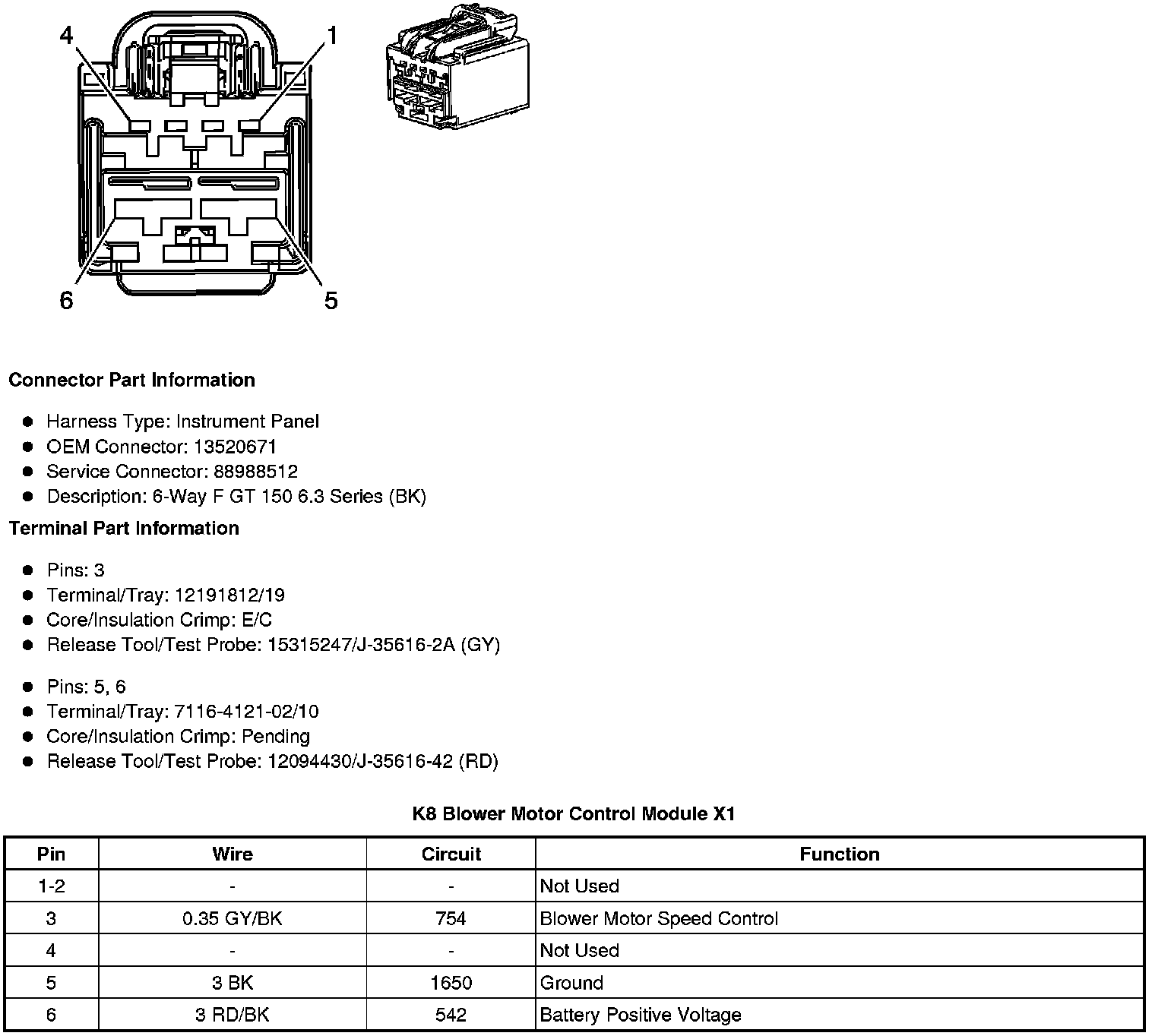

K8 Blower Motor Control Module X1

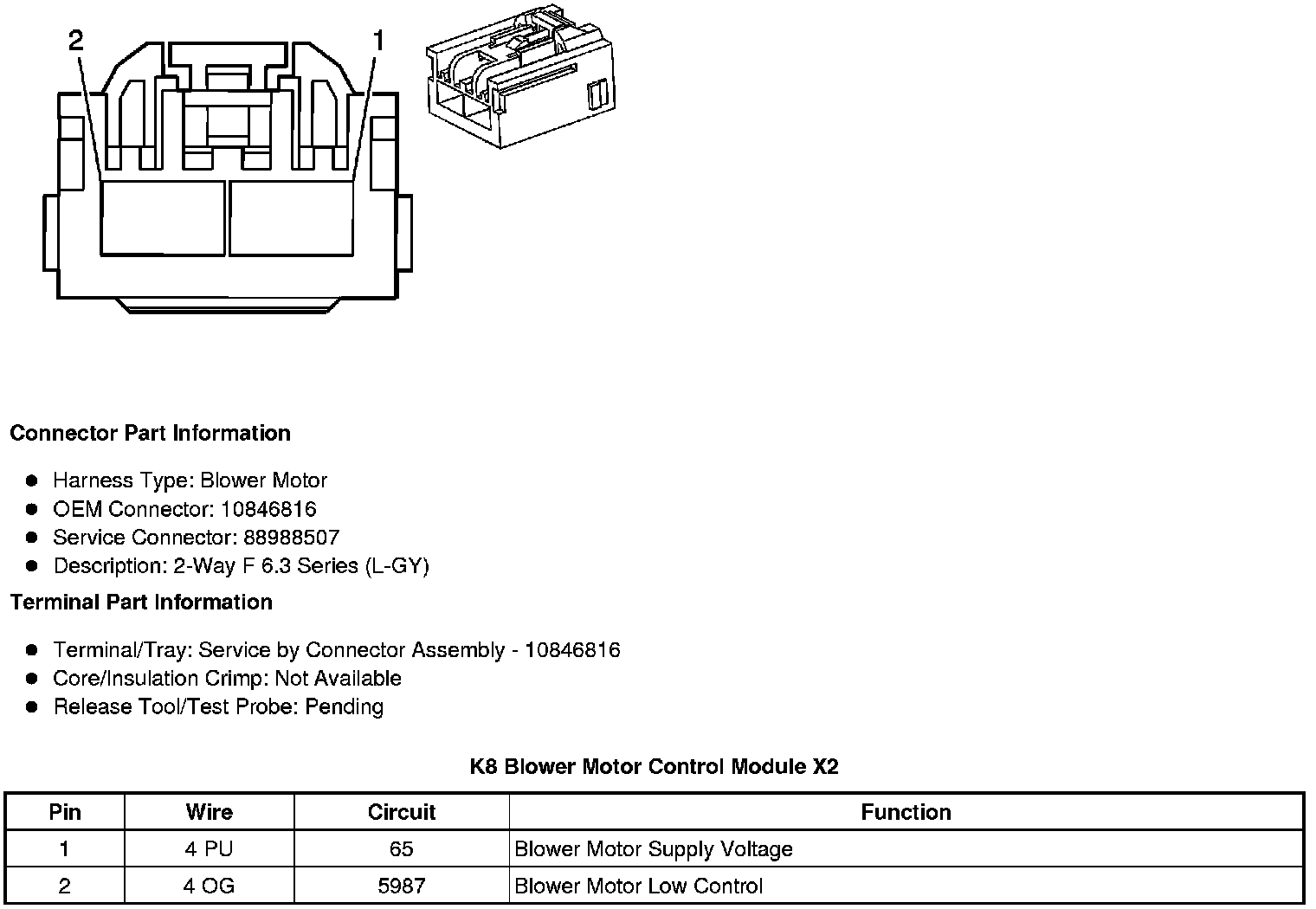

K8 Blower Motor Control Module X2

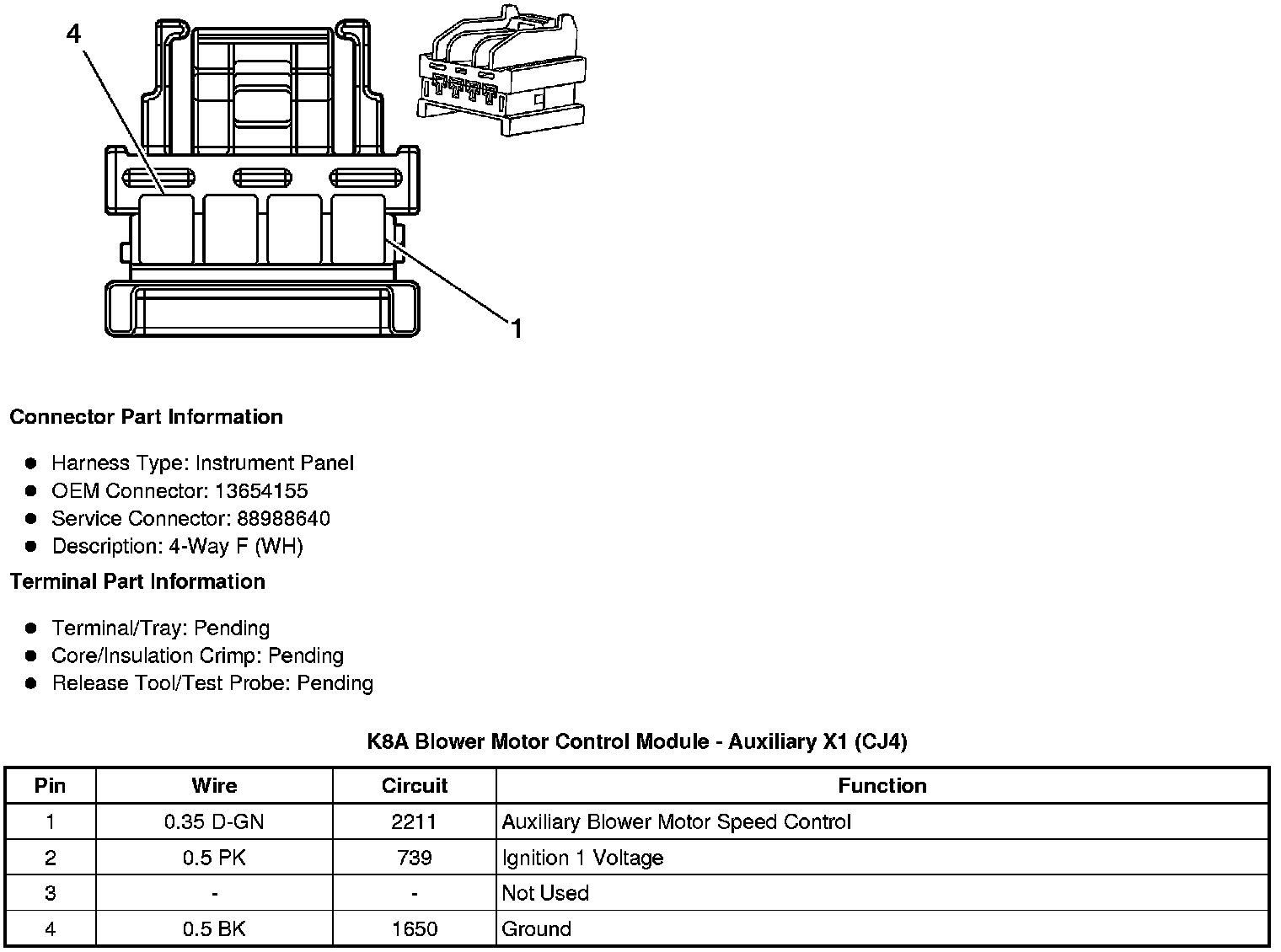

K8A Blower Motor Control Module - Auxiliary X1 (CJ4)

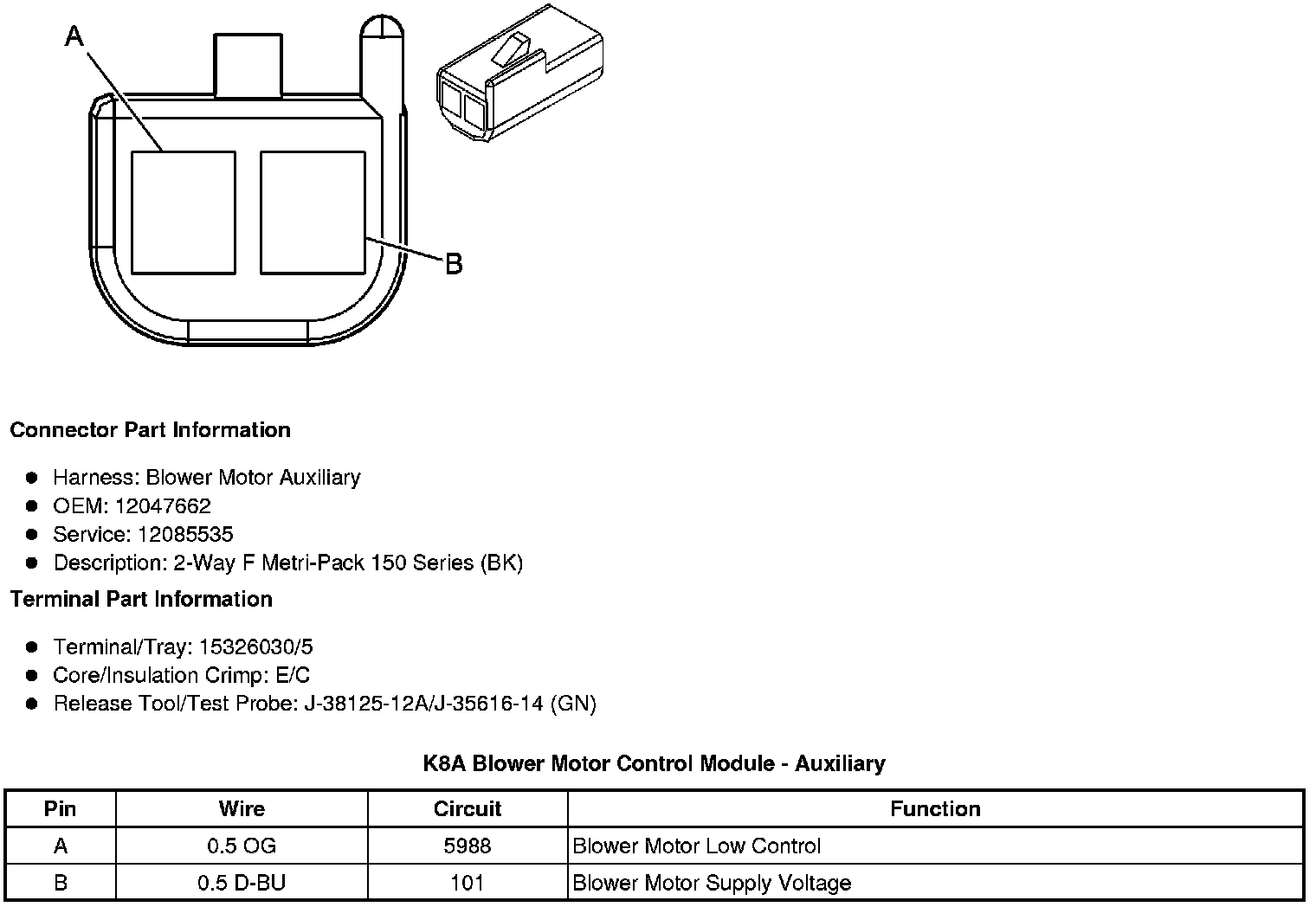

K8A Blower Motor Control Module - Auxiliary
