Entertainment System Control Module

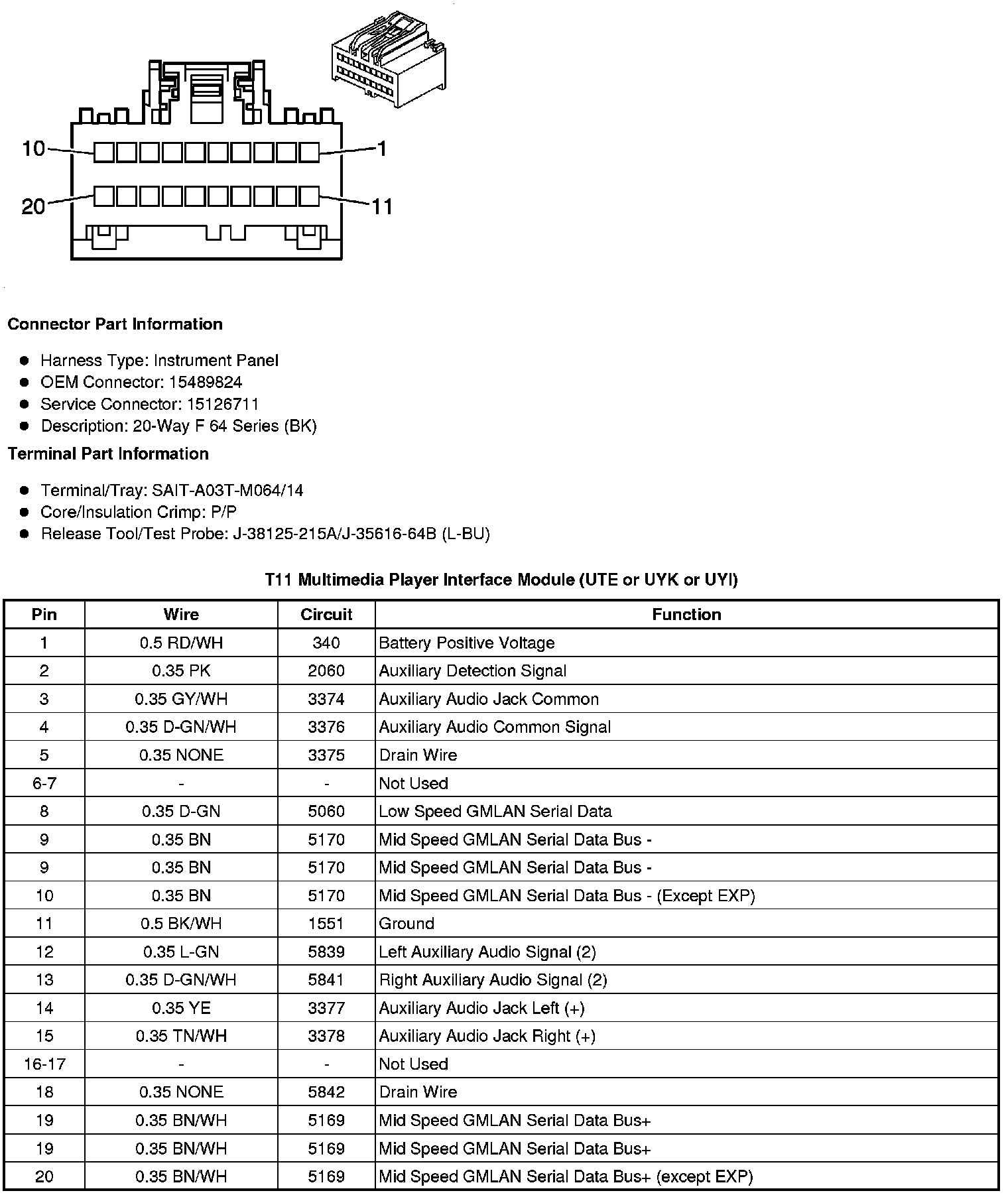

Component Connector End Views

T11 Multimedia Player Interface Module (UTE or UYK or UYI)
