Headlamp Alignment Control Module




Component Connector End Views

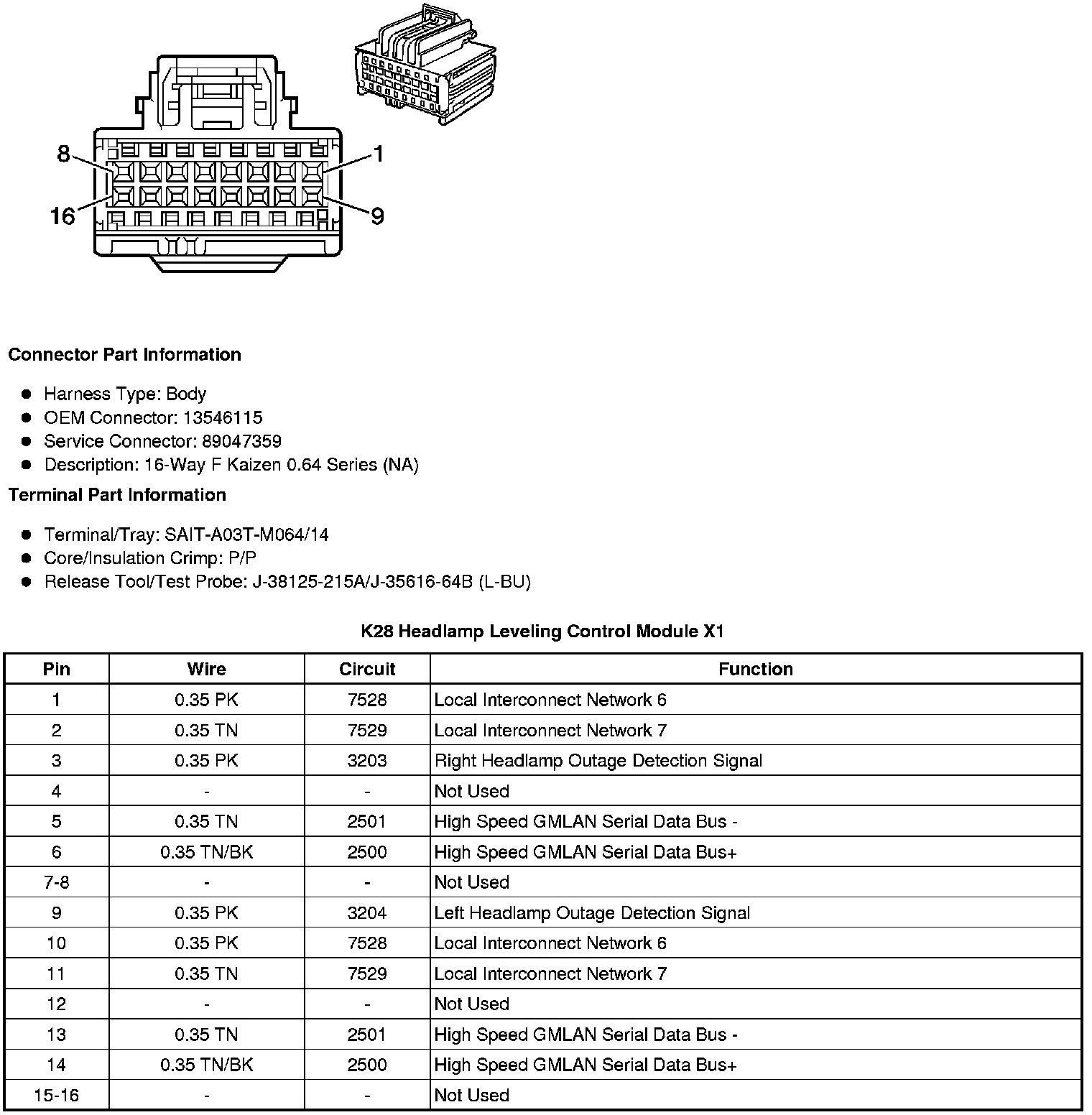

K28 Headlamp Leveling Control Module X1

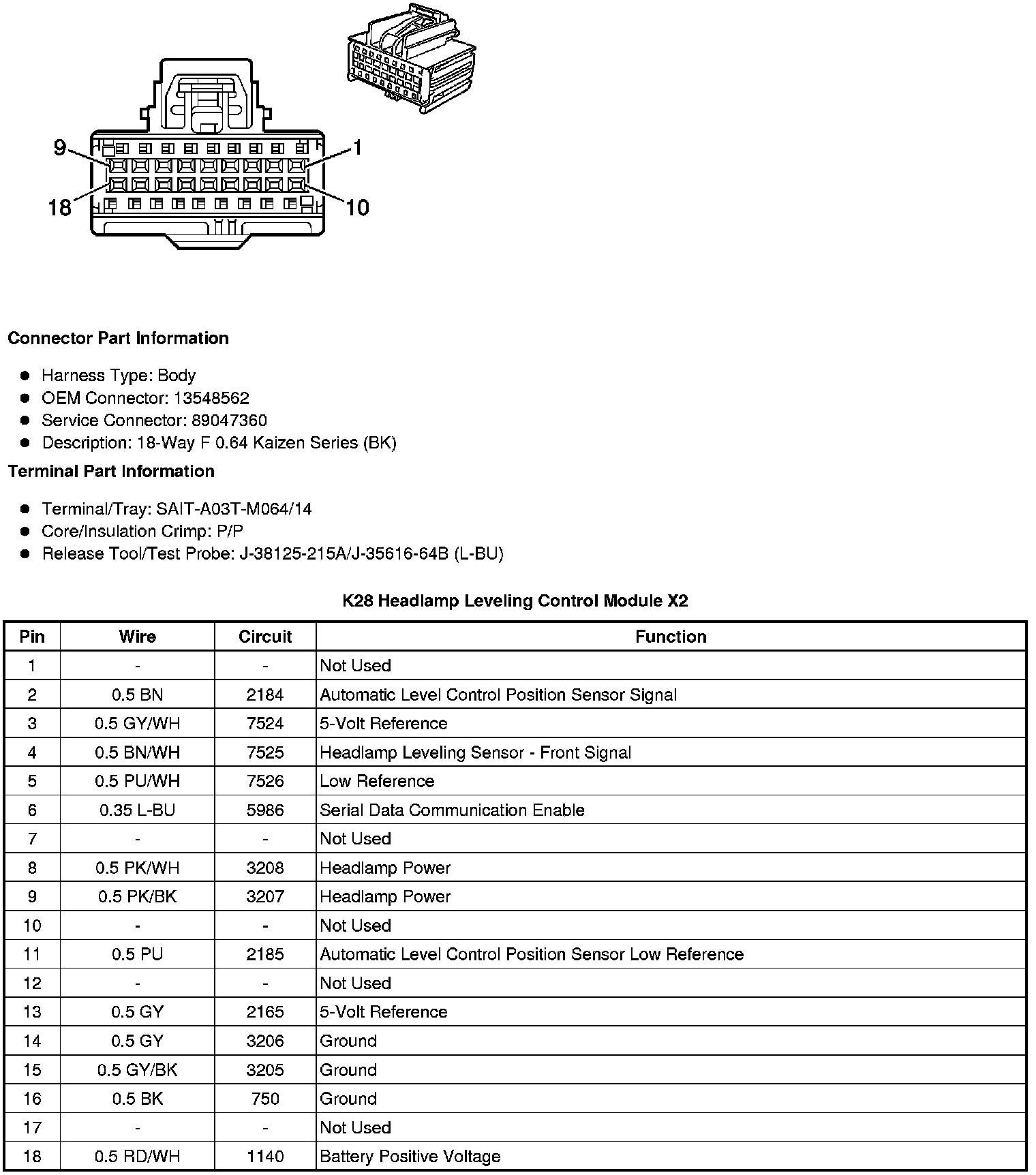

K28 Headlamp Leveling Control Module X2
