Parking Assist Control Module




Component Connector End Views

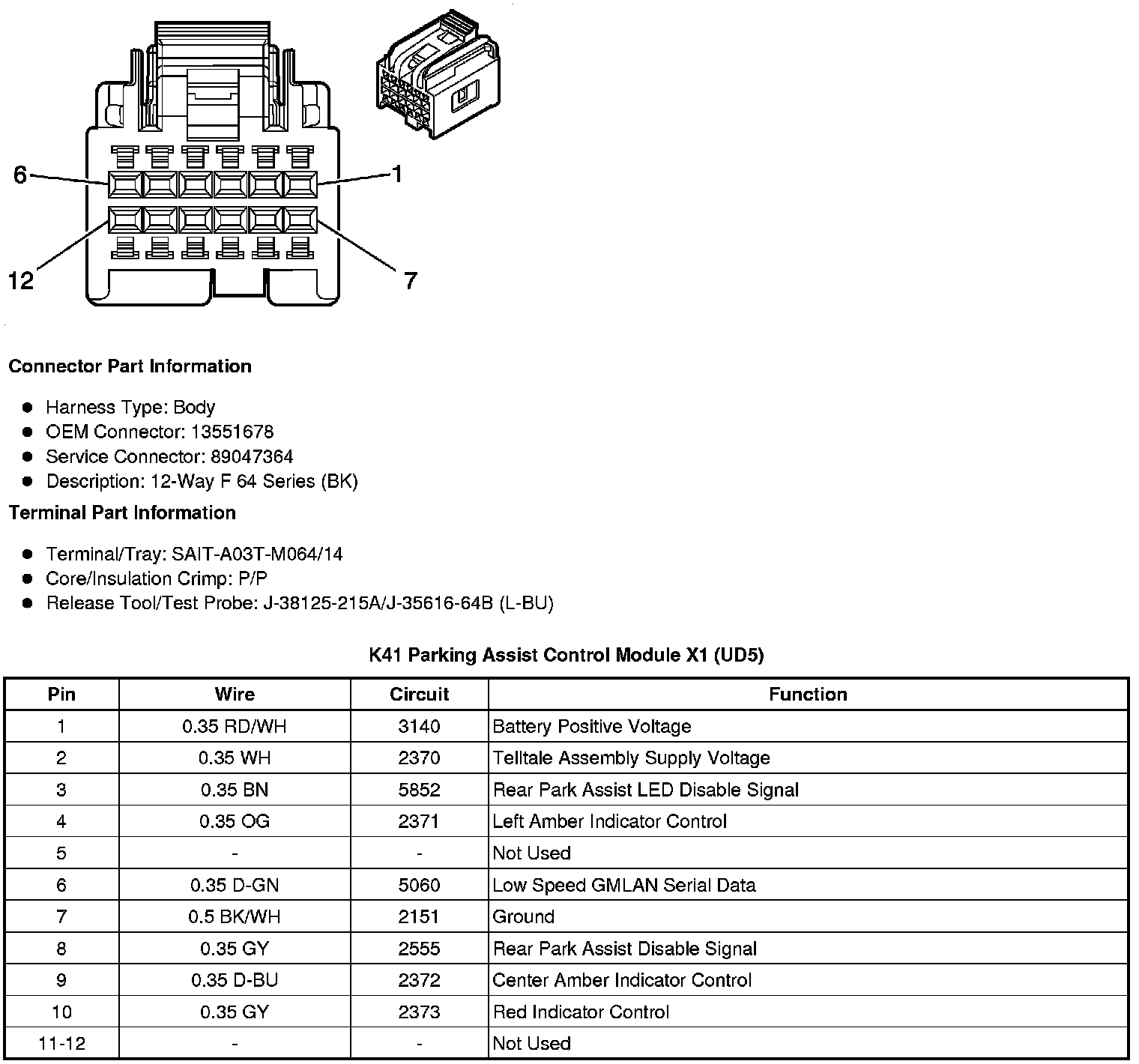

K41 Parking Assist Control Module X1 (UD5)

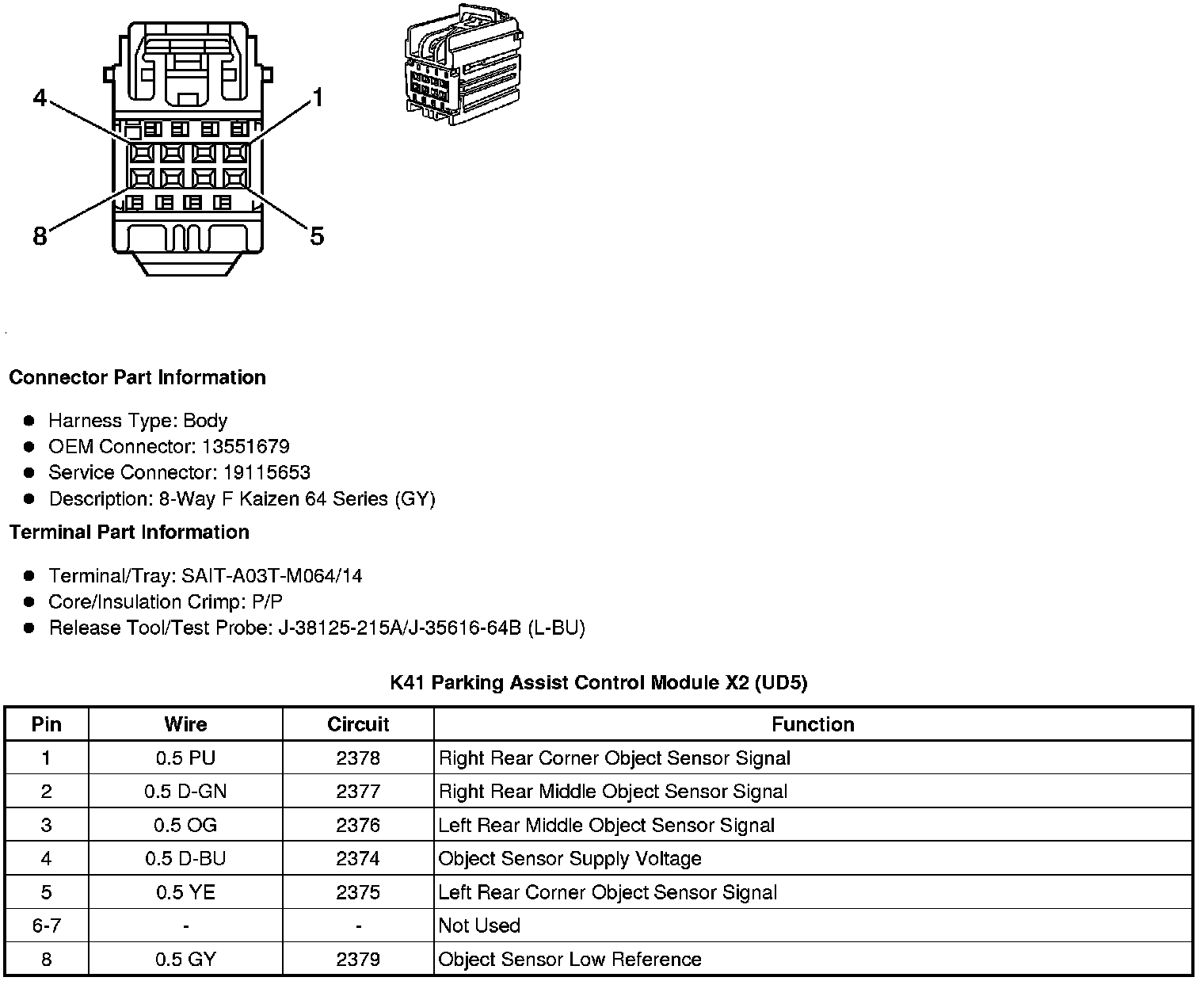

K41 Parking Assist Control Module X2 (UD5)

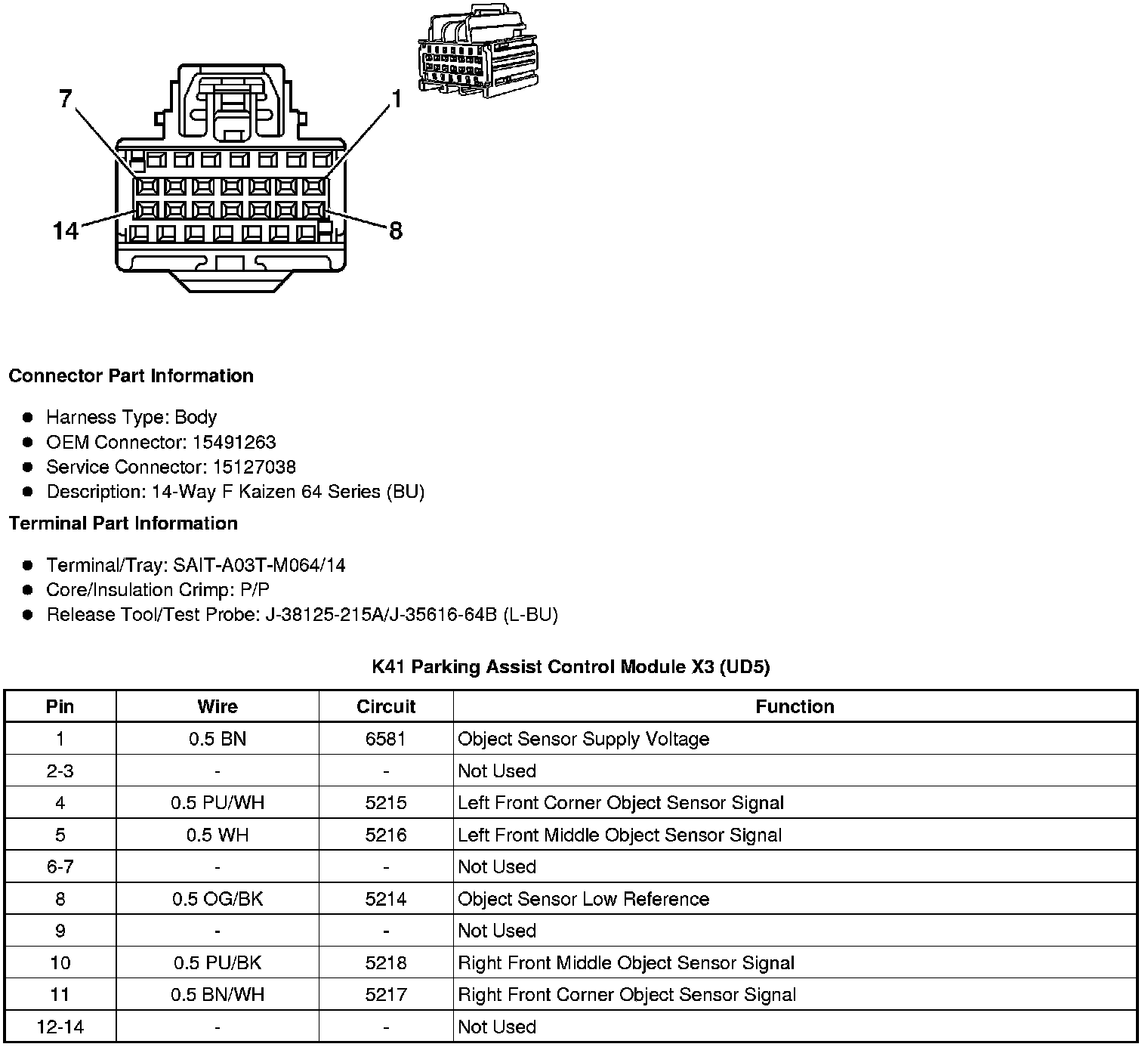

K41 Parking Assist Control Module X3 (UD5)
