Radiator Cooling Fan Control Module

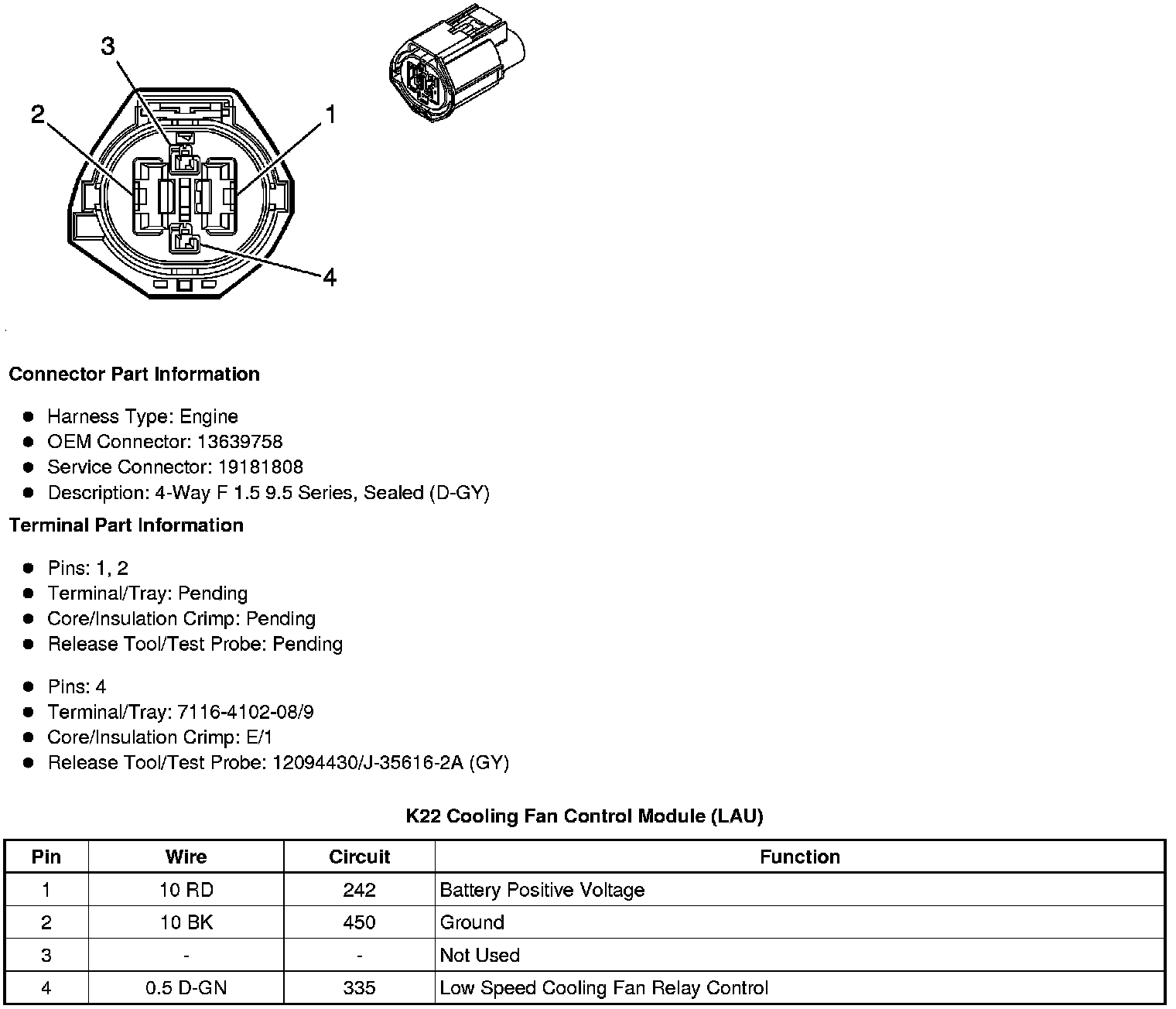

Component Connector End Views
K22 Cooling Fan Control Module (LAU)
