Ultrasonic Sensor, Antitheft




Component Connector End Views

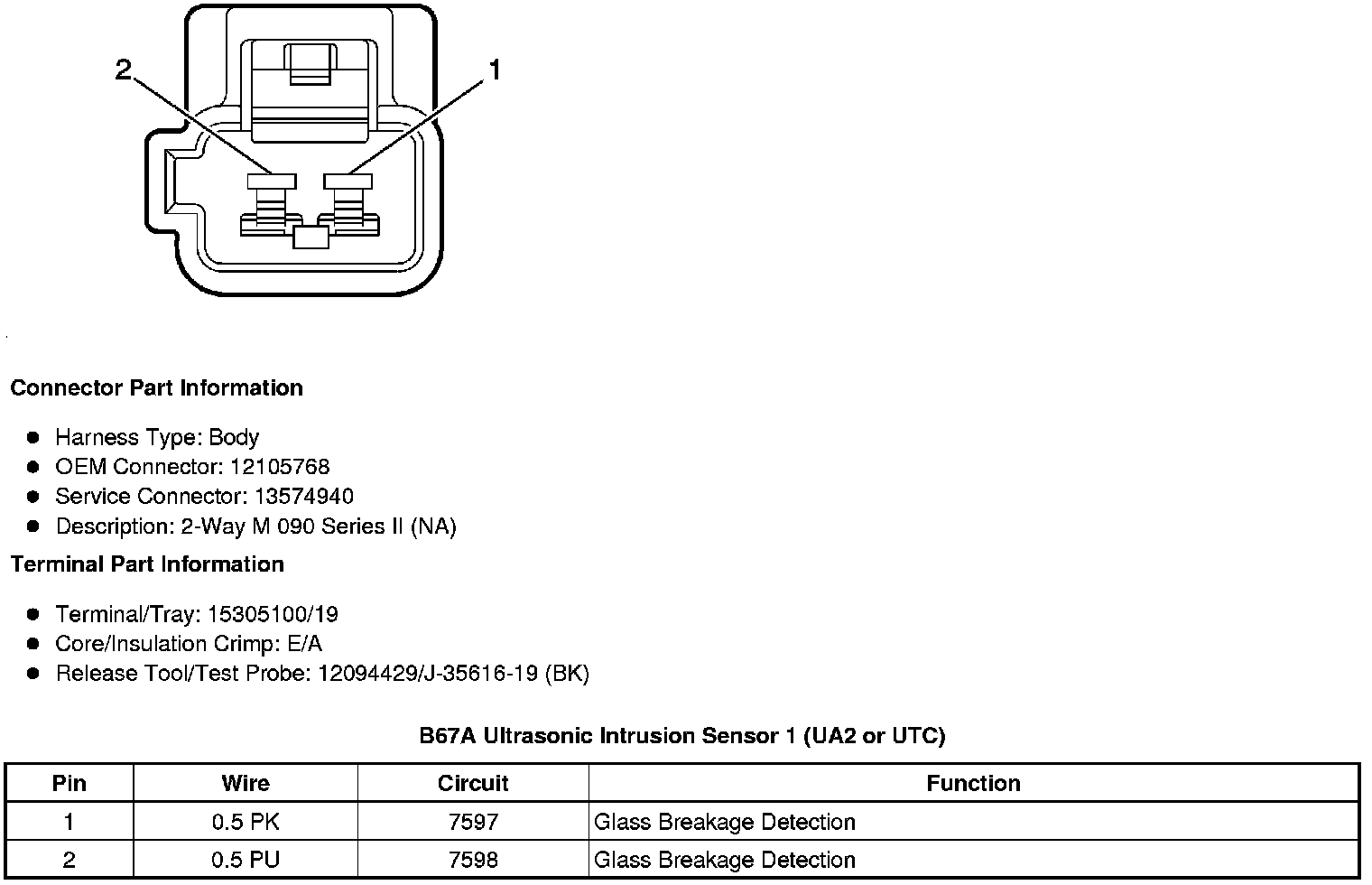

B67A Ultrasonic Intrusion Sensor 1 (UA2 or UTC)

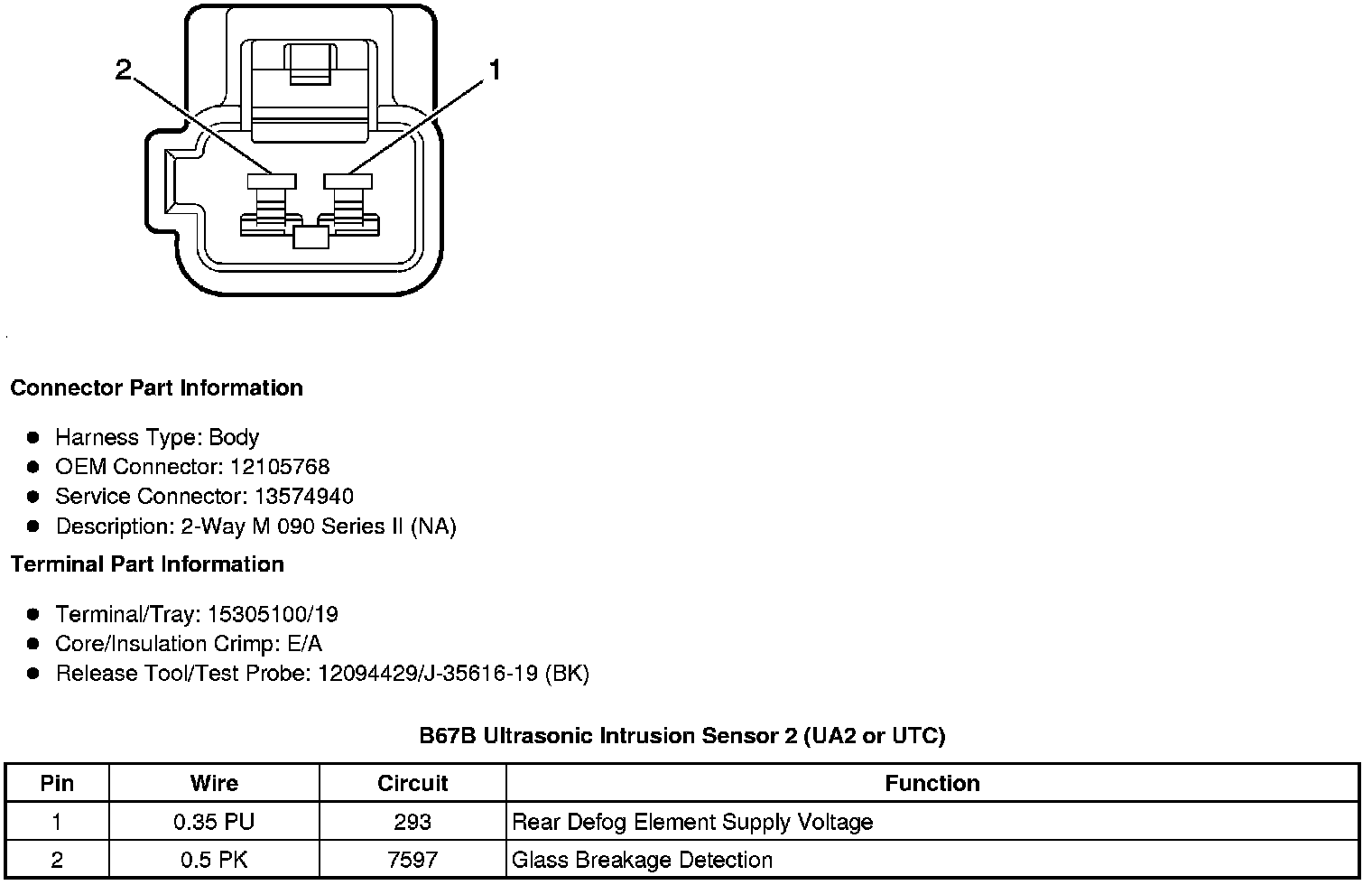

B67B Ultrasonic Intrusion Sensor 2 (UA2 or UTC)
