Transmission Control Module Scan Tool Information (AF40-6)




Transmission Control Module Scan Tool Information (AF40-6)

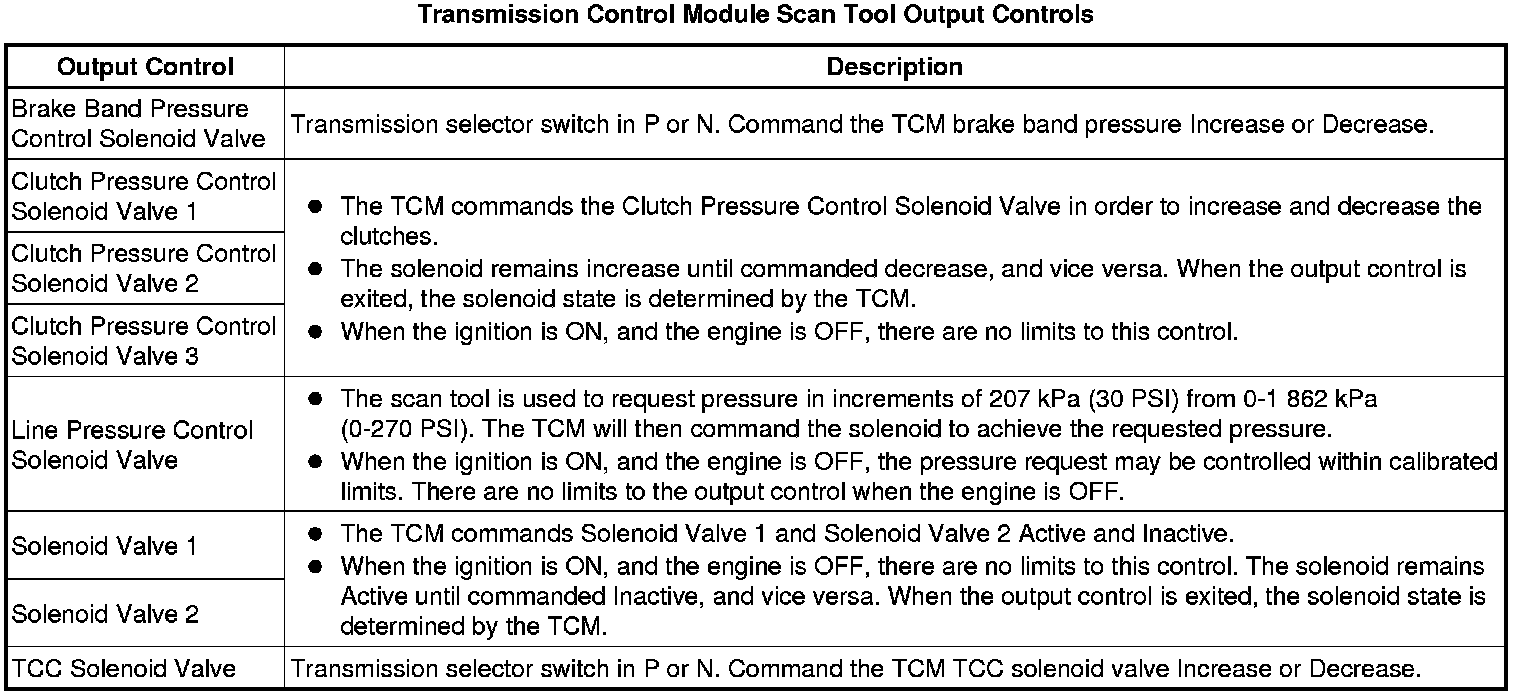

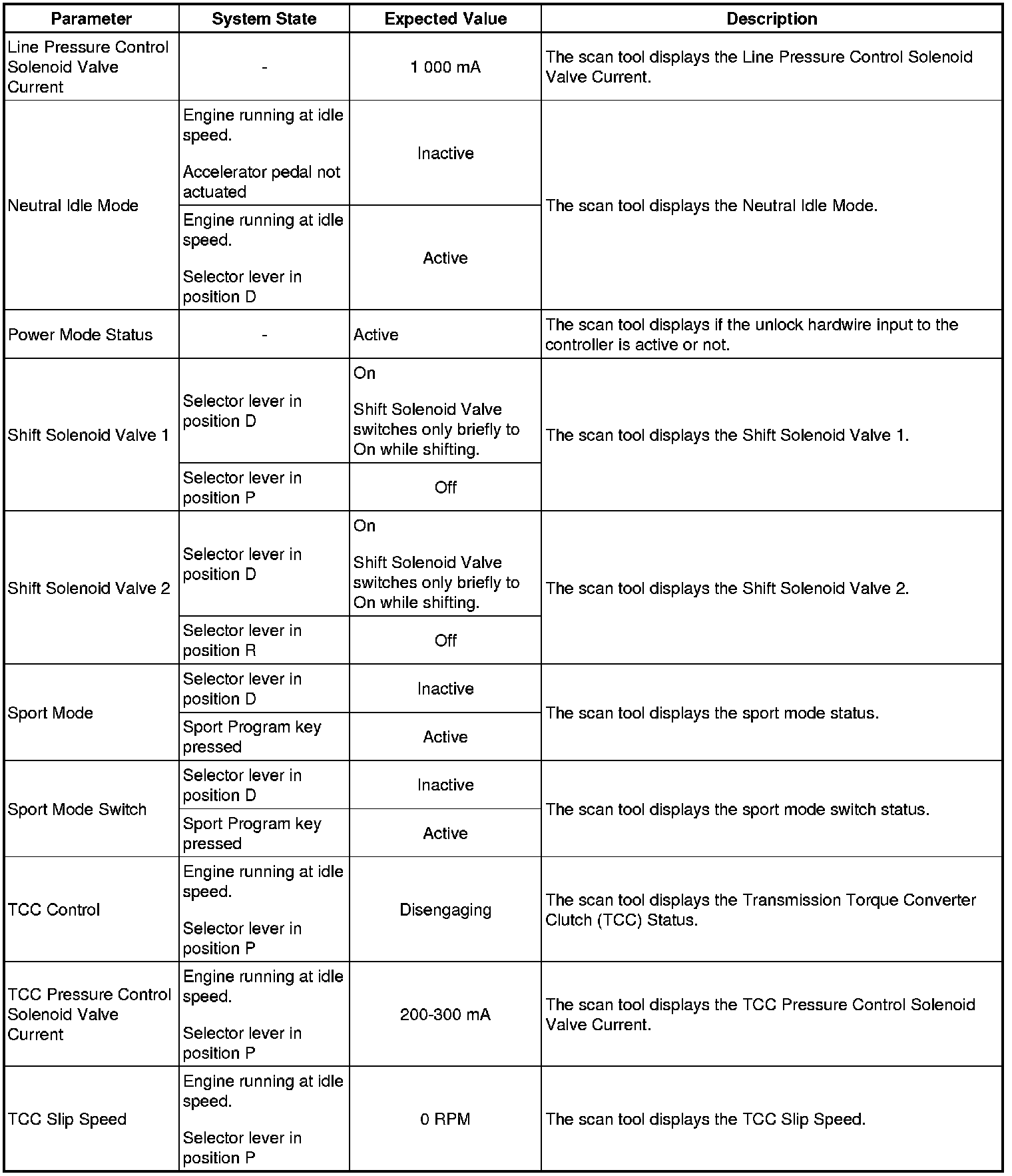

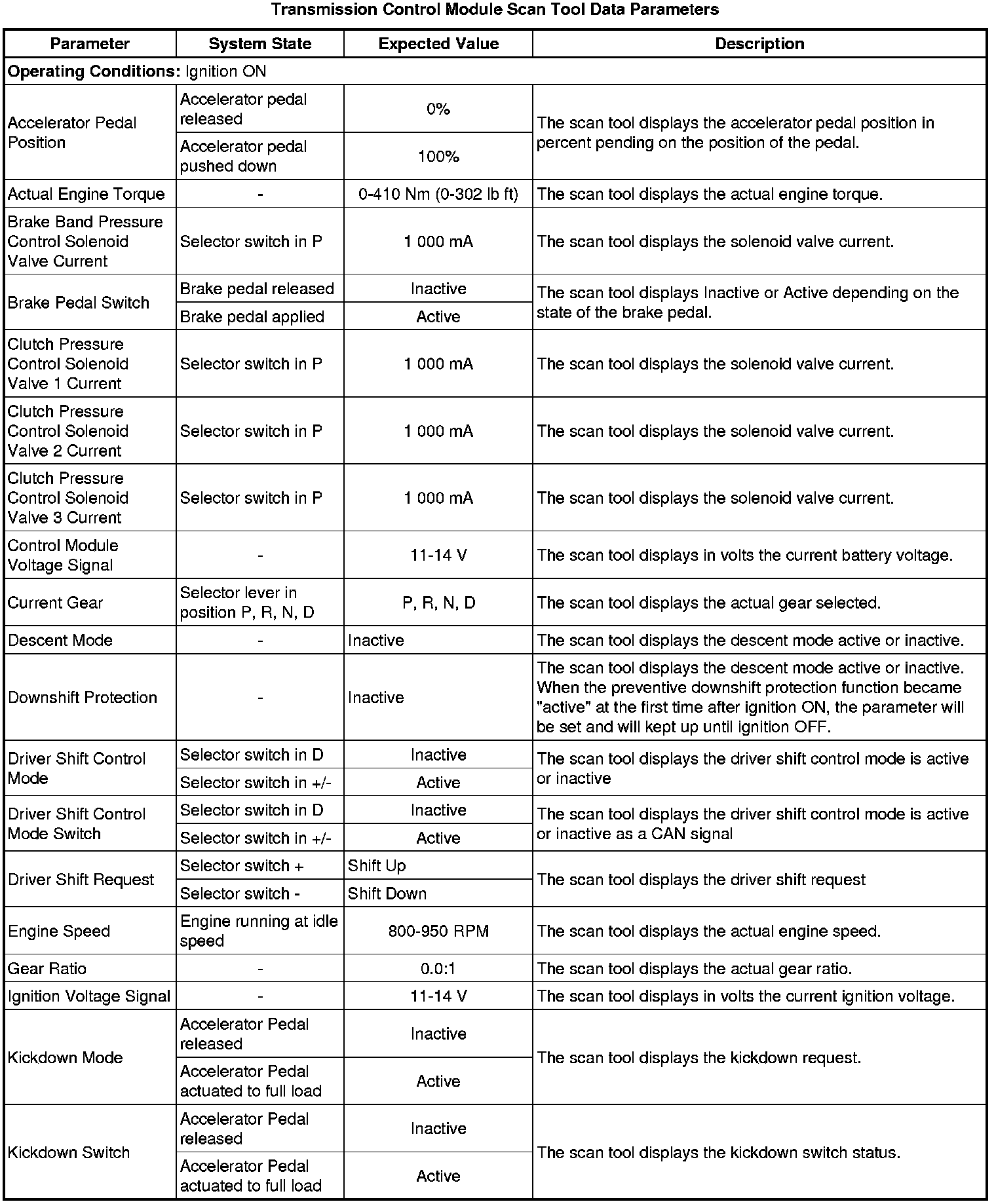

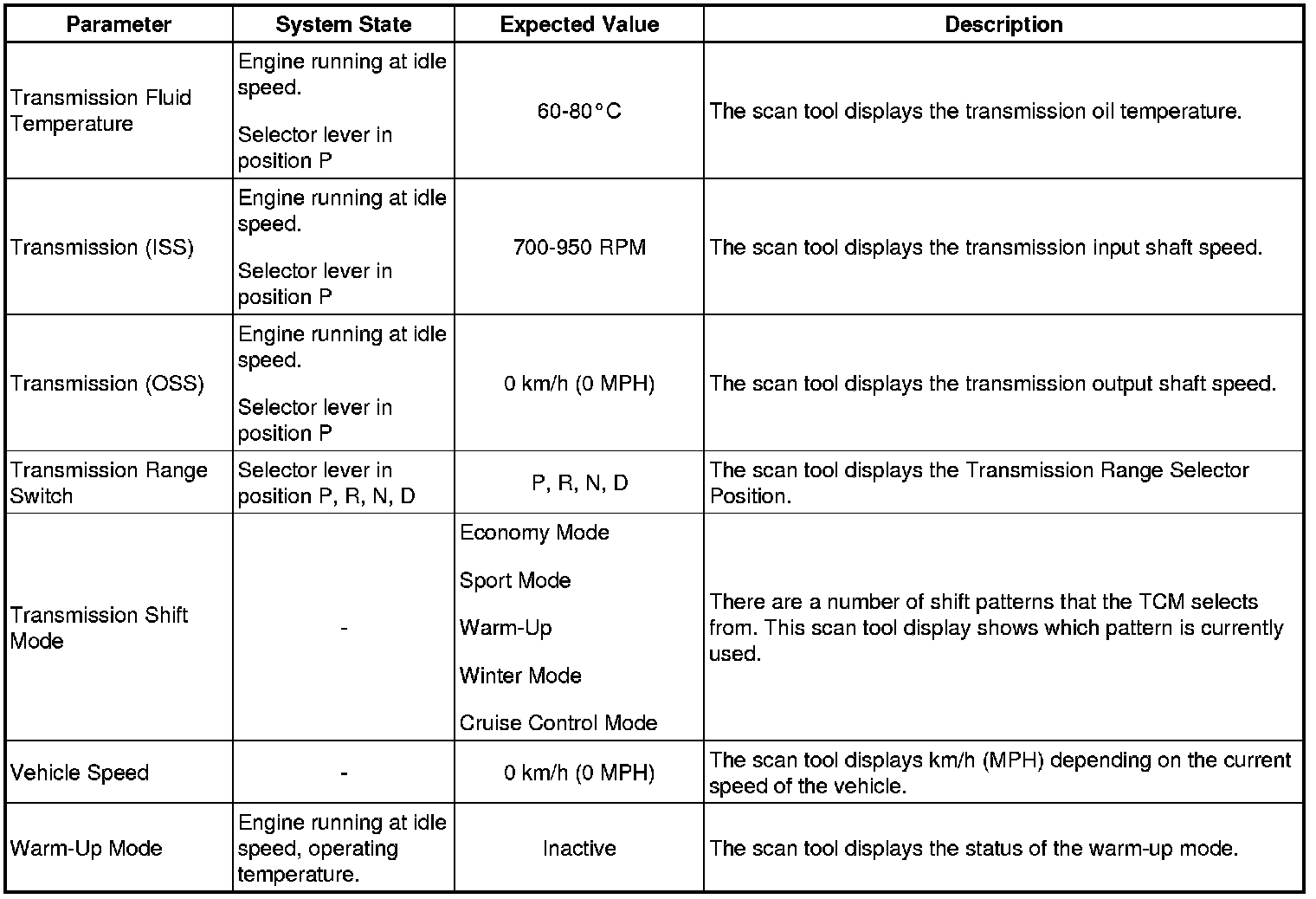

The transmission control module (TCM) scan tool data parameters list contains all TCM related parameters that are available on the scan tool. The list is arranged in alphabetical order. A given parameter may appear in any one of the data lists.
