Passenger Compartment/Roof Component Views

Passenger Compartment/Roof Component Views

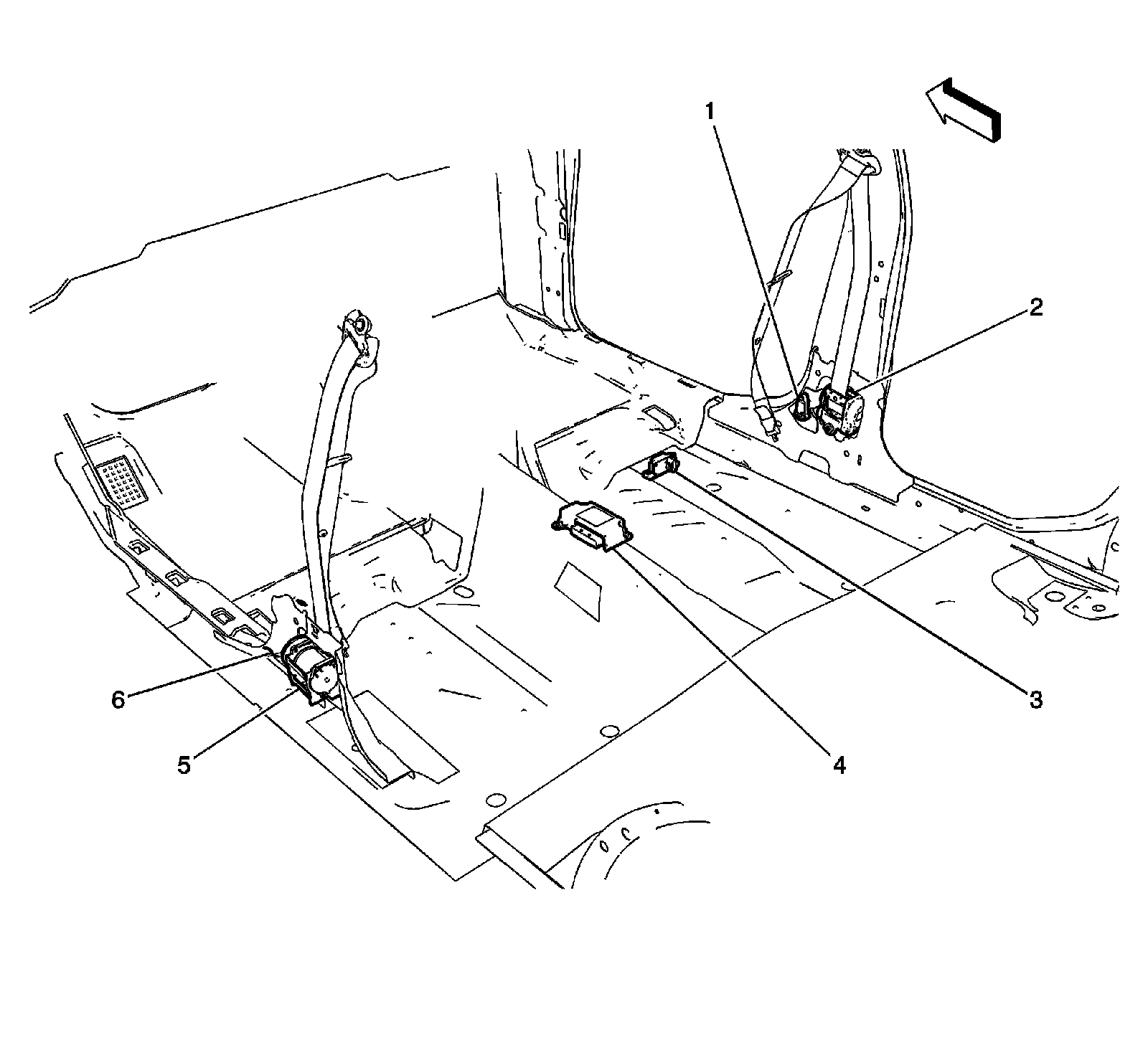

Driver and Passenger Seat Area




1 - Inflatable Restraint Side Impact Sensor (SIS) - Right
2 - Seat Belt Retractor - Passenger
3 - Yaw and Lateral Accelerometer Sensor
4 - Inflatable Restraint Sensing and Diagnostic Module (SDM)
5 - Seat Belt Retractor - Driver
6 - Inflatable Restraint Side Impact Sensor (SIS) - Left
