Exterior View Display Monitor




Component Connector End Views

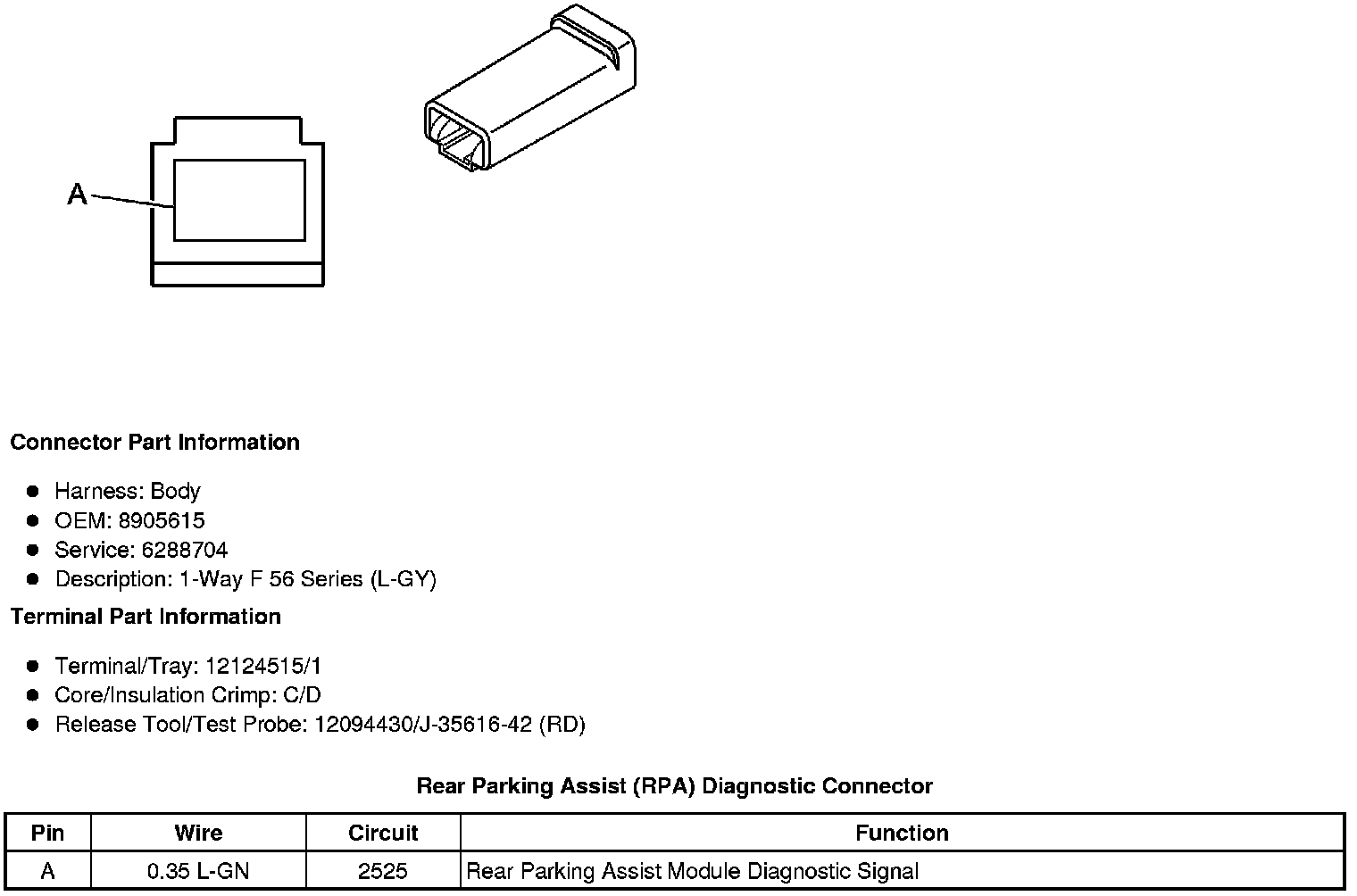

Rear Parking Assist (RPA) Diagnostic Connector

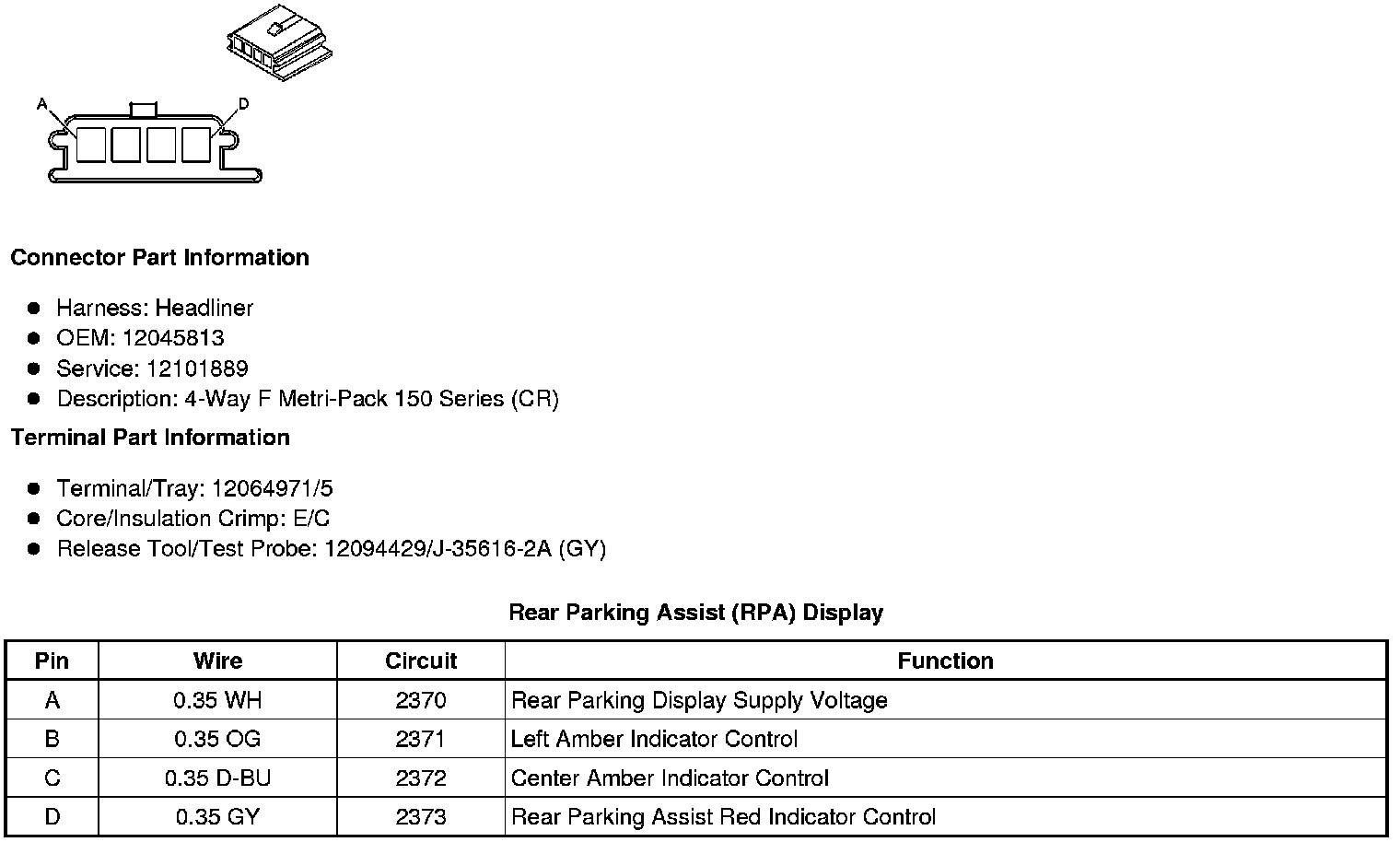

Rear Parking Assist (RPA) Display
