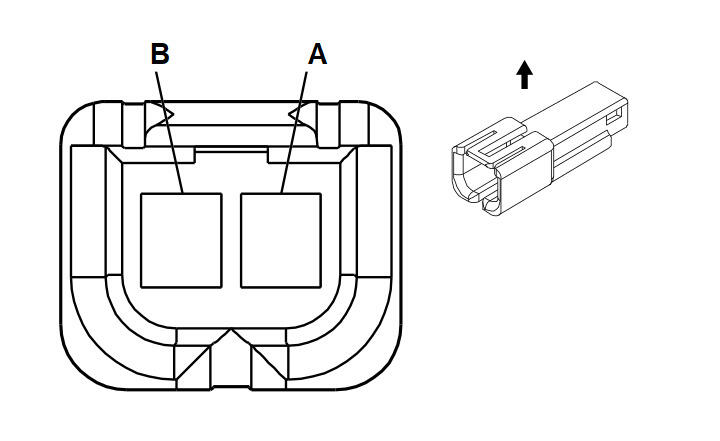

Noise Compensation Microphone (UQS) Connector End View
Courtesy of GENERAL MOTORS CORP. Noise Compensation Microphone (UQS)
| Pin |
Wire |
Circuit |
Function |
| A |
0.35 D-GN/WH |
1489 |
Noise Reduction Microphone Drain Wire |
| B |
0.35 D-GN |
1488 |
Noise Reduction Microphone (+) |
Connector Part Information
- Harness Type: Headliner
- OEM Connector: 12059254
- Service Connector: 12126020
- Description: 2-Way M Metri-Pack 150 Series (GN)
|
Terminal Part Information
- Terminated Lead: 13575462
- Release Tool: J-38125-12A
- Diagnostic Test Probe: J-35616-3 (GY)
- Terminal/Tray: 12047581/2
- Core/Insulation Crimp: E/C
|
