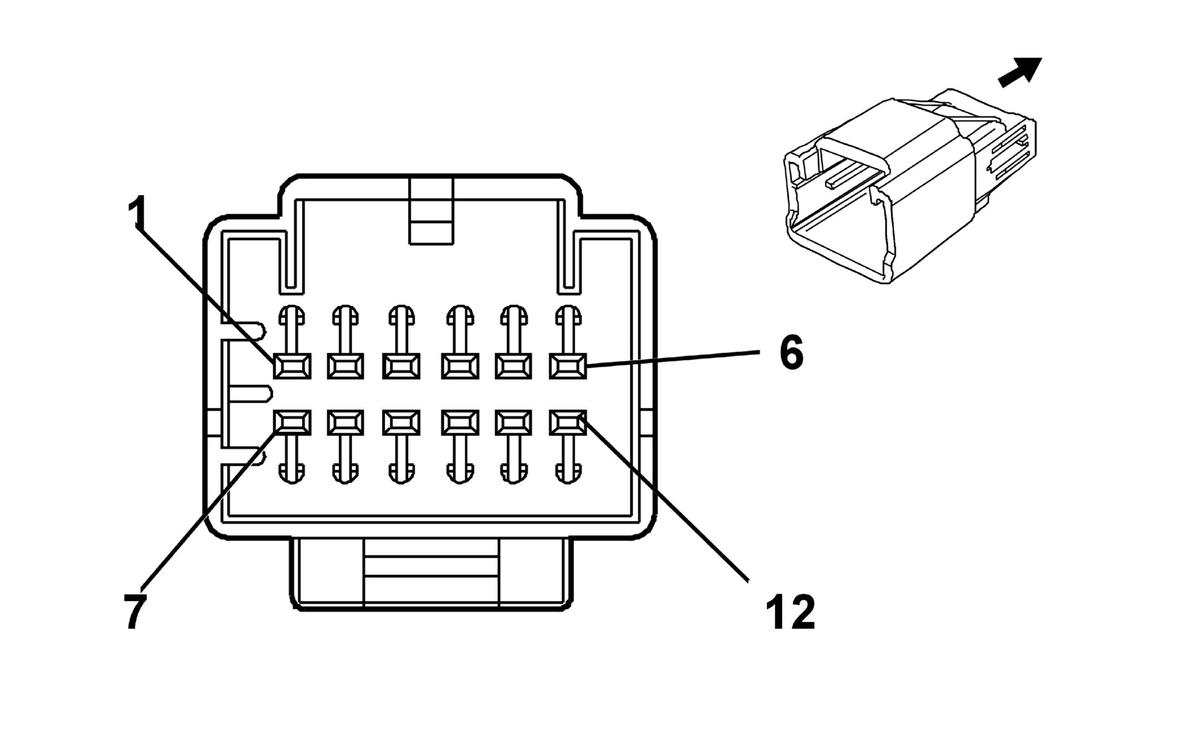

Outside Rearview Mirror - Driver Connector End View
Courtesy of GENERAL MOTORS CORP. Outside Rearview Mirror - Driver
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.35 D-BU/WH |
6160 |
Outside Left Mirror Vertical Position Control |
| 2 |
0.35 WH |
7197 |
Outside Left Mirror Drive Motor Common |
| 3 |
0.35 D-GN/WH |
6159 |
Outside Left Mirror Horizontal Position Control |
| 4 |
0.35 YE |
190 |
Driver Folding Mirror Motor Extend Control (DL7/D26) |
| 5 |
0.35 L-BU |
191 |
Driver Folding Mirror Motor Retract Control (DL7/D26) |
| 6 |
0.8 BK |
350 |
Ground |
| 7 |
0.8 WH |
606 |
Driver Mirror Heating Element Supply Voltage (DR5) |
| 8 |
- |
- |
Not Used |
| 9 |
0.35 D-BU |
672 |
5-Volt Reference (A45) |
| 10 |
0.35 D-GN |
784 |
Driver Mirror Vertical Position Sensor Signal (A45) |
| 11 |
0.35 GY |
786 |
Driver Mirror Horizontal Position Sensor Signal (A45) |
| 12 |
0.35 BN |
673 |
Low Reference (A45) |
Connector Part Information
- Harness Type: Door
- OEM Connector: 7282-7696-40
- Service Connector: 19115699
- Description: 12-Way M (L-GY)
|
Terminal Part Information
- Pins: 1-5, 9-12
- Terminated Lead: 13575828
- Release Tool: J-38125-553
- Diagnostic Test Probe: J-35616-65B (L-BU)
- Terminal/Tray: 7114-4720-02/14
- Core/Insulation Crimp: H/H
- Pins: 6, 7
- Terminated Lead: 13578909
- Release Tool: J-38125-553
- Diagnostic Test Probe: J-35616-65B (L-BU)
- Terminal/Tray: 7114-4721-02/14
- Core/Insulation Crimp: J/J
|
