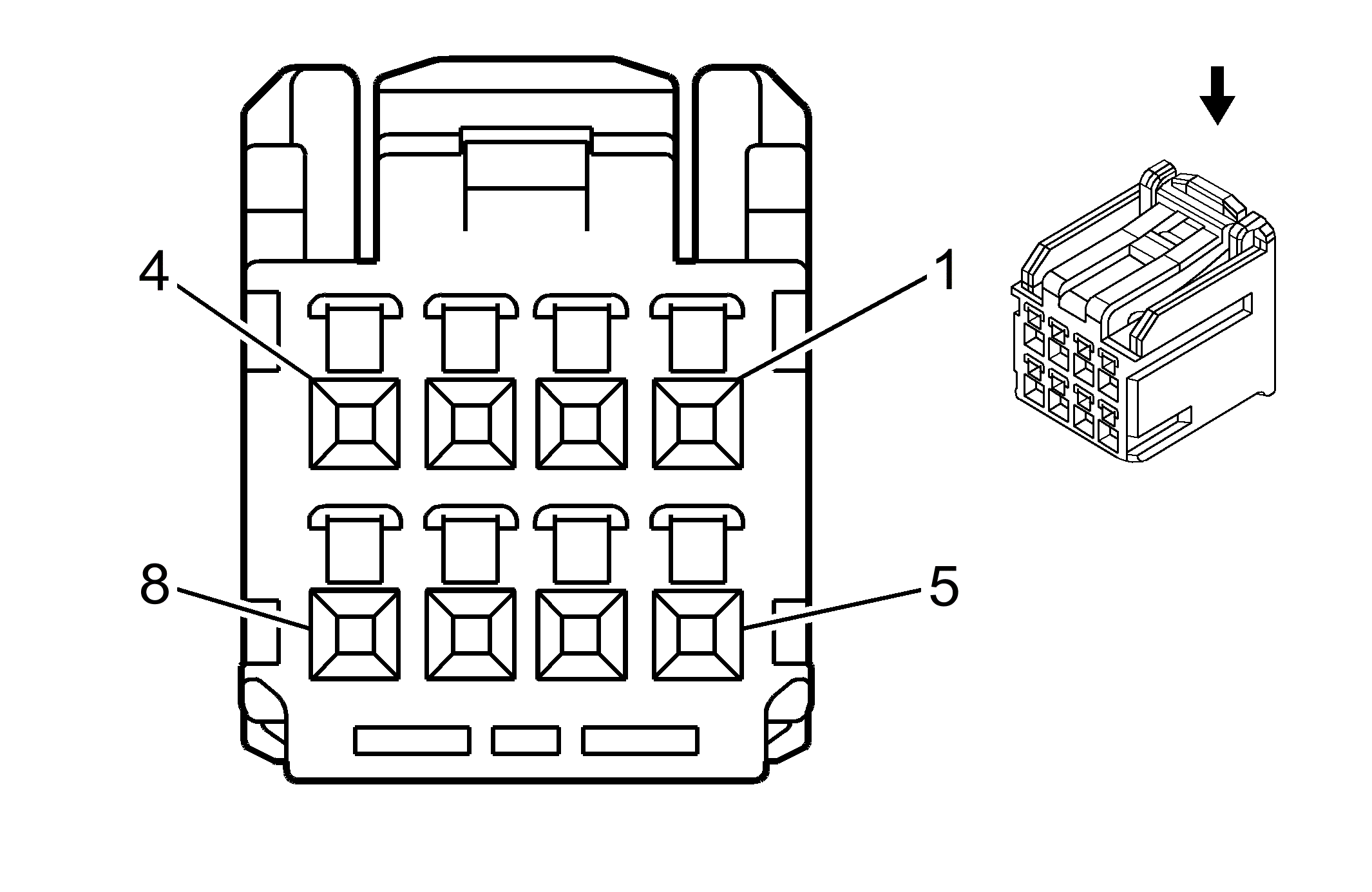

Park Brake Control Switch (J77)
Courtesy of GENERAL MOTORS CORP. Park Brake Control Switch (J77)
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.5 YE |
1492 |
12-Volt Reference |
| 2 |
0.5 L-BU |
1134 |
12-Volt Reference |
| 3 |
0.5 PU |
7684 |
Park Brake Apply Signal |
| 4 |
0.5 D-BU |
6108 |
Low Reference |
| 5 |
0.5 BN |
6107 |
Low Reference |
| 6 |
0.5 YE |
6817 |
LED Backlight Dimming Control |
| 7 |
0.5 PU |
7683 |
Park Brake Release Signal |
| 8 |
0.5 BK |
450 |
Ground |
Connector Part Information
- Harness Type: Console
- OEM Connector: HCMDPB08S
- Service Connector: Service by Harness - See Part Catalog
- Description: 8-Way F (WH)
|
Terminal Part Information
- Terminated Lead: 13575868
- Release Tool: J-38125-12A
- Diagnostic Test Probe: J-35616-64B (L-BU)
- Terminal/Tray: SHCM-A03T-P025/20
- Core/Insulation Crimp: J/J
|
