Body Control System Wiring Schematics

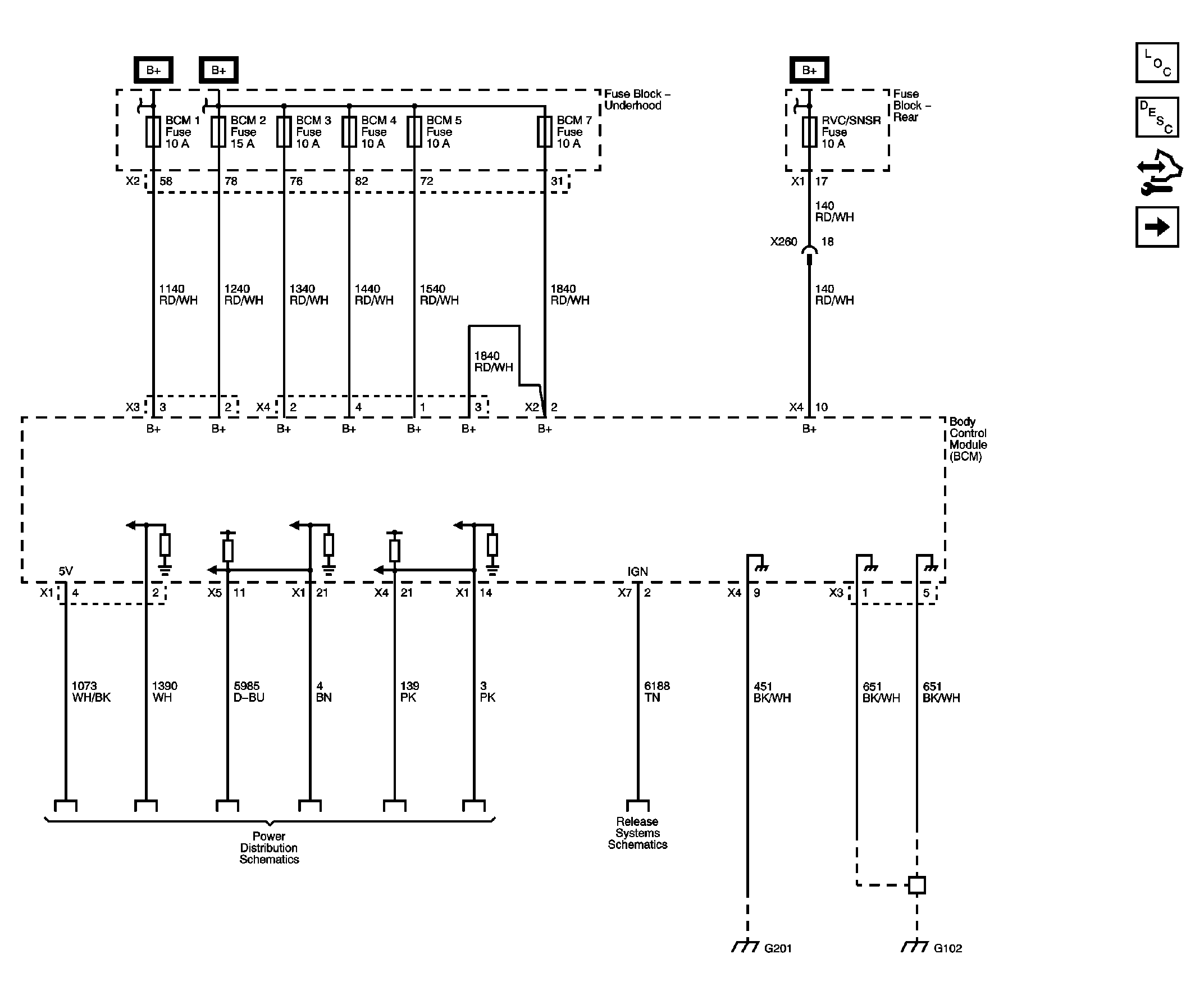

Fig 1: Body Control Module (BCM) Power And Grounds Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

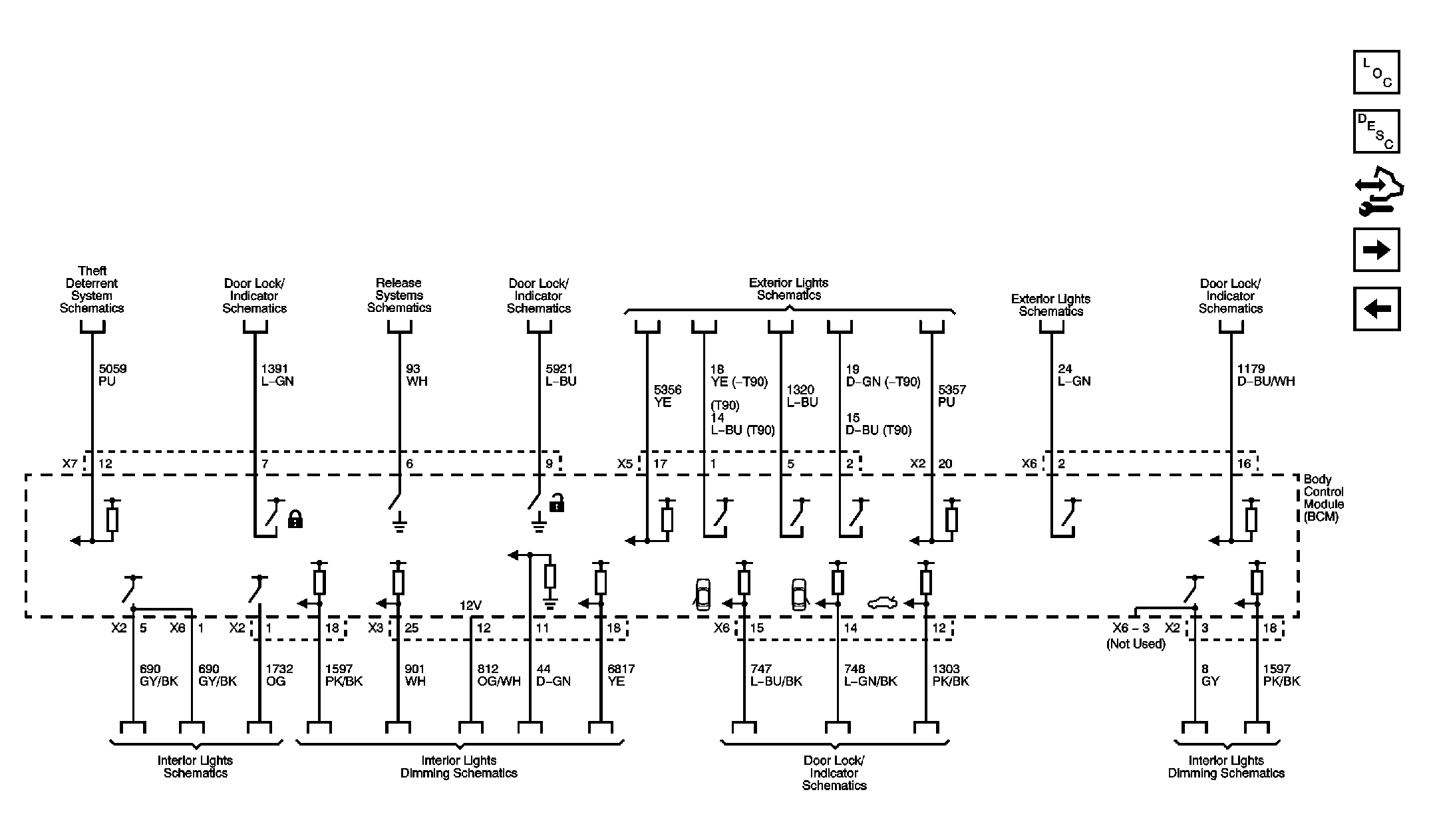

Fig 2: Subsystem References Wiring Schematic (1 of 3)

Courtesy of GENERAL MOTORS CORP.

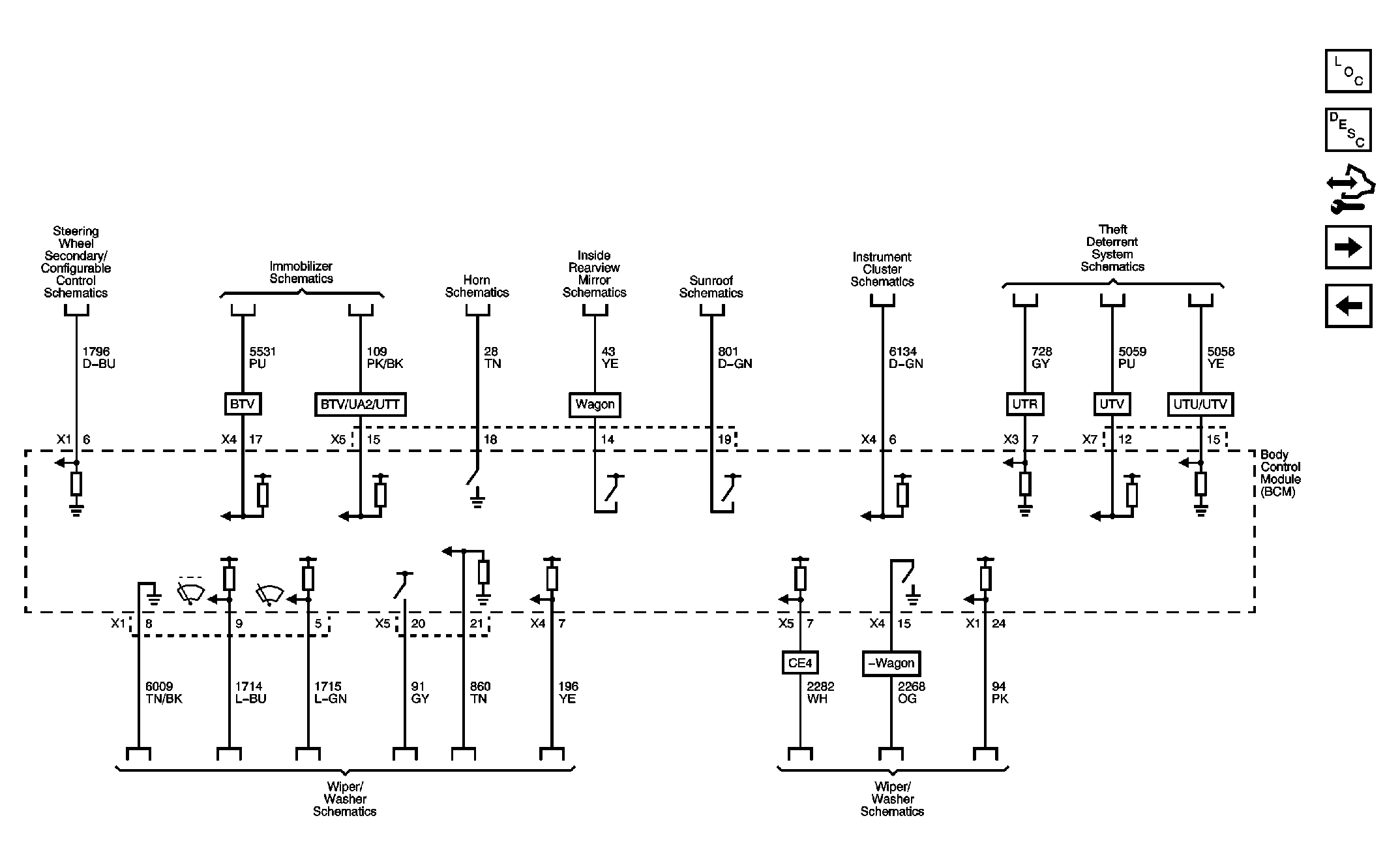

Fig 3: Subsystem References Wiring Schematic (2 of 3)

Courtesy of GENERAL MOTORS CORP.

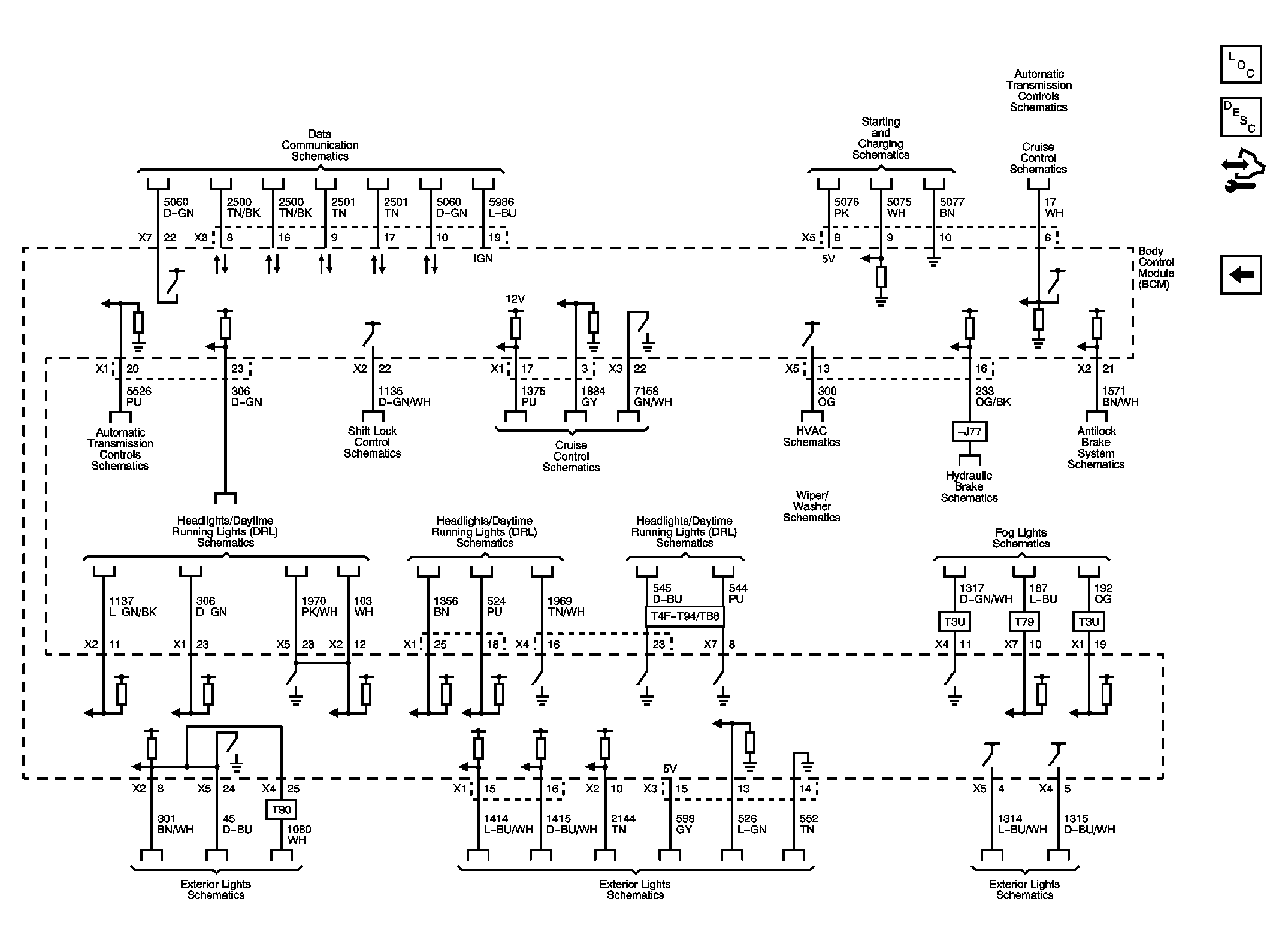

Fig 4: Subsystem References Wiring Schematic (3 of 3)

Courtesy of GENERAL MOTORS CORP.
