A/C Compressor Clutch Connector End View

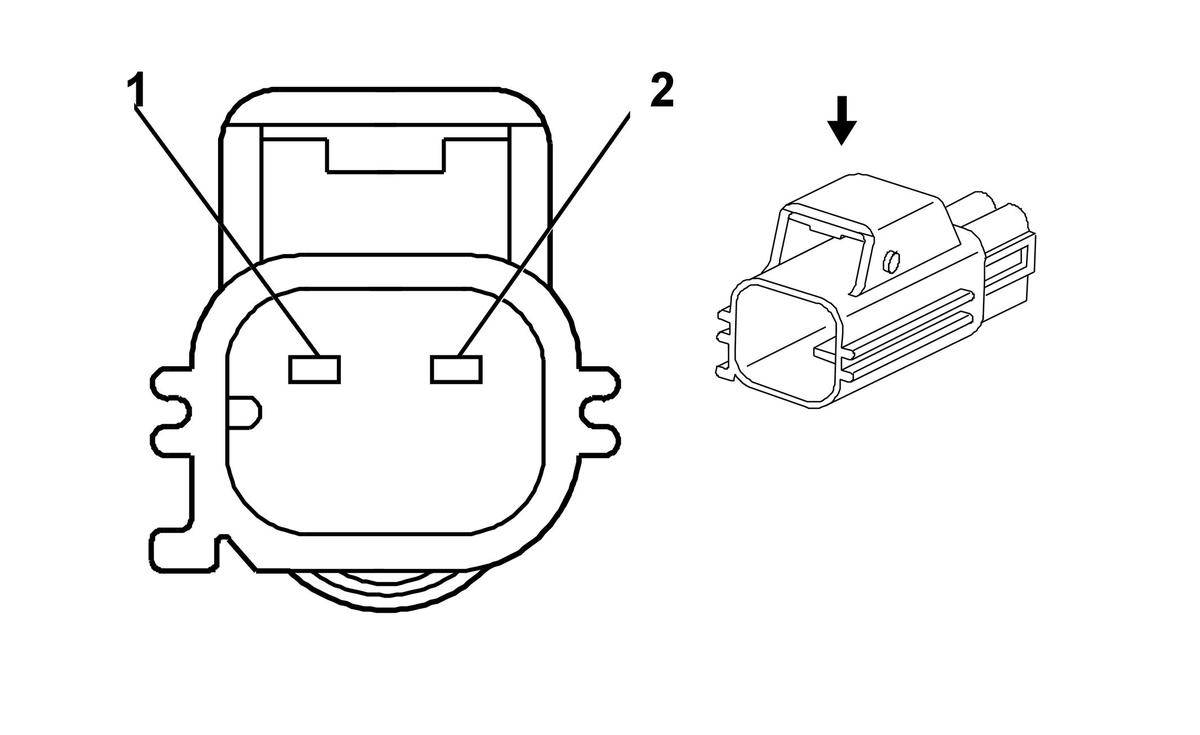

Fig 1: A/C Compressor Clutch Connector End View
GM897985Courtesy of GENERAL MOTORS CORP.
A/C Compressor Clutch

Pin Wire Circuit Function
1 0.5 D-GN 59 A/C Compressor Clutch Supply Voltage
2 0.5 BK 1550 Ground
Connector Part Information
  • Harness Type: Engine
  • OEM Connector: 7282-5548-30
  • Service Connector: Pending
  • Description: 2-Way M YESC Weather Pack Series (BK)
Terminal Part Information
  • Terminated Lead: Pending
  • Release Tool: No Tool Reqd
  • Diagnostic Test Probe: No Tool Reqd
  • Terminal/Tray: 7158-3031-90/13
  • Core/Insulation Crimp: Not Available
