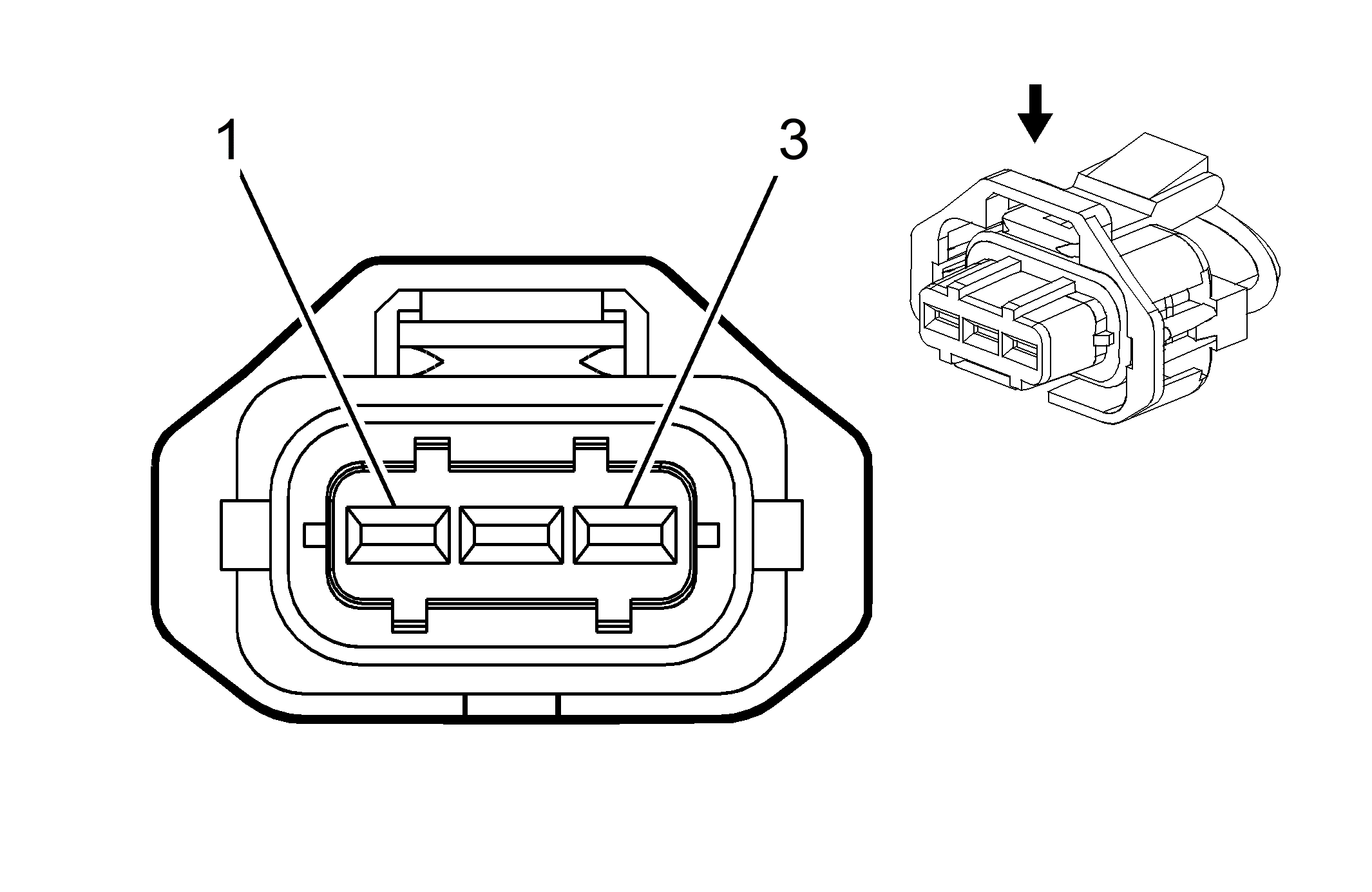

Barometric (BARO) Pressure Sensor (LSA) Connector End View
Courtesy of GENERAL MOTORS CORP. Barometric (BARO) Pressure Sensor (LSA)
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.8 WH/BK |
2932 |
5 Volt Reference |
| 2 |
0.8 OG/BK |
6014 |
Low Reference |
| 3 |
0.8 GY/BK |
433 |
BARO Sensor Signal |
Connector Part Information
- Harness Type: Engine
- OEM Connector: 89047242
- Service Connector: 88988583
- Description: 3-Way F
|
Terminal Part Information
- Terminated Lead: Pending
- Release Tool: J-38125-561
- Diagnostic Test Probe: J-35616-35 (VT)
- Terminal/Tray: 1928498056/8
- Core/Insulation Crimp: E/1
|
