Blower Motor Connector End View

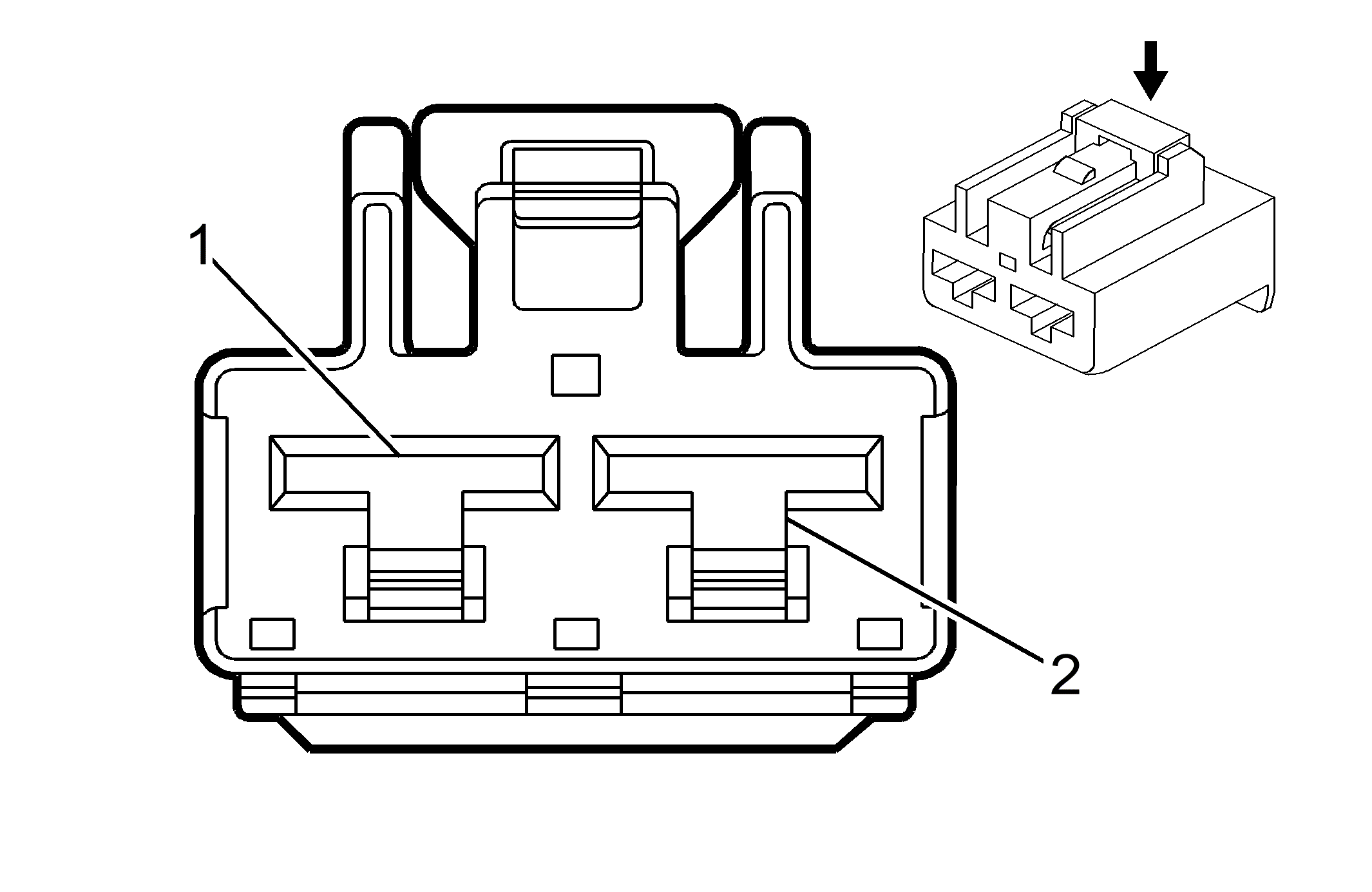

Fig 1: Blower Motor Connector End View
GM1664494Courtesy of GENERAL MOTORS CORP.
Blower Motor

Pin Wire Circuit Function
1 3 BK 2150 Ground
2 3 PU 65 Blower Motor Supply Voltage
Connector Part Information
  • Harness Type: Instrument Panel
  • OEM Connector: 6098-1104
  • Service Connector: Pending
  • Description: 2-Way F (WH)
Terminal Part Information
  • Terminated Lead: Pending
  • Release Tool: J-38125-11A
  • Diagnostic Test Probe: J-35616-44 (YE)
  • Terminal/Tray: 8100-0706/PO
  • Core/Insulation Crimp: Not Available
