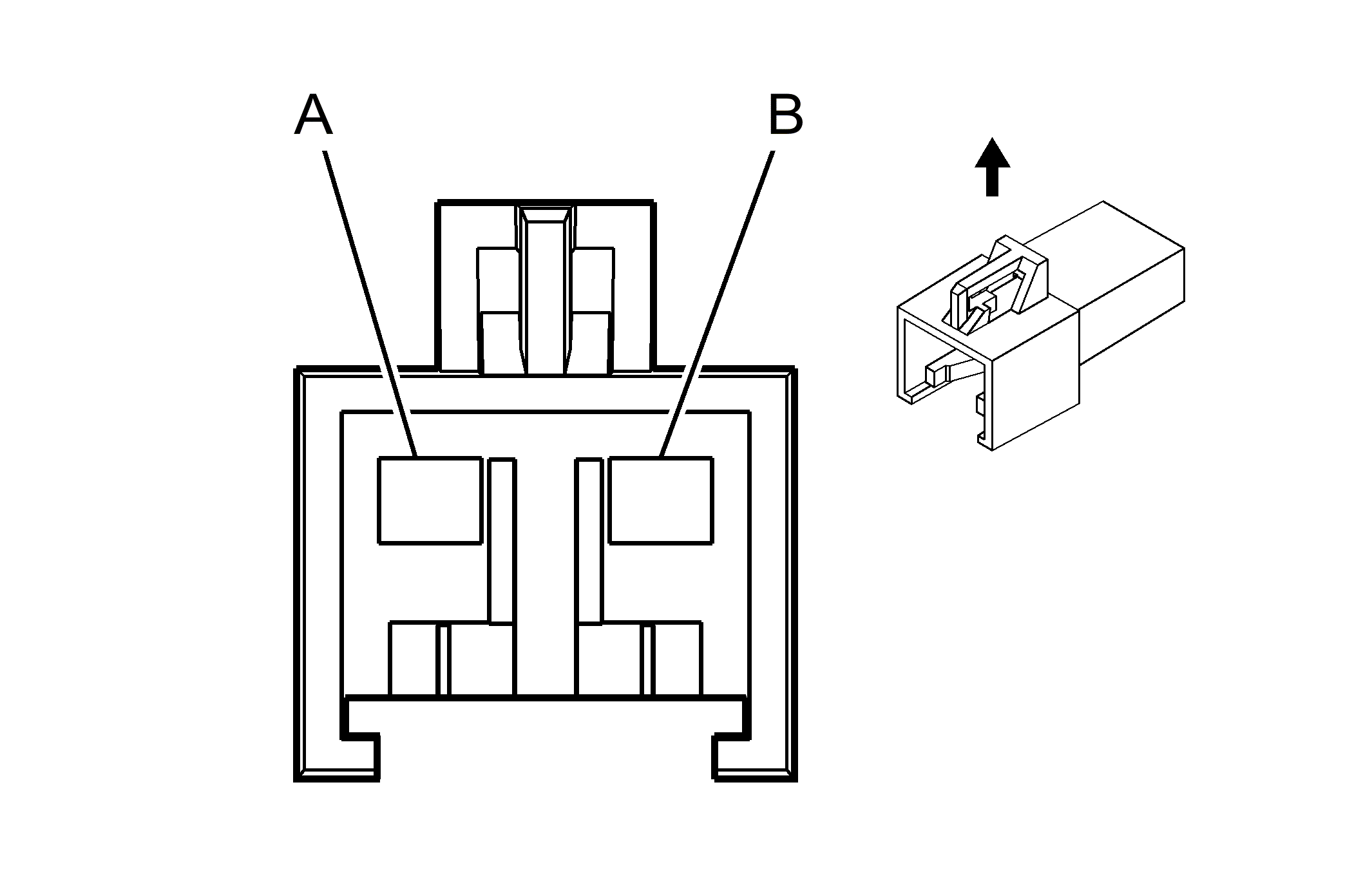

Inflatable Restraint Roof Rail Module - Left (Sedan) Connector End View
Courtesy of GENERAL MOTORS CORP. Inflatable Restraint Roof Rail Module - Left (Sedan)
| Pin |
Wire |
Circuit |
Function |
| A |
0.5 PU/WH |
5019 |
Roof Rail Module - Left - High Control |
| B |
0.5 PK |
5020 |
Roof Rail Module - Left - Low Control |
Connector Part Information
- Harness Type: Body
- OEM Connector: 12186799
- Service Connector: 15306012
- Description: 2-Way M 280 SERIES (YE)
|
Terminal Part Information
- Terminated Lead: Pending
- Release Tool: J-38125-12A
- Diagnostic Test Probe: J-35616-5 (PU)
- Terminal/Tray: 12066337/18
- Core/Insulation Crimp: E/A
|
