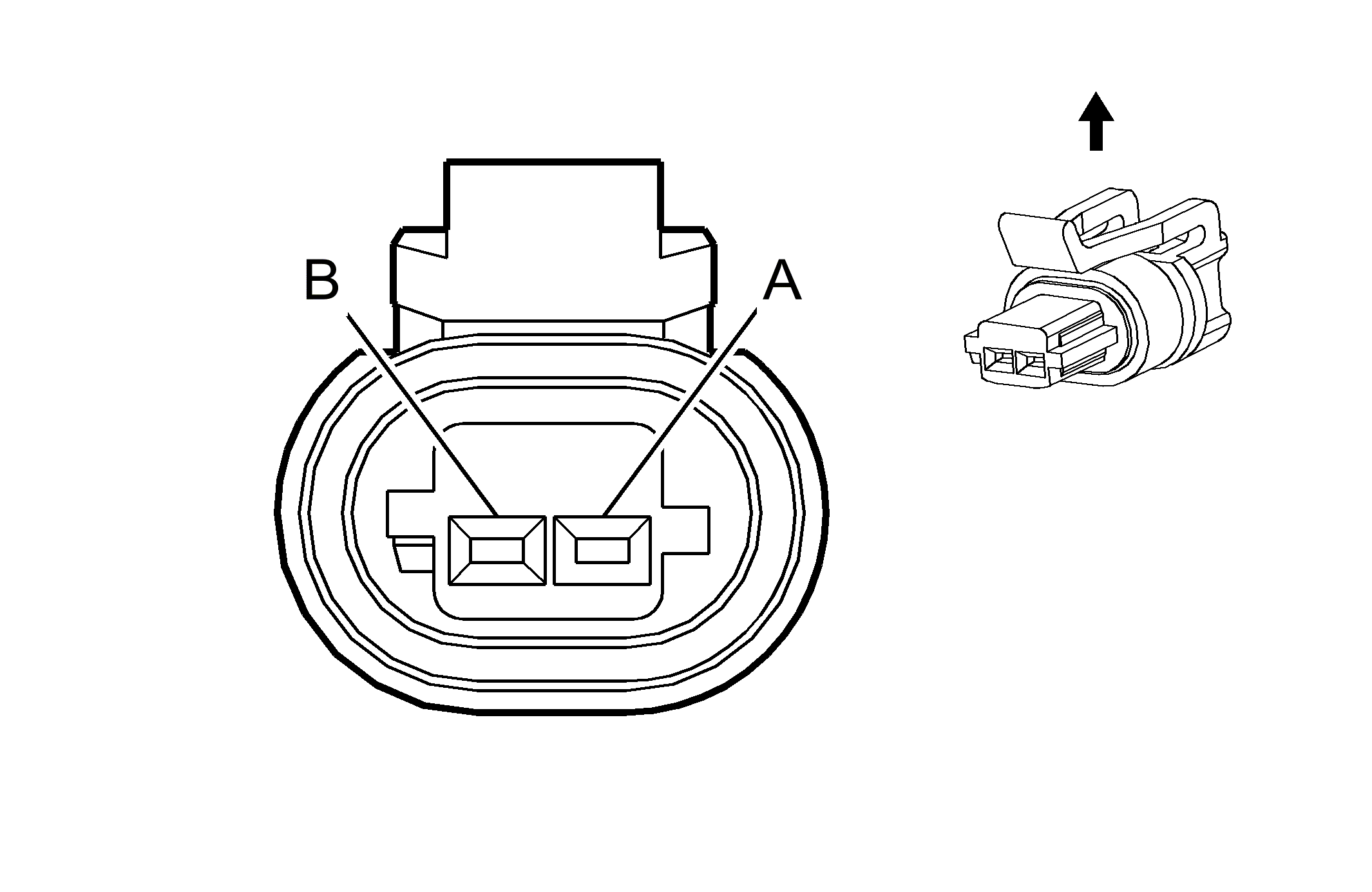

Intake Air Temperature Sensor (LSA)
Courtesy of GENERAL MOTORS CORP. Intake Air Temperature Sensor (LSA)
| Pin |
Wire |
Circuit |
Function |
| A |
0.8 L-BU |
6118 |
IAT Sensor Signal |
| B |
0.8 YE/BK |
6120 |
Low Reference |
Connector Part Information
- Harness Type: Engine
- OEM Connector: 15449027
- Service Connector: 13501880
- Description: 2-Way F GT 150 Series, Sealed (BK)
|
Terminal Part Information
- Terminated Lead: Pending
- Release Tool: J-38125-553
- Diagnostic Test Probe: J-35616-2A (GY)
- Terminal/Tray: 15326267/19
- Core/Insulation Crimp: E/1
|
