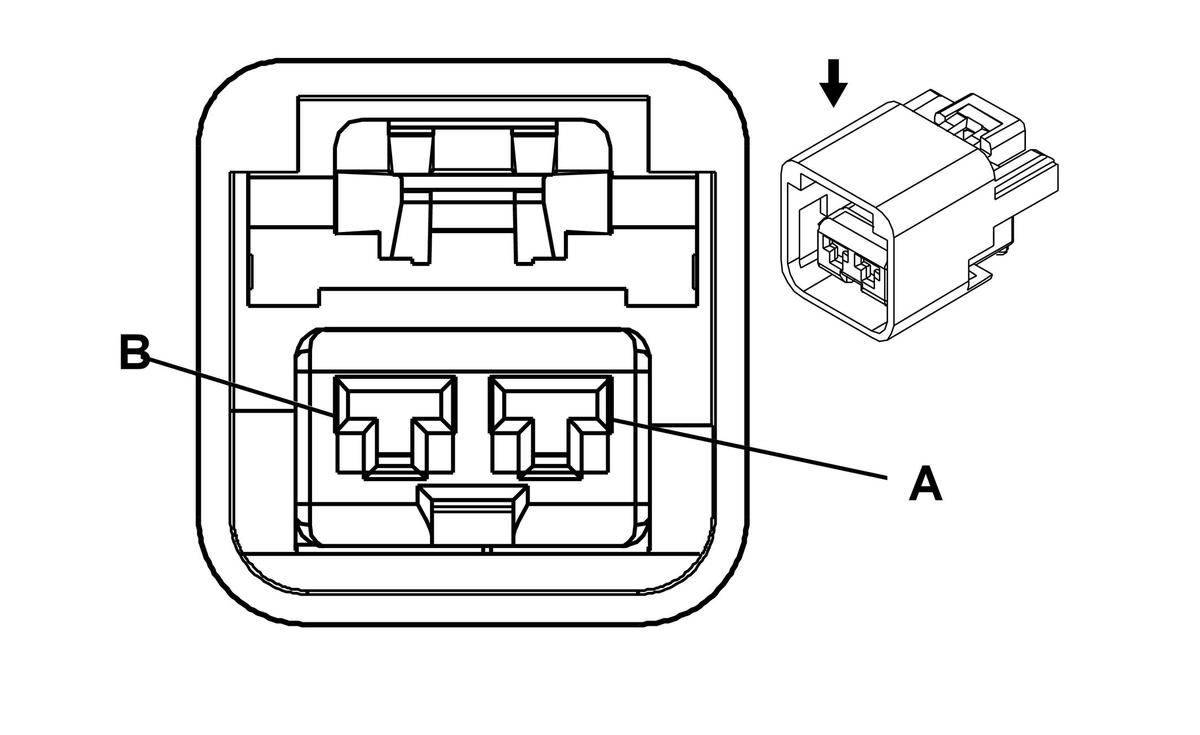

Liftgate Motor Assembly (Wagon) Connector End View
Courtesy of GENERAL MOTORS CORP. Liftgate Motor Assembly (Wagon)
| Pin |
Wire |
Circuit |
Function |
| A |
3 WH |
5798 |
Power Liftgate Motor Open Control |
| B |
3 BN/WH |
5799 |
Power Liftgate Motor Close Control |
Connector Part Information
- Harness Type: Body
- OEM Connector: 19177524
- Service Connector: 88953160
- Description: 2-Way F GT 280 Series (BK)
|
Terminal Part Information
- Terminated Lead: 13575772
- Release Tool:
- Diagnostic Test Probe:
- Terminal/Tray: Not Available
- Core/Insulation Crimp: Not Available
|
